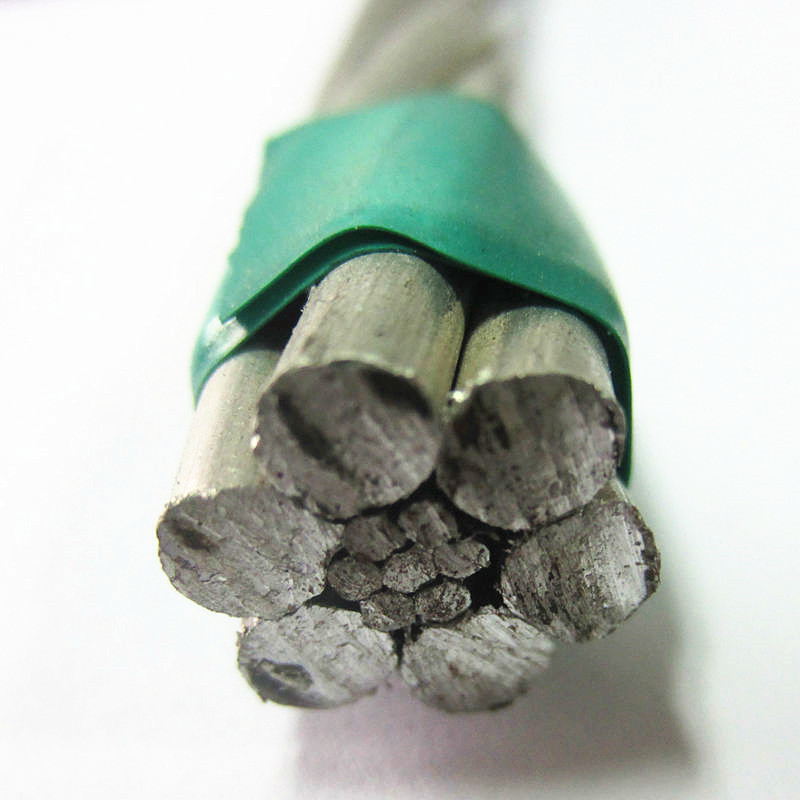

1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded

1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded

1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded
1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded
1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded
Product Details:
Place of Origin: Luoyang,China
Brand Name: SANWU
Certification: ISO
Model Number: AAAC All Aluminium Alloy Conductor
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiate
Packaging Details: Non returnable wooden / steel drums
Delivery Time: 15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: AAAC All Aluminium Alloy Conductor Application: Low Voltage Overhead Transmission Line
Certification: ISO Voltage Rates: 1kV
Standard: BS, IEC, DIN,NFC,AZS Type: Bare Conductor
High Light:

Concentric Lay Stranded Aluminium Alloy Conductor

,

1kV Aluminium Alloy Conductor

,

1kV AAAC All Aluminium Alloy Conductor

1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded



All-Aluminum Alloy Conductors (AAAC) are widely utilized in HV substations and bare overhead distribution and transmission lines (ranging from 11 kV to 800 kV) for both primary and secondary transmission. Because it resists corrosion, it can even be used in heavily industrialized and coastal locations that are extremely polluted.



ELECTRICAL PROPERTIES of 2/0 AWG All aluminium alloy conductor

Density@20ºC 2.70 kg/dm
Temperature Coefficient@20°C 0.00360 (°C)
Resistivity@20°C 0.0326 Ohms mm2 /m
Linear Expansivity 23 x10-6 (°C)



SERVICE CONDITIONS of 2/0 AWG All aluminium alloy conductor

Ambient Temperature -5°C - 50°C
Wind Pressure 80 – 130kg/m2
Seismic Acceleration 0.12 - 0.05g
Isokeraunic Level 10 – 18
Relative Humidity 5 – 100%



CONSTRUCTION PARAMETERS of 2/0 AWG All aluminium alloy conductor

Nominal Area Stranding Overall Weight Rated Electrical Current
Diameter Strength Resistance Rating*
AWG&MCM mm2 No.×mm mm kg/km KN Ω/Km A
6 13.2 7/1.55 4.65 36.2 4.18 2.5361 69
4 21.1 7/1.96 5.88 57.9 6.69 1.586 93
2 33.5 7/2.47 7.41 92 10.6 0.9987 123
0 53.5 7/3.12 9.36 146.8 17 0.62592 165
2/0 67.3 7/3.50 10.5 184.8 20.4 0.49738 190
3/0 84.9 7/3.93 11.79 233 25.7 0.3945 219
4/0 107 7/4.42 13.26 294.7 32.5 0.31188 253
250 126 19/2.91 14.55 346.7 38.8 0.26509 280
300 152 19/3.19 15.95 416.7 46.6 0.22059 313
350 178 19/3.45 17.25 487.3 52 0.1886 345
400 203 19/3.69 18.45 557.5 59.5 0.16486 375
450 228 19/3.91 19.55 626 66.8 0.14683 402
500 253 19/4.12 20.6 695 74.2 0.13224 429
550 279 37/3.10 21.7 766.2 83.9 0.11995 455
600 303 37/3.23 22.61 831.9 91 0.11049 478
650 330 37/3.37 23.59 905.5 94.9 0.1015 504
700 354 37/3.49 24.43 971.2 101 0.09464 525
750 381 37/3.62 25.34 1045 109 0.08796 549
800 404 37/3.73 26.11 1109 116 0.08285 569
900 456 37/3.96 27.72 1250 131 0.07351 612
1000 508 37/4.18 29.26 1393 146 0.06597 653
1250 631 61/3.63 32.67 1732 179 0.05306 743
1500 759 61/3.98 35.82 2082 215 0.04414 827
1750 886 61/4.30 38.7 2431 251 0.03781 904

(*) Note: The values of current rating mentioned in above Table are based on wind velocity of 0.6 metre/second, solar heat radiation of 1200 watt/metre2, ambient temperature of 50° C & conductor temperature of 80°C.

1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded 0



1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded 1

Luoyang Sanwu Cable Co., Ltd., with registered capital of 100 million RMB, is a high-tech development company for scientific research, industry producing and trading , offering a diverse selection of quality wires and cables to industrial customers in 33 countries worldwide. The leading products are ACSR, overhead conductor, AAAC, AAC, power cable, BLXY, home-used wire and so on.
Sanwu cable owns variously advanced equipment and large quantities of high skilled professionals. With complete management system, advanced production process, strict testing procedure and reliable product quality, we have successively got IS09001, IS014001,OHSAS18001,TUV Certificate, CCC(China Compulsory Certification), the national industrial production license and so on.
In terms of quality, It is highly controlled by our company to ensure that all the products we sell meet your requirements and give you reassurance with excellent after-sale service.In terms of service, we are focusing on your need, we concern what you concern and request what you request to provide a more satisfied service.

1kV AAAC All Aluminium Alloy Conductor Concentric Lay Stranded 2





FAQ:

Q: Are you trading company or manufacturer ?
A: We have our own factory and trading company, our factory have more than 10 years production experience.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 15-20 days if the goods are not in stock, and it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.L/C is also available.

Q:Have you ever supplied cables to our country ?

A: Cables have been supplied to many countries across the world such as USA, Australia, Switzerland, Singapore, Sri Lanka, the Philippines, Mongolia, UAE, Yemen, Iran, Iraq, Nigeria, Egypt, Lesotho, Cameroon, etc.
