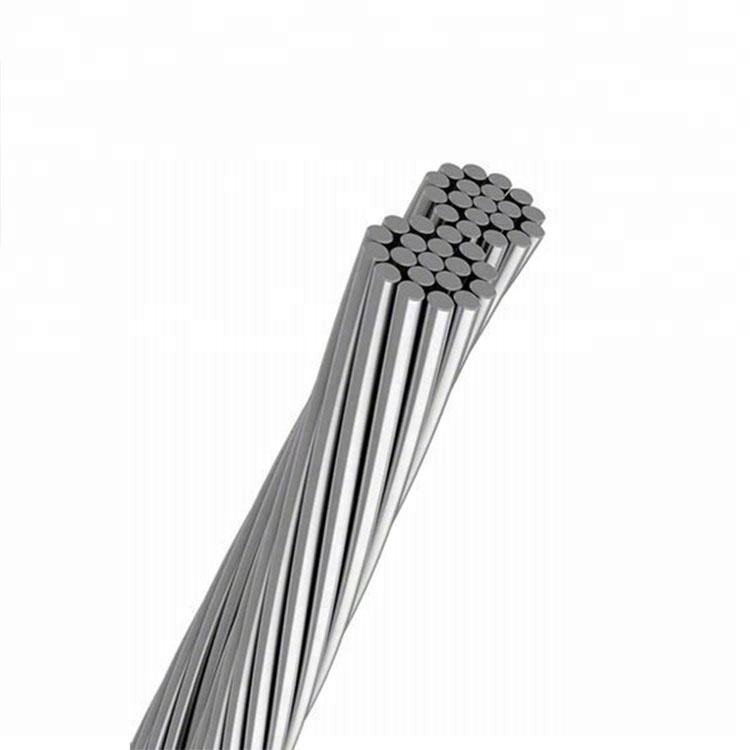

ACSR Aluminium Conductor Cable Overhead Power Transmission And Distribution

ACSR Aluminium Conductor Cable Overhead Power Transmission And Distribution

ACSR Aluminium Conductor Cable Overhead Power Transmission And Distribution
ACSR Aluminium Conductor Cable Overhead Power Transmission And Distribution
ACSR Aluminium Conductor Cable Overhead Power Transmission And Distribution
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ACSR Aluminium Conductor Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiate
Packaging Details: wooden drums
Delivery Time: 1-15days
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: ACSR Aluminium Conductor Cable Material: Stainless Steel,aluminum Wire Rod
Color: Bare, Black Or OEM Application: OverheadOverhead Power Transmission And Distribution
Origin: Henan China Type: ACSR
High Light:

ACSR Aluminium Conductor Cable

,

Distribution Aluminium Conductor Cable

,

Overhead Aluminium Conductor Cable

ACSR Aluminium Conductor Cable Overhead Power Transmission And Distribution



Applications

  • Overhead Transmission Lines: Suitable for medium and high voltage transmission lines, where mechanical strength and electrical conductivity are required.
  • Distribution Networks: Commonly used in urban, suburban, and rural power distribution networks.
  • River Crossings and Long Spans: Ideal for installations requiring long spans, such as river crossings or hilly terrain.



Code

Name

Stranding &Wire Diameter

Overall

Diameter

Sectional

Area

Weight

Breaking

Load

DC Resistance at 20℃

Current

Rating

Aluminum Steel
No./mm No./mm mm mm2 kg/km kN Ω/Km A
Turkey 6/1.68 1/1.68 5.04 13.3 53.8 5.4 2.157 105
Swan 6/2.12 1/2.12 6.36 21.18 85.7 8.4 1.356 140
Swanate 7/1.96 1/2.61 6.53 21.12 99.8 10.7 1.356 140
Sparrow 6/2.67 1/2.67 8.01 33.59 136.0 12.9 0.853 184
Raven 6/3.37 1/3.37 10.11 53.52 216.6 19.8 0.5364 242
Quail 6/3.78 1/3.78 11.34 67.32 272.6 23.7 0.4255 276
Penguin 6/4.77 1/4.77 14.31 107.2 434.0 37.7 0.2676 357
Linnet 26/2.89 7/2.25 18.31 170.55 689.6 65 0.1699 529
Hawk 26/3.44 7/2.67 21.77 241.65 975.2 89.7 0.1199 659
Dove 26/3.72 7/2.89 23.55 282.59 1141 103.1 0.1028 726
Grosbeak 26/3.97 7/3.09 25.15 321.84 1301.1 115.5 0.8989 789
Condor 54/3.08 7/3.08 27.72 402.33 1520.9 127 0.07192 889
Rail 45/3.7 7/2.47 29.61 483.84 1600.4 114.8 0.05994 993
Finch 54/3.65 19/2.19 32.85 565.03 2124.7 177.7 0.05161 1093





Construction
Aluminum alloy 1350-H-19 wires, concentrically stranded about a steel core. Core wire for ACSR is available with class A, B, or C galvanizing; ""aluminized"" aluminum coated (AZ); Or aluminum-clad (AW). Additional corrosion protection is available through the application of grease to the corer or infusion of the complete cable with grease.



Specifications
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR)
B-341 Aluminum-clad Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AW)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)

Notes
Resistance is calculated using ASTM standard increments of stranding and metal conductivity of 61.2% IACS for EC (1350) and 8% IACS for steel. AC (60Hz) resistance includes current dependent hysteresis loss factor for 1 and 3 layer constructions.
Current ratings are based on 75oC conductor temperature, 25oC ambient, 2ft/s wind, 96/watts/sq. Ft sun, 0.5 coefficients of emissivity and absorption.

Code Words

Grouse, Petrel, Minorca, Guinea, Dorking, Cochin, Dotterel, Leghorn, Egret, Redwing, Mallard, Finch, Grackle, Pheasant, Martin, Falcon, Chukar, Ruddy, Canary, Bluebird, Turkey, Swan, Sparrow, Robin, Raven, Quail, Pigeon, Penguin, Swanate, Sparate, Waxwing, Merlin, Chickadee, Pelican, Osprey, Kingbird, Swift, Coot, Brant, Flicker, Parakeet, Peacock, Rook, Flamingo, Stilt, Partridge, Ostrich, Linnet, Ibis, Hawk, Dove, Squab, Grosbeak, Gannet, Starling, Drake, Oriole, Lark, Hen, Eagle, Wood Duck, Scoter, Tern, Rail, Ortolan, Bluejay, Bunting, Bittern, Bobolink, Lapwing, Condor, Cardinal, Curlew, Kiwi, Teal, Dipper.

Conductor

Aluminium cable steel reinforced (LGJ) ACSR for power transmission line

Steel Core

Galvanized steel (Zinc coated) wire, solid or concentric stranded

Application

Used as bare overhead transmission and as primary and secondary distribution cable. ACSR offers optimal strength for line design. Variable steel core stranding enables desired strength to be achieved without sacrificing ampacity.

Installation

It is recommended that the installation instructions indicated by the Local Electric Code, or any equivalent, be followed, so that the safeguarding of persons and the integrity of the product will not be affected by deficiencies in the installation.
