Low Voltage Duplex Service Drop Cable For Power Transmission

Low Voltage Duplex Service Drop Cable For Power Transmission

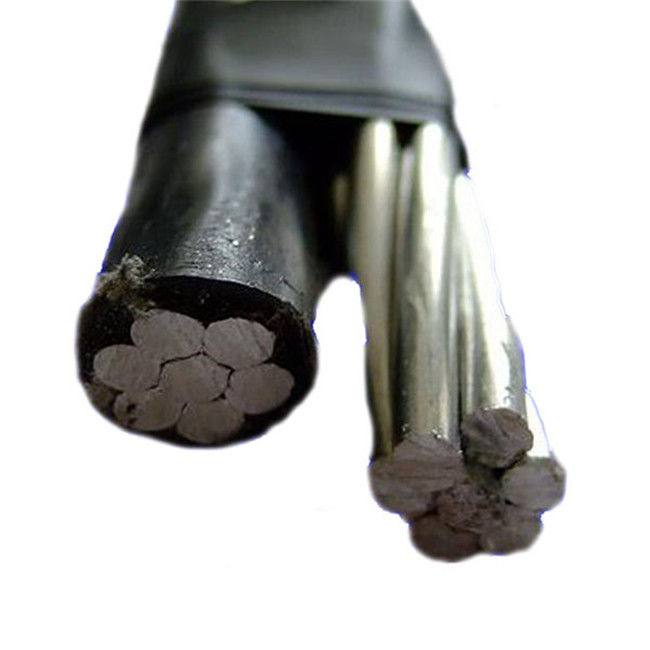

Duplex service drop cable is a type of electrical cable commonly used to deliver power from utility poles to residential buildings, particularly for overhead service connections. It consists of two conductors: one insulated phase conductor and one bare neutral conductor. Here are the key aspects of duplex service drop cables:

Components and Structure

1. Phase Conductor:

   • Material: Typically aluminum, which is lightweight and cost-effective.
   • Insulation: Covered with cross-linked polyethylene (XLPE) or polyethylene (PE) insulation for protection against weather and mechanical damage.

2. Neutral Conductor:

   • Material: Often aluminum, sometimes reinforced with a steel core to provide additional strength and support.
   • Bare: The neutral conductor is typically uninsulated and serves both as the electrical neutral and as the mechanical support for the assembly.

3. Configuration:

   • The phase conductor and the neutral conductor are twisted together, forming a duplex configuration that is compact and easy to handle.

Advantages

1. Cost-Effective: Aluminum conductors are less expensive and lighter than copper, making duplex service drop cables economical for utility companies.
2. Lightweight: Easier to install and requires less robust supporting structures compared to heavier copper cables.
3. Durability: Insulated phase conductor provides protection against environmental factors such as UV radiation, moisture, and abrasion.
4. Simplicity: The duplex design simplifies installation and maintenance.

Applications

• Residential Service Drops: Primarily used to provide electrical service from the utility pole to individual residential buildings.
• Short-Distance Power Distribution: Suitable for short-distance overhead power distribution in both urban and rural settings.

Specifications

• Voltage Ratings: Generally used for low voltage applications, typically around 600 volts.
• Sizes: Available in various sizes to match different electrical load requirements. Sizes are usually specified by the cross-sectional area of the conductors (e.g., 6 AWG, 4 AWG).

Luoyang Sanwu Cable CO.,Ltd was established in September 2016 ,with registered capital of 5 million RMB and more than 200 employees.Sanwu is a wire and cable manufacturing enterprise integrating with R&D, production and sales. The transportation of manufacturing base is convenient ,which is located in Yichuan Country Industrial Zone, adjacent to the Luoyang southwest highway ,Zhengzhou-Shaolinsi-Luoyang high way .

The company has obtained national product safety certification, 3C certification, 3 system certification, German TUV certification and international standard product mark certification, etc. Now Sanwu has three production workshops and more than 40 production lines. We mainly produce and manage electric round aluminum rods, overhead wires, power cables, wires and cables for electrical equipment, and special cables. Sanwu products are widely used in electric power, transportation, new energy, petroleum and petrochemical, national defense, and urban construction. In addition, Leading products overhead conductors are sold well and trusted by users all over the world .

The company is committed to "all for customer satisfaction," giving full play to the advantages of talent, technology and equipment, emphasising on quality, price and service, and striving to establish national cable brand, to achieve the leap-forward development of enterprises.
