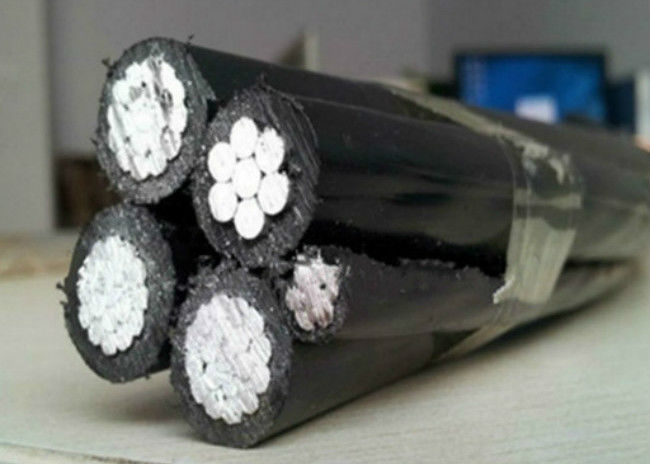

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting

  • Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting
Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: Aerial Bundled Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.2-20 per meter
Packaging Details: wooden drums
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Type: Aerial Bundled Cable Insulation: XLPE
Rated Voltage: 0.6-1kv Other Name: ABC Conductor
Service Life: 70 Years Color: Black
Sheath: PVC
High Light:

Multi Core Aerial Bundled Cable

,

Public Lighting Aerial Bundled Cable

,

ABC Conductor Aerial Bundled Cable

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting



Applications

  • Urban Areas: Ideal for dense urban settings where space constraints and safety are major concerns.

  • Rural Areas: Effective in rural or forested areas where vegetation management is challenging.

  • Temporary Installations: Useful for temporary power supply setups due to their ease of installation and removal.

Advantages

In comparison to bare overhead distribution lines, AB Cables have very high reliability during the services. As the power and neutral conductors are insulated with the best dielectric material, resulting in the following advantages:

    Less fault rate on account of good protection against line and ground fault by high winds or falling trees or birds especially in hilly areas &              forests as encountered in Rural distribution networks

   High Insulation resistance to earth in all polluted atmosphere. Negligible currents and low losses



Standard

     NFC 33209 IEC ASTM

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting 0

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting 1



SPEC



mm2

Conductor structure



Insulation



Material



Insulation

thickness (mm)



Approx overall

Diameter(mm)



Approx weight



(kg/km)

Phase (compacted A)





Phase (compacted Al)

Neutral (alloy)

No./mm

No./mm

1*16+1*16

7/1.72

7/1.72

XLPE

Or

1.2

12.5

110.1

1*25+1*25

7/2.15

7/2.15

1.2

14.9

163.9

1*35+1*35

7/2.54

7/2.54

PVC

or

PE

1.4

17.5

229.0

1*50+1*50

7/2.92

7/2.92

1.4

20.1

300.0

1*70+1*70

19/2.15

19/2.15

1.4

23.6

423.2

1*95+1*95

19/2.54

19/2.54

1.6

27.6

585.4

2*16+1*16

7/1.72

7/1.72

1.2

14.2

175.8

2*25+1*25

7/2.15

7/2.15

1.2

16.7

258.4

2*35+1*35

7/2.54

7/2.54

1.4

19.7

361.2

2*50+1*50

7/2.92

7/2.92

1.4

22.5

472.1

2*70+1*70

19/2.15

19/2.15

1.4

26.1

658.3

2*95+1*95

19/2.54

19/2.54

1.6

30.5

908.2

3*16+1*16

7/1.72

7/1.72

1.2

16.3

241.5

3*25+1*25

7/2.15

7/2.15

1.2

19.1

353.6

3*35+1*35

7/2.54

7/2.54

1.4

22.5

493.5

3*50+1*50

7/2.92

7/2.92

1.4

25.7

644.1

3*70+1*70

19/2.15

19/2.15

1.4

29.7

895.2

3*95+1*95

19/2.54

19/2.54

1.6

34.6

1233.5



















Producing Proces

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting 2

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting 3

Packaging & Delivery

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting 4

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.

Multi Core Aerial Bundled Cable ABC Conductor With Public Lighting 5
