LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACSR conductor |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiate |

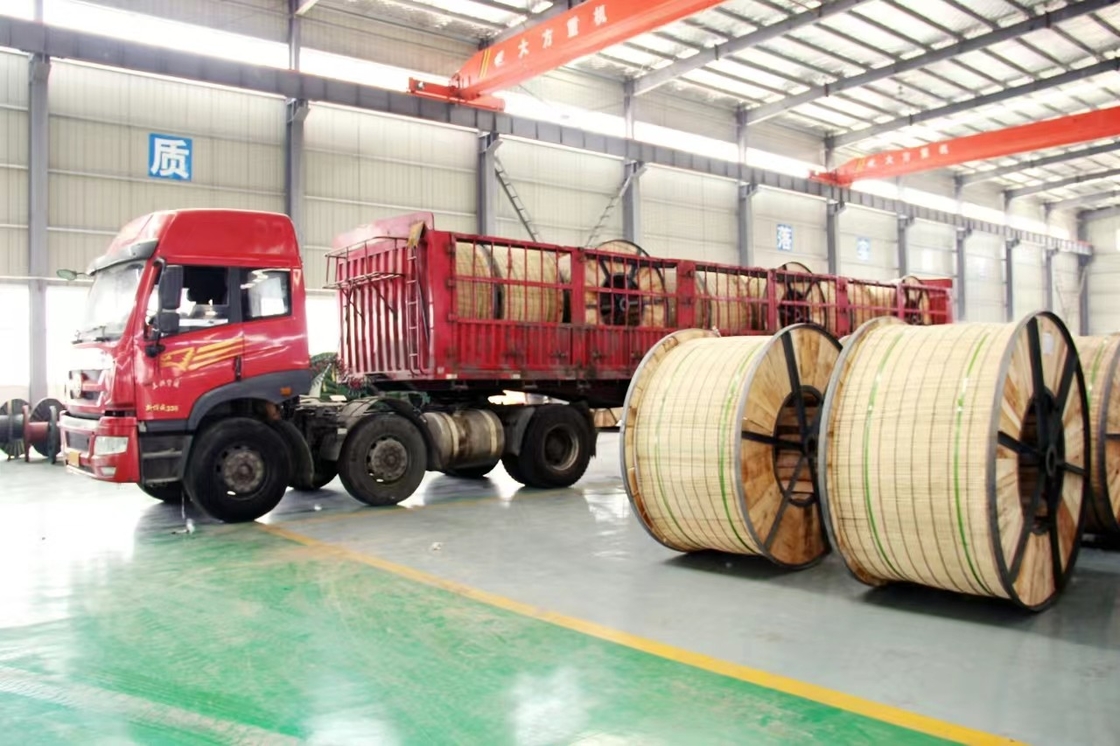

| Packaging Details: | wooden drum |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |
| Name: | Aluminum Conductor Steel Reinforced ACSR | Conductor: | Aluminum Steel |
|---|---|---|---|
| Insulation: | Bare Conductor | Valtage: | 0.6/1 Kv |
| Application: | Overhead | Size: | ACSR |
| High Light: | ACSR Aluminium Conductor Cable,Steel Reinforced Aluminium Conductor Cable,Bare Aluminium Conductor Cable |
||
Bare Aluminum Conductor Cable Aluminum Conductor Steel Reinforced ACSR
Aluminum Conductor Steel Reinforced ACSR is used as bare overhead transmission cable and as primary and secondary distribution cable. This wire is suitable for use in all practical spans on wood poles, transmission towers, and other structures. Applications range from long, extra high voltage (EHV) transmission lines to sub-service spans at distribution or utilization voltages on private premises. ACSR offers optimal strength for line design. Variable steel core stranding for desired strength to be achieved without sacrificing ampacity.
Specifications:
ACSR bare conductor meets or exceeds the following ASTM specifications:
B-230 Aluminum Wire, 1350-H19 for Electrical Purposes
B-231 Aluminum Conductors, Concentric-Lay-Stranded
B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced
(ACSR)
B-341 Aluminum-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-498 Zinc-Coated Steel Core Wire for Aluminum Conductors, Steel Reinforced (ACSR/AZ)
B-500 Zinc Coated and Aluminum Coated Stranded Steel Core for Aluminum Conductors, Steel Reinforced (ACSR)
Material Standard:
1) The hard aluminum conductor used for AAC and ACSR conforms to the standard GB/T 17048-1997 (equivalent to IEC 60889:1987)
2) The zinc coated steel wire used for ACSR confirms to IEC 60888:1987
3) Production can be arranged according to customers' requirement such as material standard etc.
4) We can also produce products according to the Standard of BS215, ASTM B232, and DIN48204.
| ACSR ASTM Technical Datasheet | ||||||||||
| Code | Size | Section | Stranding | Diameter | Total Weight |
Rated Strength |
Maximum Resisitance @20°C |
|||
| Al | Total | Al | Steel | Cable | Steel | |||||
| AWG or MCM |
mm² | mm | mm | kg/km | kg | Ω/km | ||||
| Wren | 8 | 8.37 | 9.81 | 6×1.33 | 1×1.33 | 3.99 | 1.33 | 33.8 | 340 | 3.4017 |
| Turkey | 6 | 13.3 | 15.48 | 6×1.68 | 1×1.68 | 5.03 | 1.68 | 53.7 | 540 | 2.1135 |
| Swan | 4 | 21.15 | 24.71 | 6×2.12 | 1×2.12 | 6.35 | 2.12 | 85.4 | 846 | 1.3278 |
| Swanate | 4 | 21.15 | 26.52 | 7×1.96 | 1×2.61 | 6.53 | 2.61 | 99.7 | 1067 | 1.3133 |
| Sparrow | 2 | 33.62 | 39.23 | 6×2.67 | 1×2.67 | 8.03 | 2.67 | 136 | 1289 | 0.8343 |
| Sparate | 2 | 33.62 | 42.13 | 7×2.47 | 1×3.30 | 8.26 | 3.3 | 159 | 1650 | 0.8251 |
| Robin | 1 | 42.41 | 49.48 | 6×3.00 | 1×3.00 | 9.02 | 3 | 171 | 1612 | 0.6621 |
| Raven | 1/0 | 53.51 | 62.39 | 6×3.37 | 1×3.37 | 10.11 | 3.37 | 216 | 1987 | 0.5243 |
| Quail | 2/0 | 67.44 | 78.65 | 6×3.78 | 1×3.78 | 11.35 | 3.78 | 273 | 2401 | 0.416 |
| Pigeon | 3/0 | 85.02 | 99.23 | 6×4.25 | 1×4.25 | 12.75 | 4.25 | 344 | 3006 | 0.3304 |
| Penguin | 4/0 | 107 | 125 | 6×4.77 | 1×4.77 | 14.3 | 4.77 | 433 | 3787 | 0.2618 |
| Owl | 266.8 | 135 | 153 | 6×5.36 | 7×1.79 | 16.09 | 5.37 | 507 | 4330 | 0.2109 |
| Waxwing | 266.8 | 135 | 143 | 18×3.09 | 1×3.09 | 15.47 | 3.09 | 431 | 3117 | 0.2119 |
| Partridge | 266.8 | 135 | 157 | 26×2.57 | 7×2.00 | 16.31 | 5.98 | 547 | 5113 | 0.21 |
| Oatrich | 300 | 152 | 177 | 26×2.73 | 7×2.12 | 17.27 | 6.36 | 614 | 5755 | 0.1867 |
| Piper | 300 | 152 | 188 | 30×2.54 | 7×2.54 | 17.78 | 7.62 | 697 | 7000 | 0.1902 |
| Merlin | 336.4 | 171 | 180 | 18×3.47 | 1×3.47 | 17.37 | 3.47 | 544 | 3931 | 0.168 |
| Linnet | 336.4 | 171 | 198 | 26×2.89 | 7×2.25 | 18.31 | 6.74 | 689 | 6730 | 0.1663 |
| Oriole | 336.4 | 171 | 210 | 30×2.69 | 7×2.69 | 18.82 | 8.07 | 784 | 7865 | 0.1654 |
| Chickadee | 397.5 | 201 | 213 | 18×3.77 | 1×3.77 | 18.87 | 3.77 | 642 | 4499 | 0.1421 |
| Ibis | 397.5 | 201 | 234 | 26×3.14 | 7×2.44 | 19.89 | 7.32 | 814 | 7488 | 0.1411 |
| Lark | 397.5 | 201 | 248 | 30×2.92 | 7×2.92 | 20.47 | 8.77 | 927 | 9202 | 0.1401 |
| Pelican | 477 | 242 | 255 | 18×4.14 | 1×4.14 | 20.68 | 4.14 | 771 | 5347 | 0.1184 |
| Flicker | 477 | 242 | 273 | 24×3.58 | 7×2.39 | 21.49 | 7.16 | 914 | 7790 | 0.1178 |
| Hawk | 477 | 242 | 281 | 26×3.44 | 7×2.67 | 21.79 | 8.03 | 977 | 8880 | 0.1171 |
| Hen | 477 | 242 | 298 | 30×3.20 | 7×3.20 | 22.43 | 9.61 | 1112 | 10783 | 0.1165 |
| Heron | 500 | 253 | 312 | 30×3.28 | 7×3.28 | 22.96 | 9.84 | 1162 | 11090 | 0.1141 |
| Osprey | 556.5 | 282 | 298 | 18×4.47 | 1×4.47 | 22.33 | 4.47 | 899 | 6233 | 0.1014 |
| Parakeet | 556.5 | 282 | 319 | 24×3.87 | 7×2.58 | 23.22 | 7.73 | 1067 | 8999 | 0.101 |
| Dove | 556.5 | 282 | 328 | 26×3.72 | 7×2.89 | 23.55 | 8.66 | 1140 | 10019 | 0.1007 |
| Eagle | 556.5 | 282 | 348 | 30×3.46 | 7×3.46 | 24.21 | 10.39 | 1298 | 12606 | 0.1001 |
| Peacock | 605 | 307 | 346 | 24×4.03 | 7×2.69 | 24.21 | 8.03 | 1161 | 9771 | 0.0928 |
| Squab | 605 | 307 | 357 | 26×3.87 | 7×3.01 | 24.54 | 9.04 | 1240 | 11018 | 0.0925 |
| Teal | 605 | 307 | 376 | 30×3.61 | 19×2.16 | 25.25 | 10.82 | 1398 | 13567 | 0.0919 |
| Duck | 605 | 307 | 346 | 54×2.69 | 7×2.69 | 24.21 | 8.07 | 1158 | 10210 | 0.0944 |
| Kingbird | 636 | 322 | 340 | 18×4.78 | 1×4.78 | 23.88 | 4.78 | 1028 | 7128 | 0.0895 |
| Rook | 636 | 322 | 364 | 24×4.14 | 7×2.76 | 24.82 | 8.28 | 1219 | 10298 | 0.0883 |
| Grosbeak | 636 | 322 | 375 | 26×3.97 | 7×3.09 | 25.15 | 9.27 | 1302 | 11427 | 0.0897 |
| Egret | 636 | 322 | 396 | 30×3.70 | 19×2.22 | 25.88 | 11.1 | 1471 | 14302 | 0.0876 |
| Goose | 636 | 322 | 364 | 54×2.76 | 7×2.76 | 24.84 | 8.28 | 1218 | 10730 | 0.0898 |
| Flamingo | 666.6 | 338 | 382 | 24×4.23 | 7×2.82 | 15.4 | 8.46 | 1278 | 10751 | 0.0843 |
| Gull | 666.6 | 338 | 382 | 54×2.82 | 7×2.82 | 25.38 | 8.46 | 1276 | 11140 | 0.0587 |
| Starling | 715.5 | 363 | 422 | 26×4.21 | 7×3.28 | 26.7 | 9.83 | 1465 | 12865 | 0.0781 |
| Redwing | 715.5 | 363 | 445 | 30×3.92 | 19×2.35 | 27.46 | 11.76 | 1653 | 15649 | 0.0778 |
| Cuckoo | 795 | 403 | 455 | 24×4.62 | 7×3.08 | 27.74 | 9.25 | 1524 | 12649 | 0.0719 |
