LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan,China |
| Brand Name: | Sanwu Cable |
| Certification: | ISO SGS |
| Model Number: | ABC cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiate |
| Packaging Details: | Wooden drum, reel,or according to customers request. |
| Delivery Time: | 25days |
| Payment Terms: | T/T, L/C, |
| Supply Ability: | 200 tons per day |
| Conductor: | Auminum 1350 Conductor | Insulation: | PVC,PE,XLPE,HDPE |
|---|---|---|---|
| Application: | Overhead Transmission Line | Voltage: | 0.6/1 Kv Low Voltage |
| Name: | Overhead ABC Cable | Standard: | ASTM |
| High Light: | ABC Aluminium Conductor Cable,Overhead Aluminium Conductor Cable,Low Voltage Aluminium Conductor Cable |
||
Application
Overhead ABC Cable is Used to supply 3-phase power, usually from a pole-mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts phase-to-phase or less and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP)-insulated conductors.
| code | Rated Voltage | Type | ABC | |||||||||||
AWG or kcmil |
Structure | |||||||||||||
| Neutral Wire (ACSR) | Phase Wire | Cable | Cable | |||||||||||
| Steel | Aluminium | Conductor | Aluminium | Dia | Dia | Dia | kg/km | |||||||
| No. | Dia | No. | Dia | Dia | No. | Dia | mm | |||||||
| Morochuca | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 1 | 4.11 | 4.11 | 1.14 | 6.40 | 14.62 | 221 | |
| Chola | 3*6AWG+1*6AWG | 1 | 1.68 | 6 | 1.68 | 5.04 | 7 | 1.55 | 4.66 | 1.14 | 6.95 | 15.62 | 227 | |
| Morgan | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 1 | 5.19 | 5.19 | 1.14 | 7.48 | 17.37 | 331 | |
| Hackney | 3*4AWG+1*4AWG | 1 | 2.12 | 6 | 2.12 | 6.36 | 7 | 1.96 | 5.88 | 1.14 | 8.17 | 18.62 | 338 | |
| Palomino | 3*2AWG+1*2AWG | 1 | 2.67 | 6 | 2.67 | 8.02 | 7 | 2.47 | 7.42 | 1.14 | 9.71 | 22.41 | 511 | |
| Costena | 3*1/0AWG+1*1/0AWG | 1 | 3.37 | 6 | 3.37 | 10.11 | 19 | 1.89 | 9.47 | 1.52 | 12.52 | 28.77 | 824 | |
| Grullo | 3*2/0AWG+1*2/0AWG | 1 | 3.78 | 6 | 3.78 | 11.35 | 19 | 2.13 | 10.63 | 1.52 | 13.68 | 31.61 | 1015 | |
| Suffolk | 3*3/0AWG+1*3/0AWG | 1 | 4.25 | 6 | 4.25 | 12.74 | 19 | 2.39 | 11.94 | 1.52 | 14.99 | 34.82 | 1254 | |
| Appaloosa | 3*4/0AWG+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 2.68 | 13.40 | 1.52 | 16.45 | 38.42 | 1554 | |
| Broneo | 3*336.4+1*336.4 | 1 | 3.47 | 18 | 3.47 | 17.36 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 48.43 | 2321 | |
| Gelding | 3*336.4+1*4/0AWG | 1 | 4.77 | 6 | 4.77 | 14.31 | 19 | 3.38 | 16.90 | 2.03 | 20.96 | 46.59 | 2221 | |
Packaging & Shipping
1) Wrapped in rolls/coils/rings with Plastic film for small diameter cables like building wires.
2) Cables are normally supplied in lengths of 100 meters,500 meters and 1000 meters according to cable size.Other length could be supplied if required.

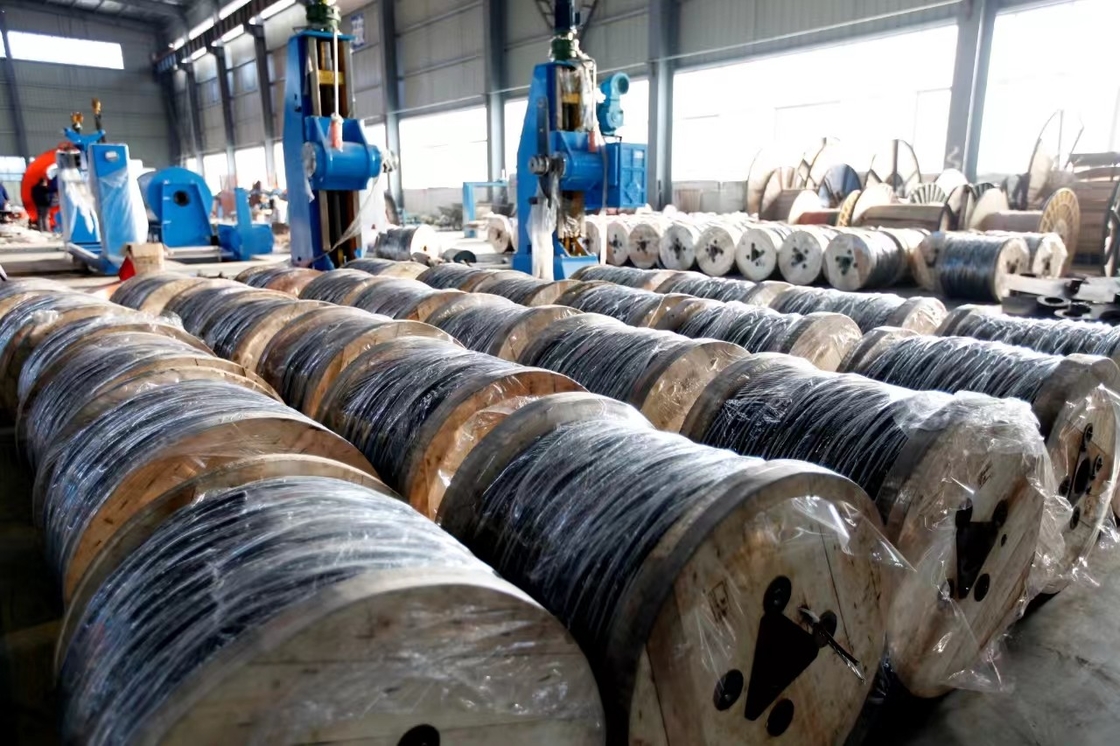

3)Treated wooden/steel-wooden drums for big diameter cables.
Welcome come our factory at any time! we trust you will like it!
Contact Person: Mandy Liu
Tel: +8613721689492
