Overhead Quadruplex Triplex Duplex Service Drop Cable ASTM Standard

Overhead Quadruplex Triplex Duplex Service Drop ASTM Standard

1. Application
This Quadruplex Triplex Duplex Service Drop is suited for use as drop cable from a pole mounted transformer to the service entrance of a structure, or as secondary distribution between poles. The cable should be limited to 600V phase to phase and not exceed 90˚C.
2. Standard
ASTM,IEC,GB,NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop


C. Quadruplex Service Drop
Application
Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

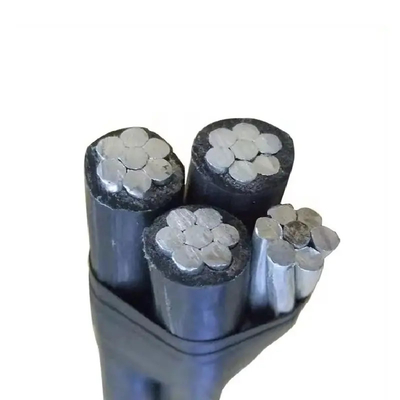

Product Pictures:

Producing Process:

More Products:

Packing & Delivery

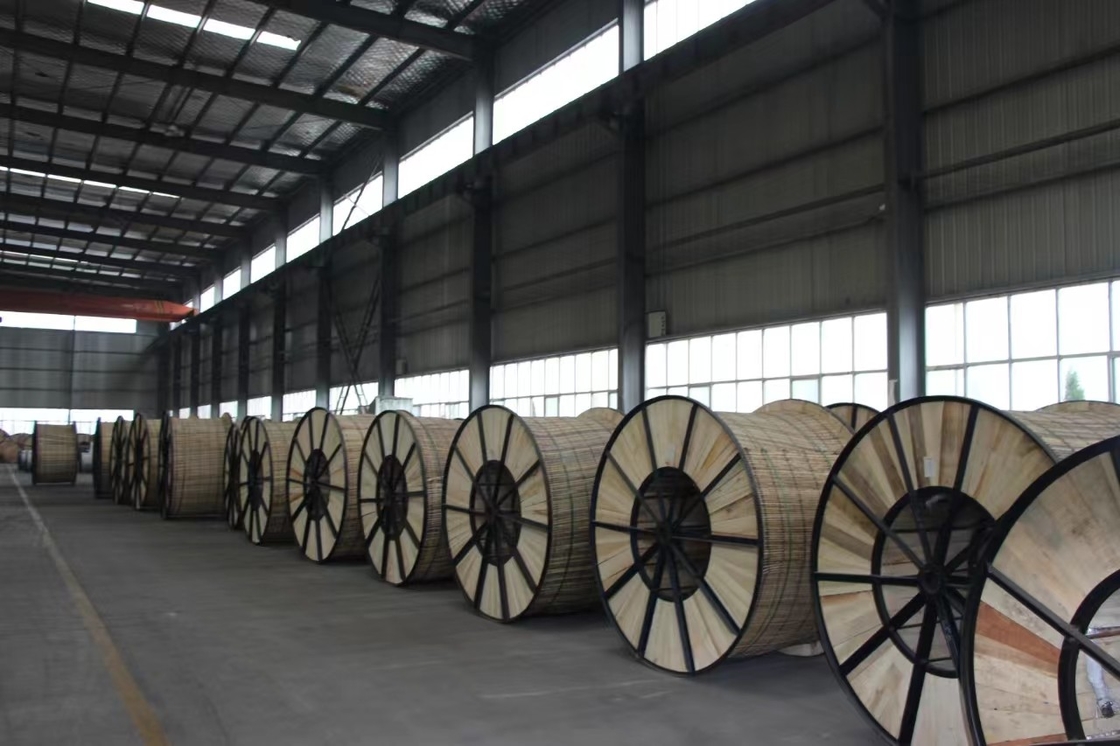

Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;
20GP, 40GP and 40HQ containers
