Place of Origin: | Henan |
Brand Name: | Sanwu |
Certification: | ISO CCC |
Model Number: | Low Voltage Aerial Bundled Cable |
Minimum Order Quantity: | 1000M |
---|---|
Price: | Negotiable |
Packaging Details: | exported wooden drum |
Delivery Time: | 1-15days |
Payment Terms: | T/T, L/C, Western Union, MoneyGram |
Supply Ability: | 200 tons per day |
Brand Name: | Sanwu | Conductor Material: | Al ,Al Alloy |
---|---|---|---|
Insulation Material: | XLPE/PE/PVC | Delivey Time: | 2-6weeks |
Delivery Port: | Qingdao | Name: | Low Voltage Aerial Bundled Cable |
Highlight: | Overhead Line Power Aerial Bundled Cable,Low Voltage Aerial Bundled Cable,Overhead Line Aerial Bundled Cable |

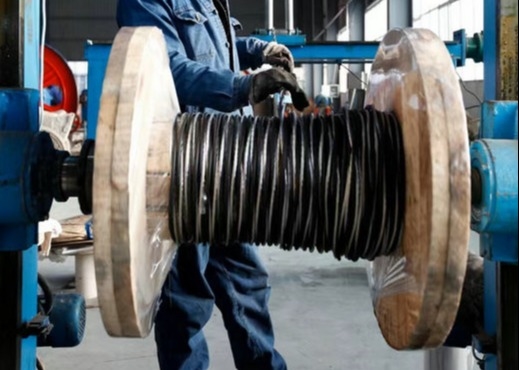

Low Voltage Aerial Bundled Cable For Overhead Line Power
Our Low Voltage Aerial Bundled Cable is manufactured in accordance with a range of national standards - British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502-1, TNB Specification, and HD 626 S1.
APPLICATION
The power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with a nominal voltage of Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 кV.
DIMENSIONS
Number of conductors and nominal cross section | Thickness of insulation M/N/R | Diamete r of bundle approx. | Allowed current in power supply networks | Allowed current in distribution networks | Аl/R | ||
Mass of Аl cores approx. | Cable weight approx. | ||||||
n х mm2 | mm | mm | А | А | kg/km | kg/km | |
walls/air/facades | |||||||
2x16 | 1.2 | 15 | - | 72 / 93 / 83 | 91 | 125 | |
2x25 | 1.4 | 18 | - | 95 / 122 / 111 | 142 | 165 | |
4x16 | 1.2 | 18 | - | 63 / 83 / 75 | 183 | 260 | |
4x25 | 1.4 | 22 | - | 83 / 111 / 99 | 285 | 395 | |
3x25+54.6Alm | 1.4/1.6 | 30 | 112 | - | 369 | 505 | |
3x25+54.6Alm+Kx16 | 1.4/1.6/1.2 | 30 | 112 / 83 | - | 460 | 635 | |
3x35+54.6Alm | 1.6/1.6 | 33 | 138 | - | 455 | 615 | |
3x35+54.6Alm+Kx16 | 1.6/1.6/1.4 | 33 | 138 / 83 | - | 546 | 745 | |
3x50+54.6Alm | 1.6/1.6 | 36 | 168 | - | 583 | 725 | |
3x50+54.6Alm+Kx16 | 1.6/1.6/1.2 | 36 | 168 / 93 | - | 674 | 860 | |
3x50+54.6Alm+Kx25 | 1.6/1.6/1.4 | 36 | 168 / 111 | - | 725 | 925 | |
3x70+54.6Alm | 1.8/1.6 | 37 | 213 | - | 754 | 950 | |
3x70+54.6Alm+Kx16 | 1.8/1.6/1.2 | 40 | 213 / 83 | - | 845 | 1080 | |
3x70+54.6Alm+Kx25 | 1.8/1.6/1.4 | 40 | 213 / 111 | - | 896 | 1150 | |
3x70+70Alm | 1.8/1.5 | 41 | 213 | - | 798 | 984 | |
3x70+70Alm+Kx16 | 1.8/1.5/1.2 | 41 | 213 / 83 | - | 889 | 1115 | |
3x70+70Alm+Kx25 | 1.8/1.5/1.4 | 41 | 213 / 111 | - | 940 | 1185 | |
3x95+54.6Alm | 1.8/1.6/ | 44 | 258 | - | 967 | 1195 | |
3x95+54.6Alm+Kx16 | 1.8/1.6/1.2 | 44 | 258 / 83 | - | 1059 | 1325 | |
3x95+54.6Alm+Kx25 | 1.8/1.6/1.4 | 44 | 258 / 111 | - | 1110 | 1355 | |
3x95+70Alm | 1.8/1.5 | 44 | 258 | - | 1011 | 1355 | |
3x95+70Alm+Kx16 | 1.8/1.5/1.2 | 44 | 258 / 83 | - | 1102 | 1615 | |
3x95+70Alm+Kx25 | 1.8/1.5/1.4 | 44 | 258 / 111 | - | 1154 | 1485 | |
3x120+70Alm | 1.8/1.5 | 46 | 300 | - | 1225 | 1445 | |
3x120+70Alm+Kx16 | 1.8/1.5/1.2 | 46 | 300 / 83 | - | 4828 | 1575 | |
3x120+70Alm+Kx25 | 1.8/1.5/1.4 | 46 | 300 /111 | - | 1368 | 1610 | |
3x120+95Alm | 1.8/1.6 | 47 | 300 | - | 1296 | 1535 | |
3x120+95Alm+Kx16 | 1.8/1.6/1.2 | 47 | 300 / 83 | - | 1387 | 1660 | |
3x120+95Alm+Kx25 | 1.8/1.6/1.4 | 47 | 300 / 111 | - | 1439 | 1735 |
