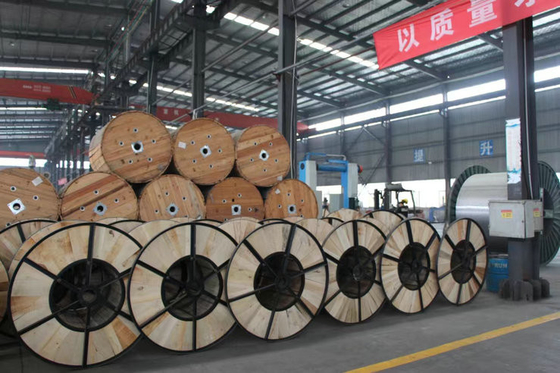

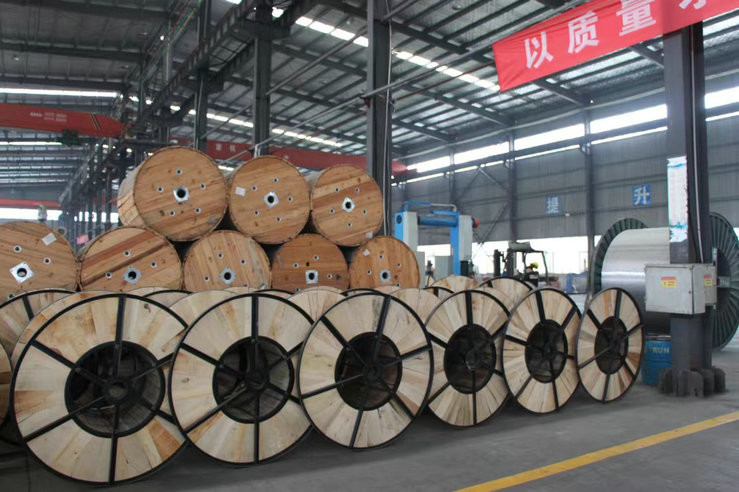

| Packaging Details: | New Wooden drum, reel, circle, or according to customers request. |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Name: | Acsr Aluminium Conductor Steel Reinforced | Original Place: | Henan, China |
|---|---|---|---|
| Application: | Overhead Lines | Manufacture: | Yes |
| Voltage: | LV / MV Voltage | Standard: | DIN48204 Standard |
| High Light: | ACSR Aluminium Conductor Steel Reinforced,ACSR For Overhead Lines,Overhead Lines Aluminium Conductor Steel Reinforced |
||
ACSR Aluminium Conductor Steel Reinforced For Overhead Lines
Applications of Aluminium Conductor Steel Reinforced
ACSR or aluminum conductor steel reinforced, is used as bare overhead transmission and as primary and secondary disribution cable. ACSR is suitable for use in all practical spans on wood poles, transmission towers, and other structures because of its dependability and strength to weight ratio.
Standards & References
Aluminium Conductor Steel Reinforced meets or exceeds the following ASTM specifications:
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Poppy | 1/0 | 7*3.12 | 147.5 | 897 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
Service Performance:
(1). The permissible long-time operating temperature for aerial conductor is 70℃.
(2). Under the circumstance that rare climate is occurring and ice coverage rate low in heavy ice area, the biggest stress of cable at the lowest point of the sag should not exceed 60% of the short-time destructive power.
(3). When connecting conductors, the conductor beside the connecting tube cant be prominent. Otherwise, the force on the operating conductors will be unbalanced. After connectors are install, the connecting tube should be painted by moisture-proof varnish in order to protect it from corrosion.
(4). Under installation, the arc downing stress of all the conductors should be the same. With in the permissible distance of crossing buildings or dropping to the ground, the stress can be 10-15% higher than regular stress.
