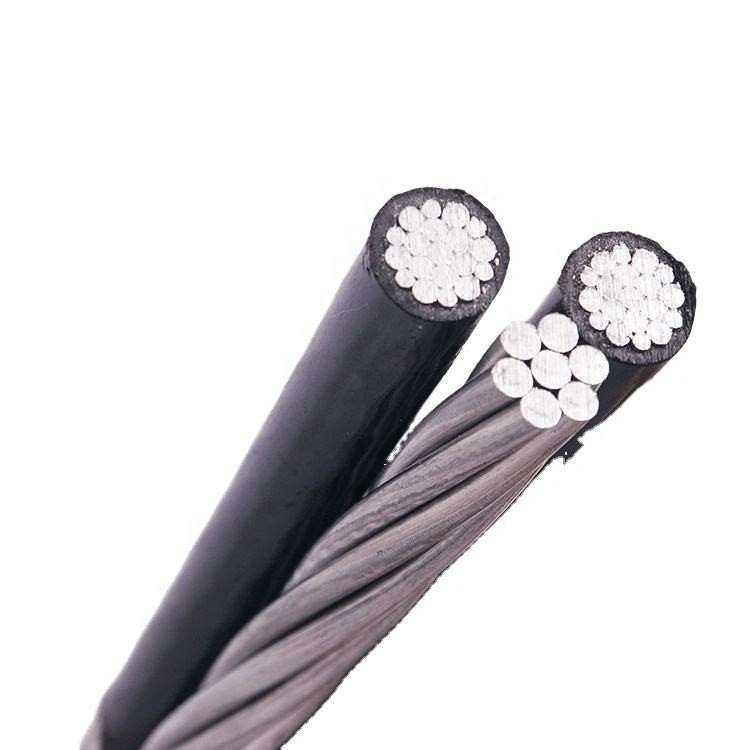

1kv 4 AWG XLPE Insulated Cable Triplex Overhead Service Drop Cable

4 AWG XLPE Insulated Cable Triplex Overhead Service Drop Cable

Distribution centers use exterior aluminum overhead cables. Through the weather head, they transport the electricity from the utility wires to the buildings. The cables also serve as service drop cables because of this specific role. There are three types of aluminum overhead cables: duplex, triplex, and quadruplex. In single-phase power lines, duplex cables are utilized, whereas in three-phase power lines, quadruplex cables are employed. Only triplex cables are utilized to deliver power to consumers from utility lines.

Soft aluminum 1350-H19 series is used to make aluminum conductor cables. Extruded thermoplastic polyethylene or cross-linked polyethylene is used as insulation to shield them from adverse outside weather conditions. The cables have a voltage rating of and an operating temperature of up to 75 degrees.

*Applications:

To supply 120 volt aerial service for temporary service at construction sites, outdoor or street lighting. For service at 600 volt
or lower at a conductor temperature of 75℃ maximum.



Nominal cross section	Neutral core			Phase core			weight (kg/km)	Allowable ampacity (A)
	AAC		LBS	AAC		Insulation thickness(mm)		XLPE	PE
	NO	diameter (mm)		NO	diameter(mm)
1*6AWG+1*6AWG	7	1.56	563	1	4.11	1.14	92	85	70
1*6AWG+1*6AWG	7	1.56	563	7	1.56	1.14	94	85	70
1*4AWG+1*4AWG	7	1.96	881	1	5.19	1.14	139	115	90
1*4AWG+1*4AWG	7	1.96	881	7	1.96	1.14	141	115	90
1*2AWG+1*2AWG	7	2.47	1350	7	2.47	1.14	216	150	120
1*1/0AWG+1*1/0AWG	7	3.12	1990	19	1.89	1.52	347	205	160

TRIPLEXSERVICEDROP-ALUMINUM CONDUCTOR:

*Applications:

To supply power from the utility's lines to the consumer's weatherhead. For service at 600 volt or less (phase to phase) at a conductor temperature of75℃ maximum for polyethylene insulation or 90℃ maximum for crosslinked insulation.



AWG or kcmil	Bare Neutral Messenger			Phase Conductor			Weight kg/km	Allowable Ampacities(A)
	AAC		Rated Strength lbs.	AAC		Insul. Thick. mm		XLPE	PE
	NO.	Dia.mm		NO.	Dia.mm
2*6AWG+1*6AWG	7	1.56	563	1	4.11	1.14	146	85	70
2*6AWG+1*6AWG	7	1.56	563	7	1.56	1.14	150	85	70
2*4AWG+1*4AWG	7	1.96	881	1	5.19	1.14	219	115	90
2*4AWG+1*4AWG	7	1.96	881	7	1.96	1.14	224	115	90
2*2AWG+1*2AWG	7	2.47	1350	7	2.47	1.14	338	150	120
2*1/0AWG+1*1/0AWG	7	3.12	1990	7	3.12	1.52	544	205	160
2*1/0AWG+1*1/0AWG	7	3.12	1990	19	1.89	1.52	545	205	160
2*2/0AWG+l*2/0AWG	7	3.5	2510	7	3.5	1.52	671	235	185
2*3/0AWG+l*3/0AWG	19	2.39	3310	19	2.39	1.52	830	275	215
2*4/0AWG+l*4/0AWG	19	3.25	4020	19	3.25	1.52	1476	315	245
2*336.4+1*336.4	19	3.38	6146	19	3.38	2.03	1649	420	325
