Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength

Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength

Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength
Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength
Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: acsr
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: New Wooden drum, reel, circle, or according to customers request
Delivery Time: 1-15days
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: Aluminium Conductor Steel Reinforced Voltage: Low Voltage
Application: Overhead Dimensions: 0.5--1000mm2
Type: MV / LV Life Span: 30 Years
Highlight:

Customizable Aluminium Conductor Steel Reinforced

,

JL/G1A-25/4 Aluminium Conductor Steel Reinforced

,

Bare Conductor Aluminium Conductor Steel Reinforced



Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength



ACSR cables typically have a conductivity of about 61% IACS (International Annealed Copper Standard), making them highly efficient for electrical transmission.
The steel core significantly enhances tensile strength, making ACSR suitable for long spans and challenging environmental conditions.
ACSR can operate effectively in a range of temperatures, often rated for continuous operation at 90°C, with short-term emergency ratings up to 150°C.



ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110



Specifications



Code Size (AWG/MCM) Number of Strands(mm) Weight(kg/km) Rated Strength(kg)
Rose 4 7*1.96 58.3 399
Iris 2 7*2.47 92.7 611
Pansy 1 7*2.78 117 740
Aster 2/0 7*3.5 186 1375



Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength 0

Technical Characteristics

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products, please leave a message, and we will immediately answer your questions.

Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength 1

Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength 2



Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

  Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength 3

Packing & Delivery:

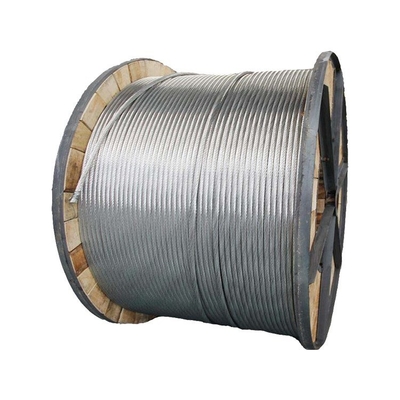

Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.
ABC Cable Aerial Bundled Cable with XLPE/PVC Insulation

More Products:
ABC Cable Aerial Bundled Cable with XLPE/PVC Insulation

Customers Visit

Aluminium Conductor Steel Reinforced JL/G1A-25/4 Bare Conductor Factory Stock Customizable High Tensile Strength 6

At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.



All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

About Us:

Sanwu Cable currently has more than 500 registered employees. Its main business is electrical manufacturing, and it also engages in domestic and foreign trade. Its leading products include electrical round aluminum rod series (ordinary rods, alloy rods, heat-resistant rods, high-conductivity rods, aluminum bars, etc.), cable series (bare wires, power cables, overhead insulated wires, etc.) and deoxidized aluminum product series (aluminum particles, aluminum blocks, aluminum wires, etc.). The industrial layout has obvious advantages, and the three series of products form a certain business support for each other.
The foreign trade market has expanded to 37 countries and regions including Chile, the Philippines, Australia, Vietnam, Singapore, South Korea, South Africa, the Dominican Republic, Colombia, Kazakhstan, and Turkmenistan, of which 15 countries including the Philippines, Singapore, Kazakhstan, and Turkmenistan are along the "Belt and Road".
