LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | Aluminum Conductor Aerial Bunched Cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | exported wooden drum |
| Delivery Time: | 1-15days |
| Payment Terms: | T/T, L/C, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Brand Name: | Sanwu | Conductor Material: | Al, Al Alloy |
|---|---|---|---|
| Insulation Material: | XLPE/PE/PVC | Delivey Time: | 2-6weeks |
| Delivery Port: | Qingdao | Name: | Aerial Bundled Cable |
| Highlight: | Overhead Twisted Aluminum Aerial ABC Cable,Twisted Aluminum Aerial ABC Cable,Aerial Bundled Electrical Cable |
||

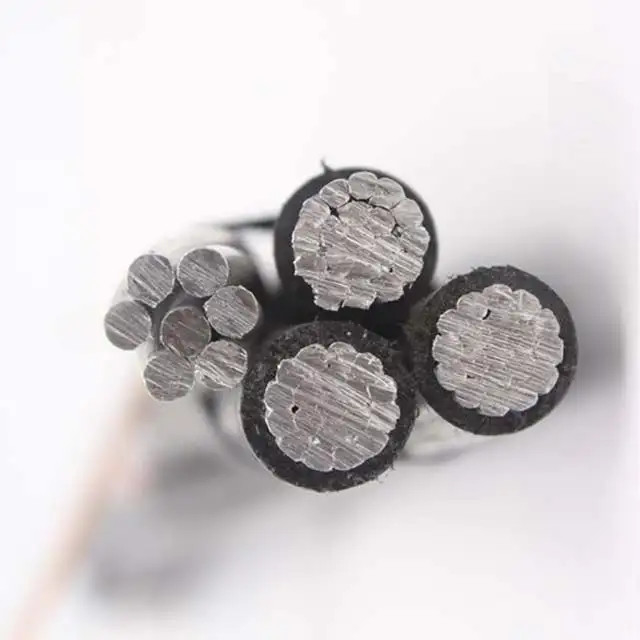

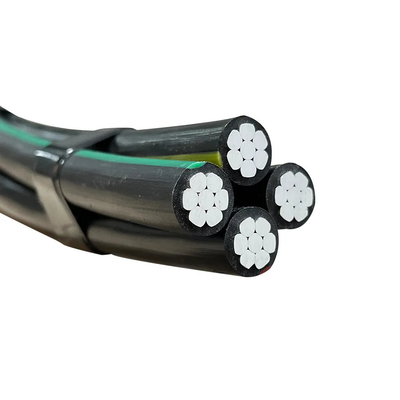

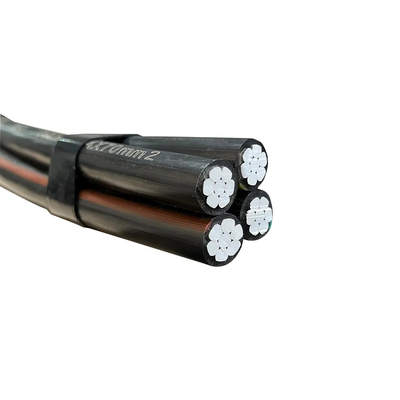

Low Voltage Aerial Bundled Cable For Overhead Line Power
Our Low Voltage Aerial Bundled Cable is manufactured in accordance with a range of national standards - British standard BS7870, French standard NF C33 209, Australasian standard AS/NZS 3560 Part 1, and IEC standards IEC 60502-1, TNB Specification, and HD 626 S1.
APPLICATION
The power cables with cross-linked polyethylene (XLPE) insulation for overhead lines are designed for electrical installations with alternating power networks with a nominal voltage of Uo/U 0.6/1 kV or in direct power networks with maximum voltage according to land 0.9 KV.
DIMENSIONS
| Number of conductors and nominal cross section | Thickness of insulation M/N/R | Diamete r of bundle approx. | Allowed current in power supply networks | Allowed current in distribution networks | Аl/R | ||
| Mass of Аl cores approx. | Cable weight approx. | ||||||
| n х mm2 | mm | mm | А | А | kg/km | kg/km | |
| walls/air/facades | |||||||
| 2x16 | 1.2 | 15 | - | 72 / 93 / 83 | 91 | 125 | |
| 2x25 | 1.4 | 18 | - | 95 / 122 / 111 | 142 | 165 | |
| 4x16 | 1.2 | 18 | - | 63 / 83 / 75 | 183 | 260 | |
| 4x25 | 1.4 | 22 | - | 83 / 111 / 99 | 285 | 395 | |
| 3x25+54.6Alm | 1.4/1.6 | 30 | 112 | - | 369 | 505 | |
| 3x25+54.6Alm+Kx16 | 1.4/1.6/1.2 | 30 | 112 / 83 | - | 460 | 635 | |
| 3x35+54.6Alm | 1.6/1.6 | 33 | 138 | - | 455 | 615 | |
| 3x35+54.6Alm+Kx16 | 1.6/1.6/1.4 | 33 | 138 / 83 | - | 546 | 745 | |
| 3x50+54.6Alm | 1.6/1.6 | 36 | 168 | - | 583 | 725 | |
| 3x50+54.6Alm+Kx16 | 1.6/1.6/1.2 | 36 | 168 / 93 | - | 674 | 860 | |
| 3x50+54.6Alm+Kx25 | 1.6/1.6/1.4 | 36 | 168 / 111 | - | 725 | 925 | |
| 3x70+54.6Alm | 1.8/1.6 | 37 | 213 | - | 754 | 950 | |
| 3x70+54.6Alm+Kx16 | 1.8/1.6/1.2 | 40 | 213 / 83 | - | 845 | 1080 | |
| 3x70+54.6Alm+Kx25 | 1.8/1.6/1.4 | 40 | 213 / 111 | - | 896 | 1150 | |
| 3x70+70Alm | 1.8/1.5 | 41 | 213 | - | 798 | 984 | |
| 3x70+70Alm+Kx16 | 1.8/1.5/1.2 | 41 | 213 / 83 | - | 889 | 1115 | |
| 3x70+70Alm+Kx25 | 1.8/1.5/1.4 | 41 | 213 / 111 | - | 940 | 1185 | |
| 3x95+54.6Alm | 1.8/1.6/ | 44 | 258 | - | 967 | 1195 | |
| 3x95+54.6Alm+Kx16 | 1.8/1.6/1.2 | 44 | 258 / 83 | - | 1059 | 1325 | |
| 3x95+54.6Alm+Kx25 | 1.8/1.6/1.4 | 44 | 258 / 111 | - | 1110 | 1355 | |
| 3x95+70Alm | 1.8/1.5 | 44 | 258 | - | 1011 | 1355 | |
| 3x95+70Alm+Kx16 | 1.8/1.5/1.2 | 44 | 258 / 83 | - | 1102 | 1615 | |
| 3x95+70Alm+Kx25 | 1.8/1.5/1.4 | 44 | 258 / 111 | - | 1154 | 1485 | |
| 3x120+70Alm | 1.8/1.5 | 46 | 300 | - | 1225 | 1445 | |
| 3x120+70Alm+Kx16 | 1.8/1.5/1.2 | 46 | 300 / 83 | - | 4828 | 1575 | |
| 3x120+70Alm+Kx25 | 1.8/1.5/1.4 | 46 | 300 /111 | - | 1368 | 1610 | |
| 3x120+95Alm | 1.8/1.6 | 47 | 300 | - | 1296 | 1535 | |
| 3x120+95Alm+Kx16 | 1.8/1.6/1.2 | 47 | 300 / 83 | - | 1387 | 1660 | |
| 3x120+95Alm+Kx25 | 1.8/1.6/1.4 | 47 | 300 / 111 | - | 1439 | 1735 | |
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
✔ Enhanced Safety – Reduced risk of electrocution and short circuits
✔ Lower Maintenance – Resistant to weather, corrosion, and wildlife interference
✔ Cost-Effective – Long lifespan with minimal repair needs
✔ Easy Installation – Lightweight and flexible for faster deployment
✔ Customizable – Available in various configurations for different applications
Whether for urban electrification, rural expansion, industrial use, or smart grid development, our ABC cables provide a reliable, efficient, and safe power distribution solution. Contact us today to find the perfect ABC system for your project!
