LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | Overhead insulated cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |

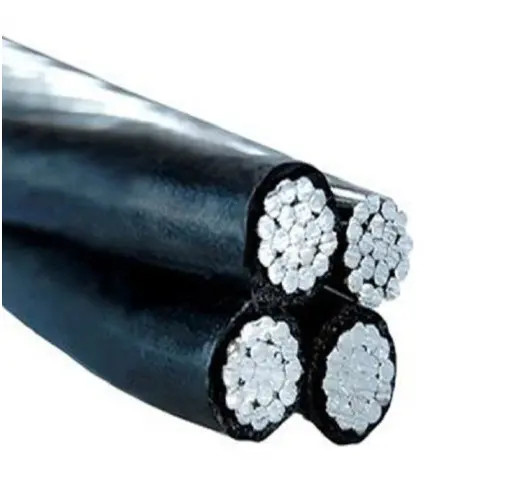

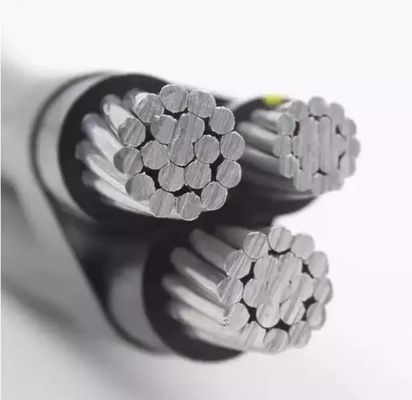

| Name: | Overhead Insulated Cable | Insulation: | XLPE |
|---|---|---|---|
| Rated Voltage: | 0.6-1kv | Size: | 3*16 3*25 |
| Core: | 1 Core | Color: | Black |
| Other Name: | Aerial Power Cable | ||
| Highlight: | 1-Core Overhead Power Cable,10KV Overhead Power Cable,Copper Conductor Overhead Power Cable |
||
Our cables are designed for reliable overhead power distribution with superior weather resistance. The insulated conductors prevent short circuits, reducing maintenance costs. Ideal for rural electrification and urban networks, these cables offer excellent UV protection and durability. With low installation costs and long service life, they ensure safe, uninterrupted power delivery even in harsh environments.
In comparison to bare overhead distribution lines, AB Cables have very high reliability during the services. As the power and neutral conductors are insulated with the best dielectric material, resulting in the following advantages:
|
SPEC
mm2 |
Conductor structure |
Insulation
Material |
Insulation thickness (mm) |
Approx overall Diameter(mm) |
Approx weight
(kg/km) |
||
|
Phase (compacted A)
Phase (compacted Al) |
Neutral (alloy) | ||||||
| No./mm | No./mm | ||||||
| 1*16+1*16 | 7/1.72 | 7/1.72 |
XLPE Or |
1.2 | 12.5 | 110.1 | |
| 1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | ||
| 1*35+1*35 | 7/2.54 | 7/2.54 |
PVC or PE |
1.4 | 17.5 | 229.0 | |
| 1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | ||
| 1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | ||
| 1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | ||
| 2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | ||
| 2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | ||
| 2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | ||
| 2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | ||
| 2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | ||
| 2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | ||
| 3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | ||
| 3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | ||
| 3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | ||
| 3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | ||
| 3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | ||
| 3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | ||
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
Join the growing number of utilities and contractors who trust our aerial bundled cables for their most critical projects. Our reputation stems from uncompromising quality control, innovative design approaches, and exceptional customer support. Each cable undergoes rigorous testing for electrical, mechanical, and environmental performance before leaving our facility.
Our technical support team provides comprehensive assistance from system design through installation. With decades of experience in overhead power distribution solutions, we understand the real-world challenges you face and engineer our ABC products to solve them. The reliable, long-lasting performance that exceeds expectations.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
