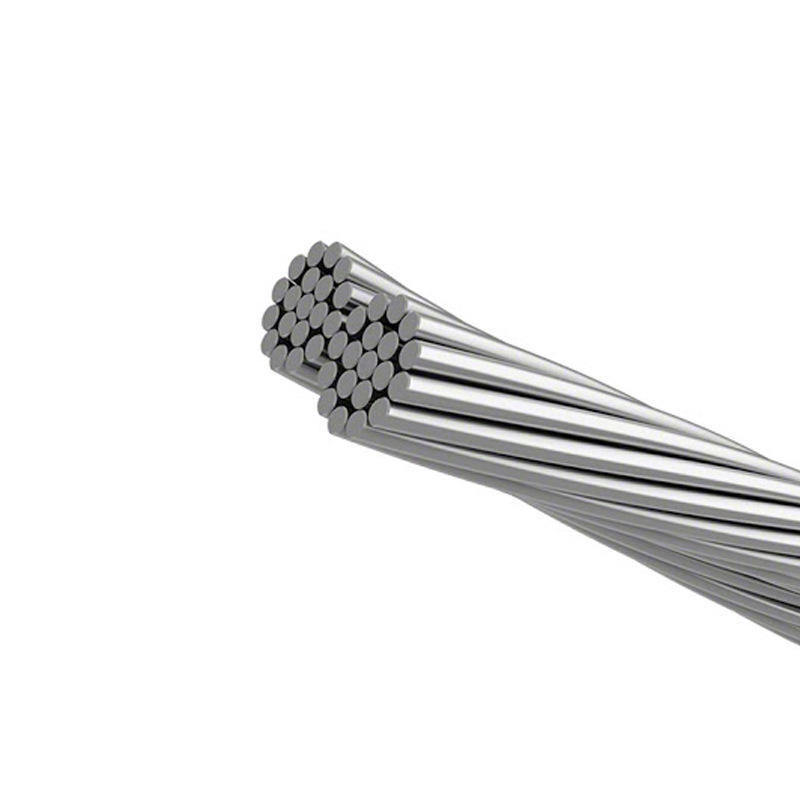

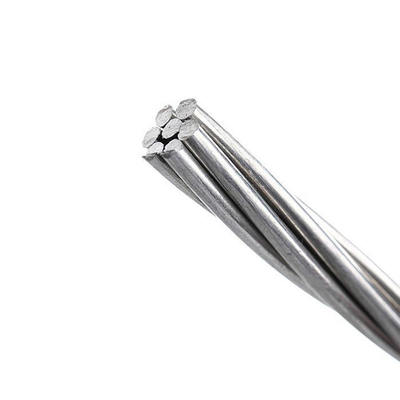

Good Electrical Conductivity Aluminium Conductor Steel Reinforced ACSR JKLYJ For Electricity And Transmission Lines

Good Electrical Conductivity Aluminium Conductor Steel Reinforced ACSR JKLYJ For Electricity And Transmission Lines

Aluminium Conductor Steel Reinforced(ACSR), It has a steel "core" inside and is wrapped around the steel core with aluminum wire twisted together on the outside; Steel core mainly serves to increase strength, while aluminum stranded wire mainly serves to transmit electrical energy. ACSR has the characteristics of simple structure, easy installation and maintenance, low line cost, large transmission capacity, and is conducive to laying in special geographical conditions such as crossing rivers and valleys. It has good conductivity and sufficient mechanical strength, high tensile strength, and the tower distance can be enlarged. Therefore, it is widely used in overhead transmission and distribution lines of various voltage levels.

ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110

Specifications

Technical Characteristics

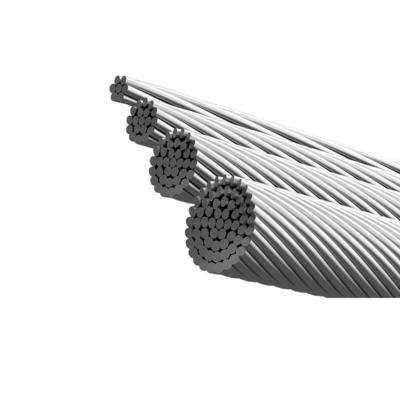

ACSR is a composite concentric-lay-stranded conductor. Galvanized steel strand or strands form the central core of the conductor,around which is stranded one or more layers of EC Grade Aluminum wires. The steel core may consist of a single strand or a concentricstranded cable of 7, 19, 37, or more wires. Numerous combinations of aluminum and steel strands and layers are possible. If you haveany suggestions or opinions about our products, please leave a message, and we will immediately answer your questions.

Applications
Conductor(AAC and ACSR) have been widely used in power transmission lines with various voltage levels, because they have such good characteristics as simple structure, convenient installation and maintenance, low cost large transmission capacity. And they are also suitable for laying across rivers valleys and the places where special geographical features exist.

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.
