ACSR AAC AAAC AWG BS ASTM Standard Aluminum Alloy Conductor High Low Voltage Power Transmission Line Conductor Manufacturer

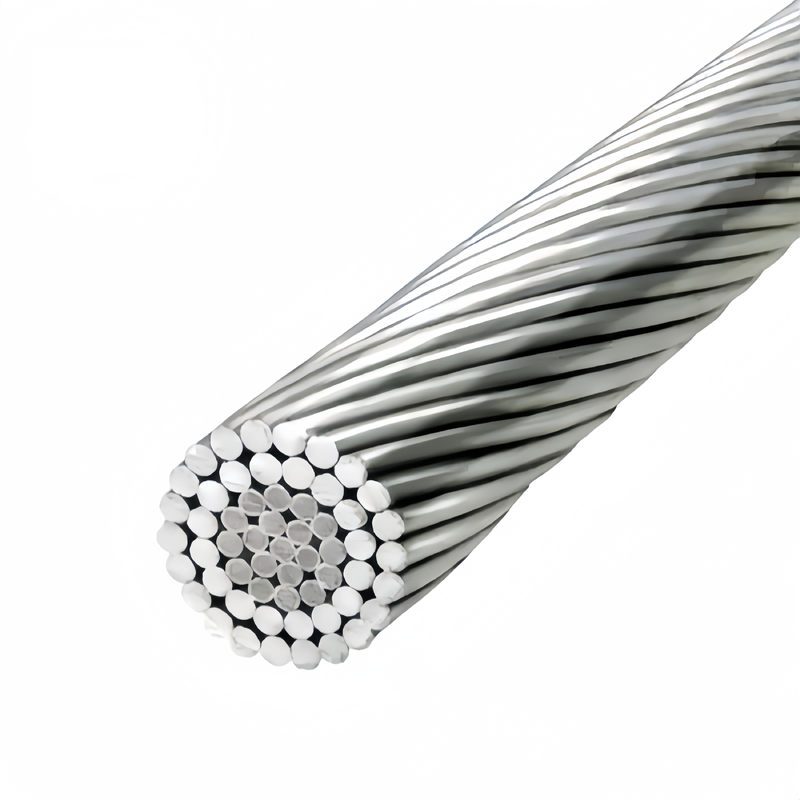

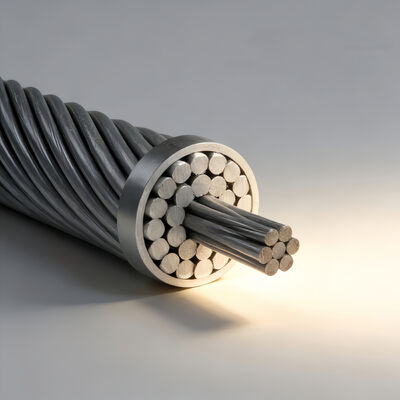

This manufacturer supplies a comprehensive range of aluminum alloy overhead conductors, including AAC (All Aluminium Conductor), AAAC (All Aluminium Alloy Conductor), and ACSR (Aluminium Conductor Steel Reinforced), designed for both high-voltage and low-voltage power transmission and distribution systems.AAC conductors are manufactured from EC-grade aluminium 1350-H19 wires, while AAAC conductors use aluminium-magnesium-silicon alloy wires (6201-T81) that offer increased tensile strength. ACSR conductors combine outer aluminium strands with a steel core for enhanced mechanical reinforcement. Each conductor type is available in a range of stranding configurations and is supplied in bare form for overhead installation on utility poles and transmission towers.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

1. Conductor Type Selection – The product range includes AAC for standard conductivity, AAAC for higher strength-to-weight ratio, and ACSR for maximum tensile reinforcement, enabling selection based on span length and loading conditions.
2. Standard-Compliant Construction – Conductors are manufactured to ASTM B231 (AAC), ASTM B399 (AAAC), ASTM B232 (ACSR), and BS 215, with stranding configurations and dimensional characteristics conforming to the applicable standard requirements.
3. Voltage Range Flexibility – The conductor range supports both high-voltage transmission lines and low-voltage distribution networks, with conductor selection based on current-carrying capacity and mechanical load requirements.
4. Bare Overhead Configuration – All conductors are supplied in bare form, suitable for direct installation on insulators and support structures in outdoor overhead environments.

Applications:

Producing Process:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

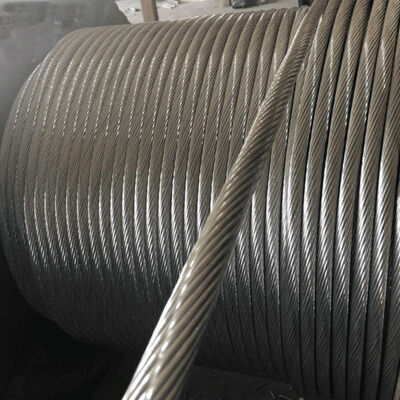

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
