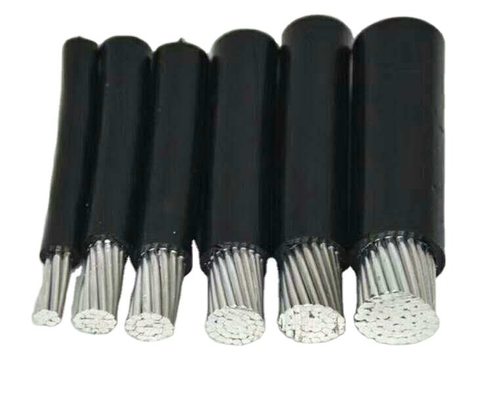

Twisted Aluminum Twist Service Drop Electric Pvc/Xlpe Insulated Overhead Cables Specification Low Aluminum Cable

This twisted aluminum service drop cable is engineered for low voltage overhead distribution, featuring compacted aluminium conductors insulated with either PVC or XLPE and twisted together to form a compact, self‑supporting assembly. The insulation layer provides electrical protection and weather resistance, while the twisted configuration maintains consistent phase spacing without requiring separate spacers. The aluminium conductor offers a favourable balance of conductivity and weight, simplifying handling during stringing and reducing mechanical load on pole attachments. Designed for service drop applications, this cable connects utility poles to residential, commercial, or light industrial buildings, delivering reliable power at low voltage levels.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction

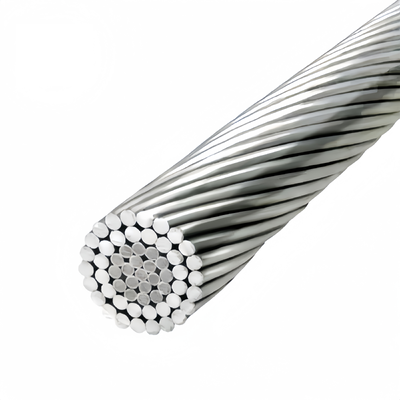

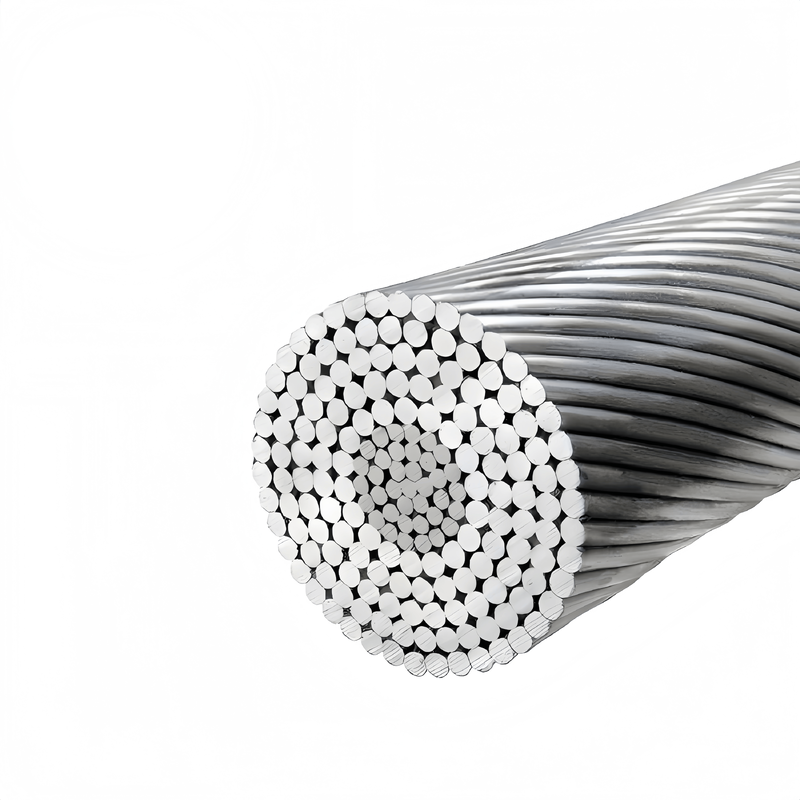

    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

• Twisted Compact Assembly – Multiple insulated conductors are helically stranded together, maintaining constant phase separation and preventing conductor clashing under wind or ice conditions, which reduces fault risks.
• Aluminium Conductor Lightweight – The use of aluminium as the conductive core minimises overall cable weight, easing installation and reducing the structural demand on support poles and building attachment points.
• Insulation Material Options – Available with PVC insulation for general outdoor service or XLPE insulation for enhanced thermal stability and moisture resistance, allowing selection based on environmental conditions and service life requirements.
• Weather‑Resistant Construction – The insulation compounds are formulated with UV stabilisers and moisture‑resistant additives, supporting long‑term exposure to sunlight, rain, and temperature variations encountered in overhead installations.
• Simplified Termination and Jointing – The uniform outer profile and standard insulation thickness facilitate the use of conventional service drop connectors and compression fittings, reducing field installation time.

Applications:

Producing Process:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
