Aluminum Conductor All Aluminium Conductor Overhead Aluminium Conductor Aerial Aluminium Conductor AWG\ASTM\BS Standard

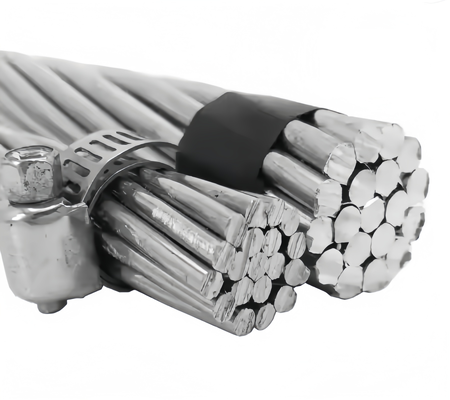

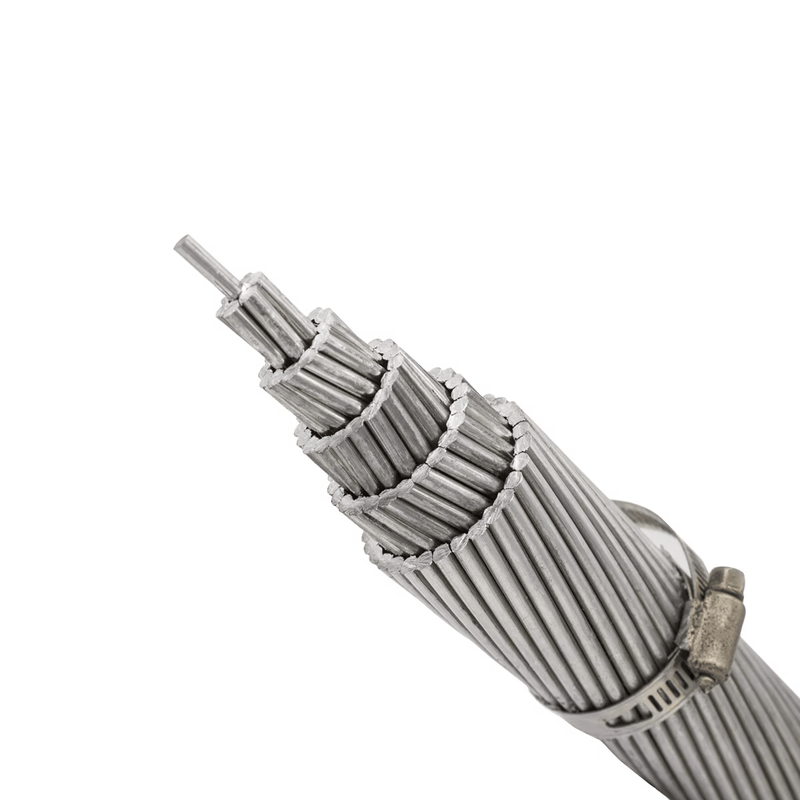

This All Aluminium Conductor (AAC) is manufactured as a bare overhead conductor for power transmission and distribution networks, consisting of concentrically stranded aluminium 1350-H19 wires. The conductor is produced in accordance with AWG sizing, ASTM B231, and BS 215-1 standards, ensuring compatibility with international overhead line design practices. The aluminium strands are compacted to form a smooth outer surface, which reduces wind resistance and corona effects during operation. AAC conductors are supplied in a range of stranding configurations and conductor sizes, suitable for short to medium span overhead installations where mechanical loading is moderate. The conductor's lightweight construction simplifies handling and stringing, while the bare aluminium surface provides adequate corrosion resistance for outdoor exposure.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

• Concentric-Stranded Construction – The conductor is formed from multiple aluminium wires stranded in concentric layers around a central wire, providing uniform electrical and mechanical performance across the conductor cross-section.
• Lightweight Aluminium Design – The use of aluminium as the sole conductive material reduces overall conductor weight, easing handling, stringing, and reducing mechanical load on support structures.
• Smooth Compacted Surface – The outer strands are compacted during manufacturing to produce a uniform surface finish, which reduces wind-induced vibration and aerodynamic drag during service.
• Multiple Standard Compliance – Manufactured to ASTM B231, BS 215-1, and AWG sizing, ensuring dimensional consistency and electrical performance meeting international overhead line requirements.
• Corrosion-Resistant Bare Surface – The aluminium alloy naturally forms an oxide layer that provides protection against atmospheric corrosion in most outdoor environments, eliminating the need for additional coating.

Applications:

Producing Process:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
