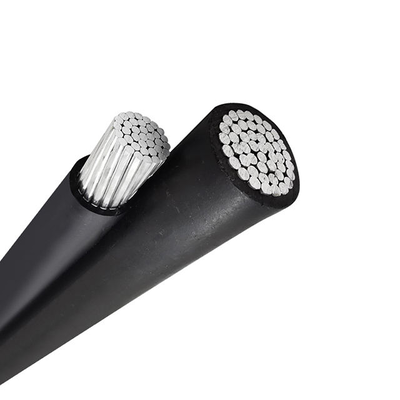

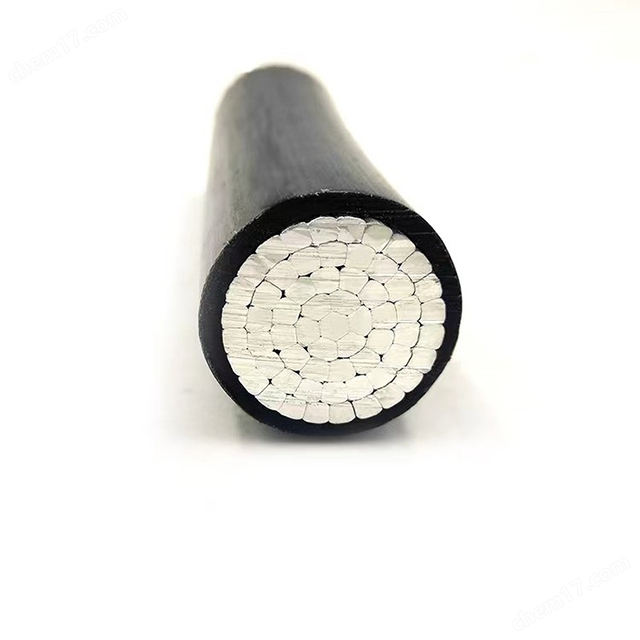

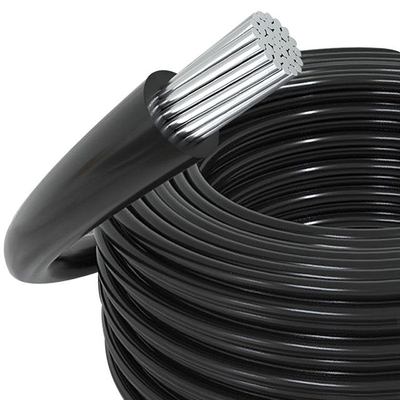

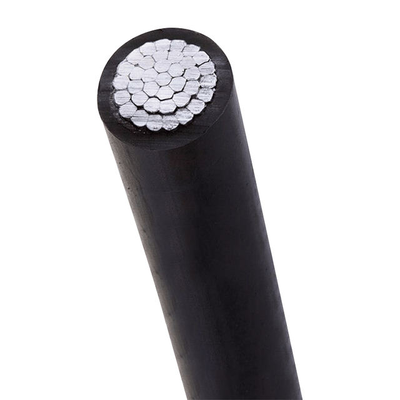

Overhead Insulated Cable 10kV XLPE 50mm² 70mm² 95mm² 120mm² 150-300mm² Cable Aluminium Conductor Cable

This 10kV XLPE insulated overhead cable is designed for medium voltage power distribution, featuring an aluminium conductor rated for fixed overhead installation on utility poles and transmission towers. The conductor is manufactured from high‑purity aluminium strands, compacted to form a smooth round core, and covered with a cross‑linked polyethylene (XLPE) insulation layer that provides electrical insulation and mechanical protection. The XLPE compound is formulated with UV stabilisers and weathering additives, ensuring long‑term resistance to sunlight, moisture, and temperature variations encountered in outdoor overhead environments. The cable is available in a range of cross‑sectional sizes from 50mm² to 300mm², allowing selection based on current capacity and voltage drop requirements for 10kV lines. This cable is suitable for primary and secondary distribution feeders in urban, suburban, and rural networks, as well as for substation outgoing connections.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

• XLPE Insulation with Thermal Stability – The cross‑linked polyethylene insulation offers enhanced thermal endurance compared to PVC, supporting stable electrical performance under continuous loading and transient overload conditions.

• Aluminium Conductor Lightweight Construction – The use of aluminium reduces overall cable weight, easing handling and stringing operations, and reducing mechanical load on pole structures and hardware.

• Weather‑Resistant Outer Surface – The insulation material includes additives that resist degradation from UV radiation, moisture ingress, and atmospheric pollutants, supporting long‑term outdoor service without protective jacketing.

• Compacted Stranded Conductor – The aluminium strands are compacted to eliminate inter‑strand gaps, providing a uniform conductor surface that facilitates consistent insulation application and reduces electrical stress concentrations.

• Standardised Dimensional Profile – The cable is manufactured with controlled outer diameter and concentricity, enabling the use of standard overhead line fittings, connectors, and termination kits.

Applications:

Producing Process:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
