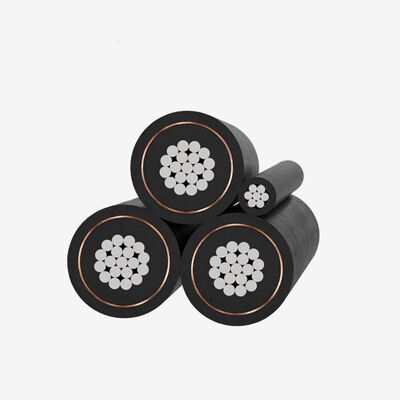

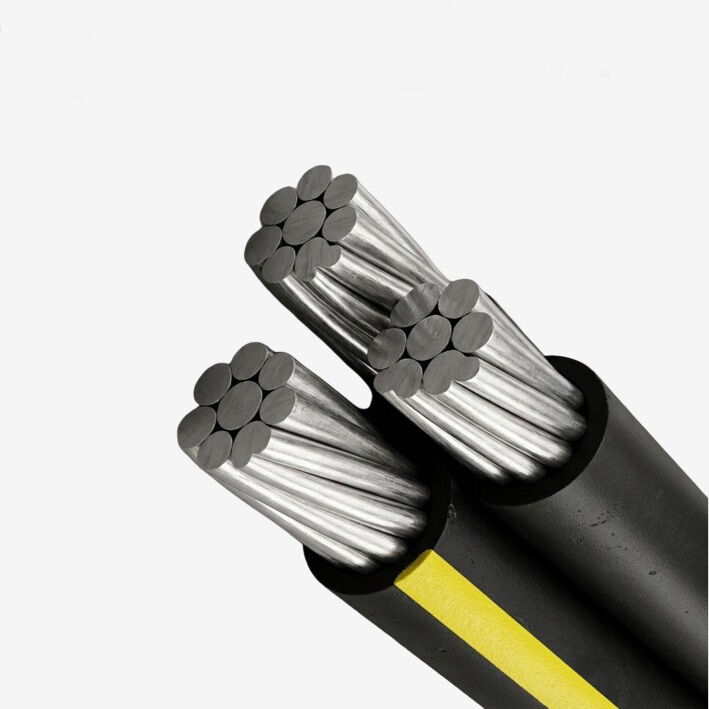

4X50m㎡ 4X95m㎡Aluminum Conductor Cable XLPE/PVC/PE Insulated ABC Cable AAC AAAC 0.6/1kv Standard Aerial Bundled Conductor

This aerial bundled cable (ABC) is manufactured with aluminium conductors insulated with XLPE, PVC, or PE, designed for low‑voltage overhead distribution at 0.6/1kV. The conductor material is available as AAC (All Aluminium Conductor) or AAAC (All Aluminium Alloy Conductor), allowing selection based on mechanical strength and conductivity requirements. Insulation options include XLPE for high thermal endurance, PVC for general‑purpose cost‑effectiveness, or PE for moisture‑resistant applications. The bundled construction eliminates the need for separate phase spacers and reduces installation time, making it suitable for urban and rural overhead networks.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

• Multi‑Insulation Material Options – The cable is available with XLPE insulation for enhanced thermal stability, PVC for economical general service, or PE for lightweight moisture resistance, allowing selection based on project requirements.

• AAC or AAAC Conductor Choice – Offered with either AAC (electrical grade aluminium) or AAAC (aluminium‑magnesium‑silicon alloy) conductors, enabling selection based on required tensile strength and span length.

• Bundled Four‑Core Configuration – Four insulated conductors (three phases and one neutral) are stranded together, maintaining consistent phase spacing and eliminating the need for separate spacers or cross‑arms.

• 0.6/1kV Voltage Rating – Designed for low‑voltage distribution networks, compatible with standard transformers, cut‑outs, and service connection hardware.

• Weather‑Resistant Insulation Compounds – All insulation materials incorporate UV stabilisers and moisture‑resistant additives, supporting long‑term outdoor exposure on overhead pole lines.

Applications:

Producing Process:

Packing & Delivery:

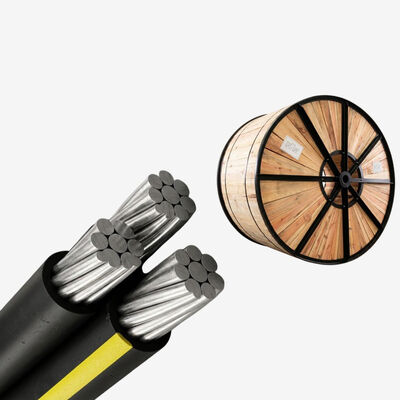

Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
