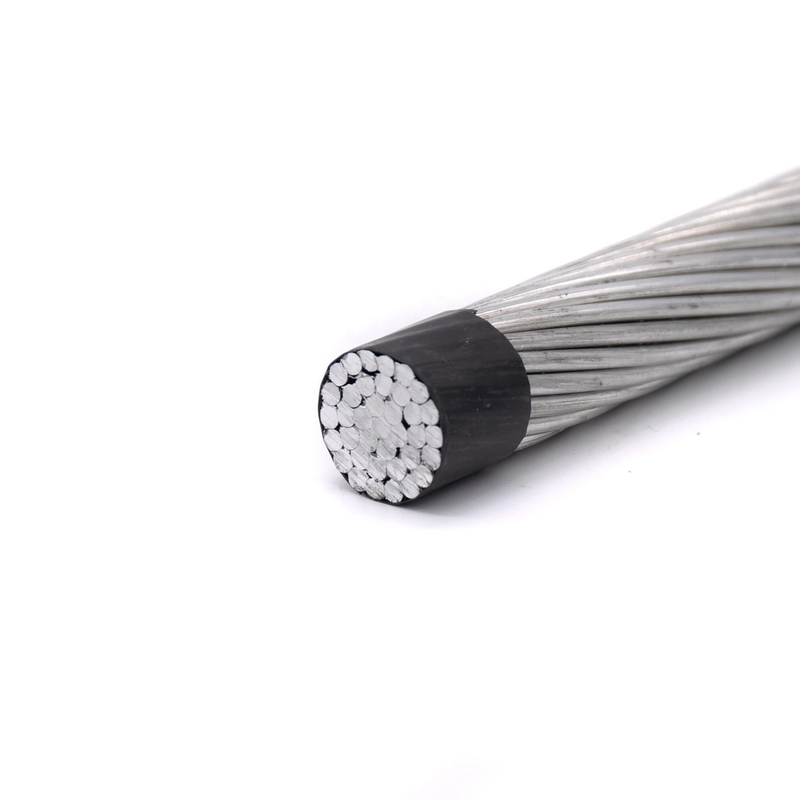

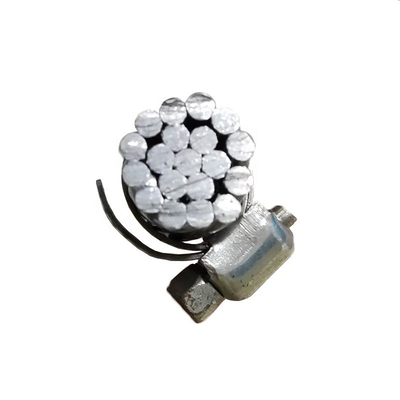

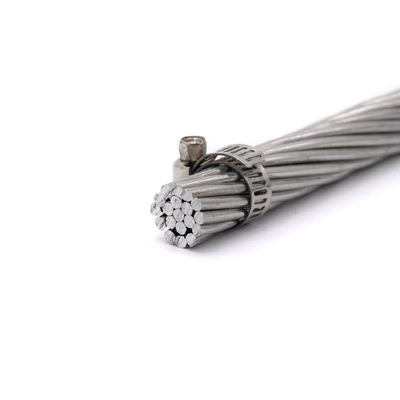

6mm 10mm 16mm 25mm 70 mm 240mm2 Aluminum Stranded Conductor Wire Cable ACAR AAC

This range of aluminum stranded conductors is available in ACAR (Aluminum Conductor Aluminum Reinforced) and AAC (All Aluminum Conductor) constructions, covering cross‑sectional sizes from 6mm² to 240mm². The conductors are manufactured from EC‑grade aluminum (AAC) or aluminum‑magnesium‑silicon alloy (ACAR), with stranded layers applied around a central core wire. ACAR conductors combine the high conductivity of aluminum with the mechanical strength of aluminum‑magnesium alloy reinforcement, while AAC conductors provide a lightweight solution for short to medium span overhead lines. The conductors are supplied in bare form for overhead installation, with stranding configurations conforming to recognized international standards. The size range supports both light‑duty service drops and medium‑duty primary feeders.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

• Comprehensive Size Range – Available from 6mm² for light service connections to 240mm² for main distribution feeders, accommodating varying current and span requirements.
• Stranded Construction – Multiple aluminum or alloy wires are stranded in concentric layers, providing flexibility for handling and installation while maintaining uniform current distribution.
• Standardized Strating – Stranding configurations and conductor diameters conform to recognized overhead conductor specifications, ensuring compatibility with standard fittings and connectors.
• Bare Overhead Design – Supplied without insulation, suitable for direct installation on insulators and support structures in outdoor overhead environments.

Applications:

Producing Process:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
