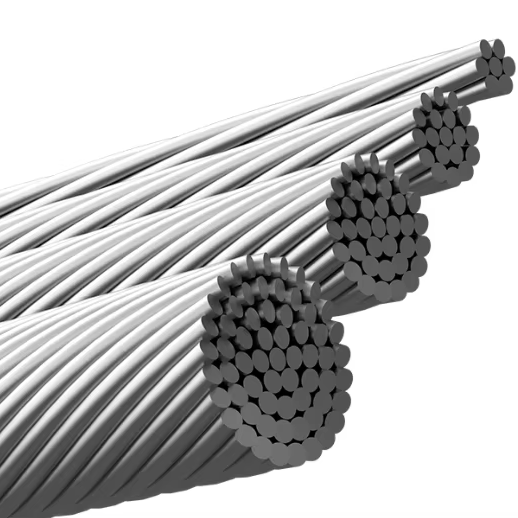

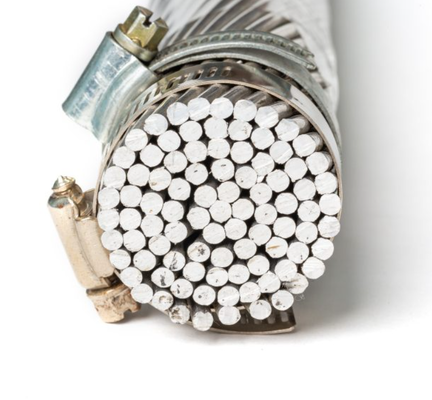

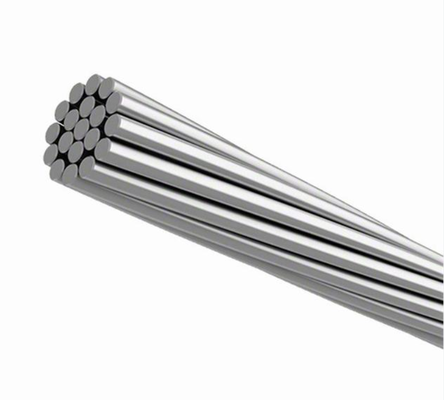

Aluminum Conductor Cable 1120 AAC AAAC ACSR ACAR ACCC All Aluminium Conductor Alloy Overhead Bare Conductor

This comprehensive range of aluminum overhead conductors includes AAC (All Aluminium Conductor), AAAC (All Aluminium Alloy Conductor), ACSR (Aluminium Conductor Steel Reinforced), ACAR (Aluminium Conductor Aluminium Reinforced), and ACCC (Aluminium Conductor Composite Core) types, covering the full spectrum of bare conductor requirements for overhead transmission and distribution networks. All conductors are supplied in bare form for installation on insulators and support structures, with conductor sizes and stranding configurations conforming to applicable international standards. This product range enables selection based on span length, mechanical loading, and current‑carrying requirements.

Standard
ASTM, IEC, GB, NFC 33-209

A: Duplex Service Drop

B.Triplex Service Drop

C. Quadruplex Service Drop
    Used to supply 3 phase power, usually from a pole- mounted transformer, to the user's service head where connection to the service entrance cable is made. To be used at voltages of 600 volts or less phase to phase and at conductor temperatures not to exceed 75°C for polyethylene insulated conductors or 90°C for crosslinked polyethylene (XLP) insulated conductors.
Construction
    Conductors are concentrically stranded, compressed 1350-H19 aluminum. Insulated with either polyethylene or XLP crosslinked polyethylene. Neutral messengers are concentrically stranded AAC/AAAC/ACSR. One conductor is manufactured with an extruded ridge for phase identification.

Features:

• Comprehensive Conductor Selection – The range includes AAC for standard distribution, AAAC for higher strength‑to‑weight ratio, ACSR for maximum tensile reinforcement, ACAR for balanced conductivity and strength, and ACCC for advanced core technology with non‑corrosive properties, enabling selection based on line design parameters.
• Stranded Construction – Conductors are formed from concentric layers of aluminium or alloy wires, providing uniform mechanical and electrical performance across the conductor cross‑section.
• Bare Overhead Configuration – All conductors are supplied without insulation, suitable for direct installation on insulators and support structures in outdoor overhead environments.
• Material Options – Manufactured from EC‑grade aluminium, aluminium‑magnesium‑silicon alloy, galvanized or aluminium‑clad steel core, or composite core, depending on conductor type, allowing selection based on electrical and mechanical requirements.
• Standardised Dimensions – Conductor sizes and stranding configurations are produced to recognised overhead conductor specifications, ensuring compatibility with standard fittings and connectors.

Applications:

Producing Process:

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.;

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
20GP, 40GP and 40HQ containers

Customers Visit:

    All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
    We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ:

Q1. Are you factory, can I get factory low price?

Yes, we are a cable factory in Henan province, China. We will provide the best quality at a reasonable ex-work price.

Q2. How can I get a sample to check your quality?

After price confirmation, you can require samples to check our quality. The sample is free, but the freight charge should be paid.

Q3. Can I put my logo/company brand on the cable?

Yes, OEM ODM is available. Your logo can be marked on the cable as required.

Q4. What about the lead time for mass production?

Honestly, it depends on the order quantity and the season you place the order.

Q5. Certificate of your cable wire?

ISO9001, ISO14001, CE, and RoHS. Its products comply with international common standards such as IEC, BS, VDE, and GB
