ASTM B232 & BS 215-2 Bare ACSR Conductor – Hawk, Drake, Raven & Dog Aluminum Cable Steel Reinforced for Overhead Transmission Lines

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	ACSR

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	Negotiable
Packaging Details:	New Wooden drum, reel, circle, or according to customers request
Delivery Time:	1-15days
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	Aluminium Conductor Steel Reinforced	Voltage:	Low/Medium/High Voltage
Application:	Overhead	Dimensions:	0.5--1000mm2
Service:	ODM OEM Accepted	Life Span:	30 Years
Highlight:	ASTM B232 ACSR conductor , BS 215-2 aluminum cable steel reinforced , ACSR overhead transmission line cable

ASTM B232 & BS 215-2 Bare ACSR Conductor – Hawk, Drake, Raven & Dog Aluminum Cable Steel Reinforced for Overhead Transmission Lines

Name: ASTM B232 & BS 215-2 Bare ACSR Conductor – Hawk, Drake, Raven & Dog Aluminum Cable Steel Reinforced for Overhead Transmission Lines
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: ACSR
Price: 9.10 USD
Availability: InStock

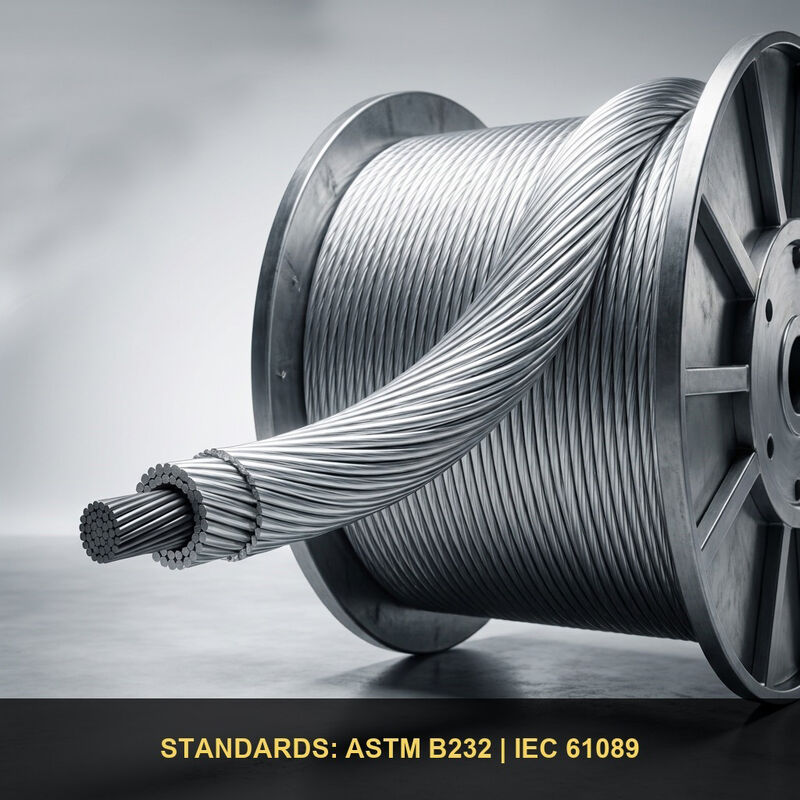

This bare ACSR (Aluminium Conductor Steel Reinforced) cable is manufactured to ASTM B232 and BS 215-2 standards, covering common designations such as Hawk, Drake, Raven, and Dog. The conductor combines outer aluminium 1350-H19 strands with a galvanized steel core, providing the mechanical reinforcement needed for overhead transmission and distribution lines. The steel core carries the tensile load, while the aluminium strands conduct current, making the cable suitable for long-span routes where both strength and conductivity are required. The conductor is supplied in bare form for direct installation on insulators and support structures. It is available in a range of stranding configurations and conductor sizes conforming to the referenced standards, suitable for high-voltage transmission, medium-voltage distribution, and substation connections.

ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110

Specifications


Code	Size (AWG/MCM)	Number of Strands(mm)	Weight(kg/km)	Rated Strength(kg)
Rose	4	7*1.96	58.3	399
Iris	2	7*2.47	92.7	611
Pansy	1	7*2.78	117	740
Aster	2/0	7*3.5	186	1375

ASTM B232 & BS 215-2 Bare ACSR Conductor – Hawk, Drake, Raven & Dog Aluminum Cable Steel Reinforced for Overhead Transmission Lines

The Characteristics of ACSR:

Aluminium and Steel Composite Construction. The conductor consists of concentric-lay aluminium strands surrounding a galvanized steel core, combining electrical conductivity with mechanical reinforcement for overhead service.
Standard-Compliant Designations. Manufactured to ASTM B232 and BS 215-2, with conductor sizes and stranding patterns matching recognised designations such as Hawk, Drake, Raven, and Dog.
Bare Overhead Configuration. Supplied without insulation for direct installation on insulators and support structures, with the aluminium surface providing natural corrosion resistance in most outdoor environments.
Mechanical Reinforcement. The galvanized steel core increases tensile strength and reduces sag, enabling longer spans between towers or poles than all-aluminium conductors of comparable size.
Range of Stranding Options. Available in multiple aluminium-to-steel ratios and stranding configurations, allowing selection based on span length, loading conditions, and current-carrying requirements.

ASTM B232 & BS 215-2 Bare ACSR Conductor – Hawk, Drake, Raven & Dog Aluminum Cable Steel Reinforced for Overhead Transmission Lines

Applications

High-Voltage Transmission Lines – ACSR conductors used on long-span routes where high tensile strength and low sag are required.
Medium-Voltage Distribution Feeders – Installed on pole lines serving industrial, commercial, and residential areas with moderate to heavy loading.
Long-Span River and Valley Crossings – Specified where extended spans demand the mechanical reinforcement provided by the steel core.
Substation Busbar and Jumper Connections – Used for internal connections within substation switchyards and transformer bays.
Reconductoring and Line Upgrades – Replacing aging conductors on existing overhead lines to improve capacity or reliability.

ASTM B232 & BS 215-2 Bare ACSR Conductor – Hawk, Drake, Raven & Dog Aluminum Cable Steel Reinforced for Overhead Transmission Lines

Our technical team can optimize the design and customize the production of wires according to your specific needs.

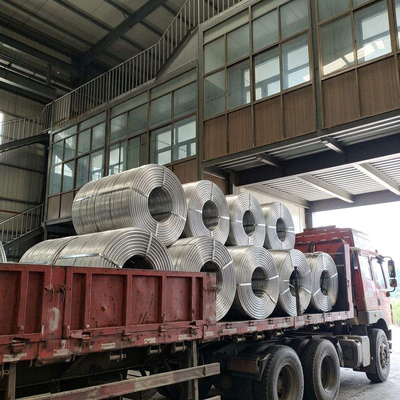

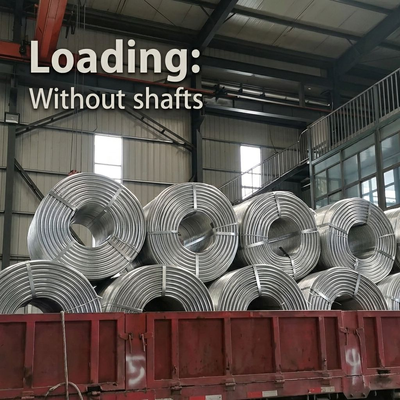

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.
ABC Cable Aerial Bundled Cable with XLPE/PVC Insulation

Pay attention to the following steps during installation:

Tension control: It is recommended to control the tension at 20% -30% of the rated value to avoid excessive stretching.
Sag adjustment: Adjust the sag according to the ambient temperature, generally within the range of 1% -3% span.
Connection processing: Use specialized crimping tools, and the recommended crimping pressure is 20-30MPa.
