ACSR Conductor 50mm & 100mm – Aluminum Conductor Steel Reinforced (SCA/ACSR) Cable for Overhead Transmission Lines

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	ACSR

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	Negotiable
Packaging Details:	New Wooden drum, reel, circle, or according to customers request
Delivery Time:	1-15days
Payment Terms:	L/C, T/T, Western Union,
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	Aluminium Conductor Steel Reinforced	Voltage:	Low/Medium/High Voltage
Application:	Overhead	Dimensions:	0.5--1000mm2
Service:	ODM OEM Accepted	Life Span:	30 Years
Highlight:	ACSR conductor 50mm overhead transmission , Aluminum conductor steel reinforced cable , ACSR cable 100mm with warranty

ACSR Conductor 50mm & 100mm – Aluminum Conductor Steel Reinforced (SCA/ACSR) Cable for Overhead Transmission Lines

Name: ACSR Conductor 50mm & 100mm – Aluminum Conductor Steel Reinforced (SCA/ACSR) Cable for Overhead Transmission Lines
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: ACSR
Price: 9.10 USD
Availability: InStock

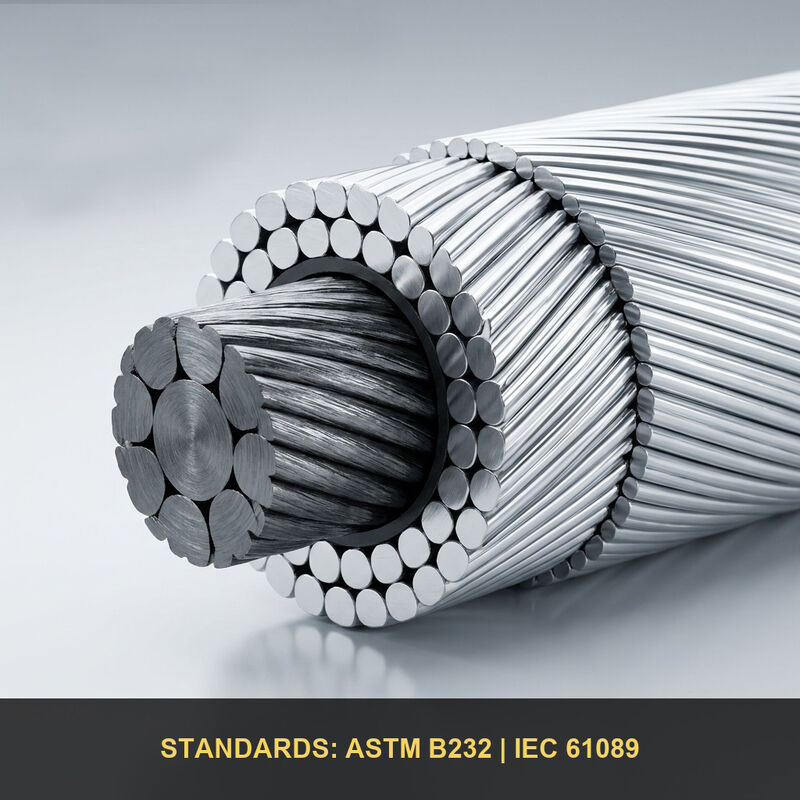

This ACSR (Aluminum Conductor Steel Reinforced) cable, also designated SCA in some standards, is manufactured with outer aluminum strands concentrically layered around a galvanized steel core. The steel core carries the mechanical tensile load, while the aluminum strands conduct current, making the conductor suitable for overhead transmission and distribution lines where both strength and conductivity are required. The cable is supplied in bare form for direct installation on insulators and support structures. The aluminum surface provides natural corrosion resistance in most outdoor environments, and the composite construction helps limit sag over moderate to long spans.

ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110

Specifications


Code	Size (AWG/MCM)	Number of Strands(mm)	Weight(kg/km)	Rated Strength(kg)
Rose	4	7*1.96	58.3	399
Iris	2	7*2.47	92.7	611
Pansy	1	7*2.78	117	740
Aster	2/0	7*3.5	186	1375

ACSR Conductor 50mm & 100mm – Aluminum Conductor Steel Reinforced (SCA/ACSR) Cable for Overhead Transmission Lines

The Characteristics of ACSR:

Aluminum and Steel Composite Construction. The conductor combines outer aluminum strands with a galvanized steel core, delivering electrical conductivity alongside mechanical reinforcement for overhead service.
Bare Overhead Configuration. Supplied without insulation for direct mounting on insulators and support structures, with the aluminum surface offering natural oxidation resistance in typical outdoor conditions.
Mechanical Reinforcement from Steel Core. The steel core increases tensile strength and reduces sag compared with all-aluminum conductors of similar size, supporting longer spans between poles or towers.
Standard-Aligned Stranding. Stranding patterns and conductor dimensions are produced to applicable ACSR specifications, ensuring compatibility with standard fittings, connectors, and hardware.

ACSR Conductor 50mm & 100mm – Aluminum Conductor Steel Reinforced (SCA/ACSR) Cable for Overhead Transmission Lines

Applications

Overhead Transmission Lines. Used as bare conductors on high-voltage routes where mechanical strength and low sag are required.
Medium-Voltage Distribution Feeders. Installed on pole lines serving industrial, commercial, and residential areas with moderate to heavy loading.
Long-Span River and Valley Crossings. Specified where extended spans demand the tensile capacity provided by the steel core.
Substation Jumper and Bus Connections. Applied for internal connections within substation switchyards and transformer bays.
Reconductoring and Line Upgrades. Used to replace aging conductors on existing overhead lines, improving capacity or reliability without major structural changes.

ACSR Conductor 50mm & 100mm – Aluminum Conductor Steel Reinforced (SCA/ACSR) Cable for Overhead Transmission Lines

Our technical team can optimize the design and customize the production of wires according to your specific needs.

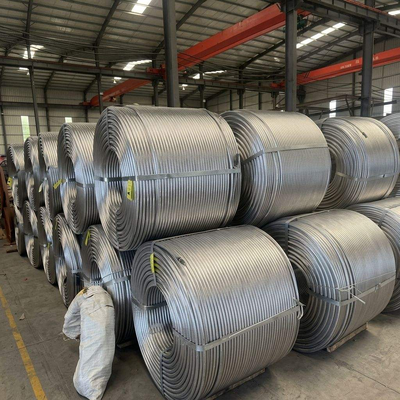

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.
ABC Cable Aerial Bundled Cable with XLPE/PVC Insulation

Pay attention to the following steps during installation:

Tension control: It is recommended to control the tension at 20% -30% of the rated value to avoid excessive stretching.
Sag adjustment: Adjust the sag according to the ambient temperature, generally within the range of 1% -3% span.
Connection processing: Use specialized crimping tools, and the recommended crimping pressure is 20-30MPa.

More Products:

Customers Visit

At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

FAQ

1. ARE YOU A FACTORY OR A TRADER?

We are the factory, you are welcome to visit the factory.

2. WHAT IS YOUR PAYMENT TERMS?

100% in advance & 30% deposite, 70% balance before shipment.(Credit card,T/T).

3. DO YOU PROVIDE SAMPLES FREE OF CHARGE?

Yes,but the shipping cost should be on buyer's account.

4. DO YOU PROVIDE AFTER-SALES SERVICE?

Yes.If you find that the goods have quality problems,Please submit proof file, picture video to us,We will investigate andgive you a satisfactory solution.

We always believe that the success of our customers is our success. The steel cored aluminum stranded wire we provide is not just a roll of metal wire, it is a "bridge of trust" that we have built together with you, flowing with current. We look forward to hearing your specific project challenges and providing you with the most valuable solutions.
