LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACSR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New Wooden drum, reel, circle, or according to customers request |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 200 tons per day |
| Name: | Aluminium Conductor Steel Reinforced | Voltage: | Low/Medium/High Voltage |
|---|---|---|---|
| Application: | Overhead | Dimensions: | 0.5--1000mm2 |
| Service: | ODM OEM Accepted | Life Span: | 30 Years |
| Highlight: | ACSR conductor bare aluminum cable,steel reinforced overhead power line,aluminum conductor transmission distribution cable |
||

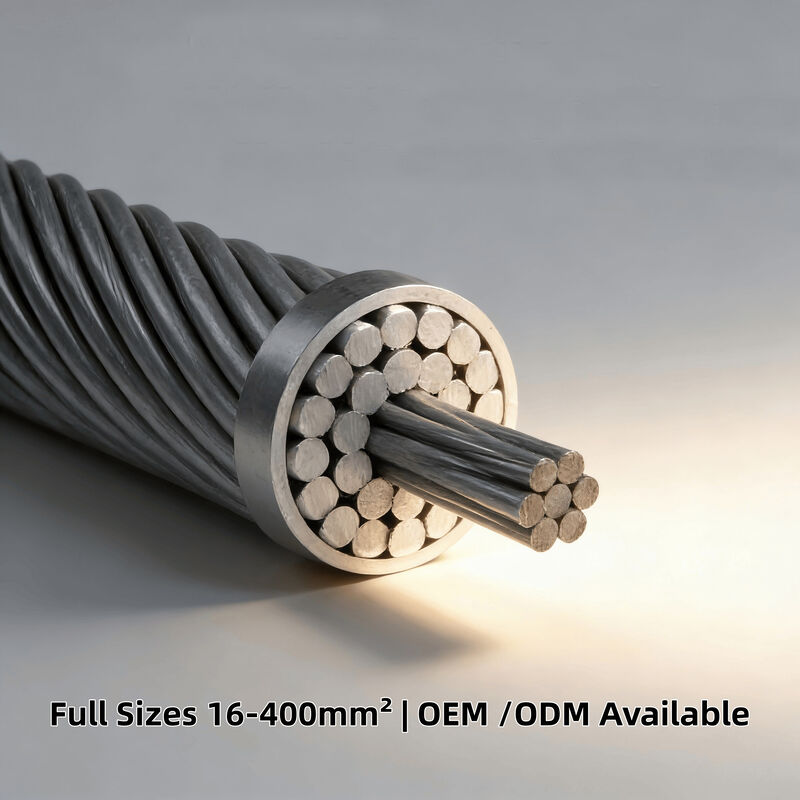

This bare ACSR conductor is manufactured with concentric layers of aluminum strands over a galvanized steel core, available in nominal cross-sections from 16mm² to 400mm². The steel core carries the mechanical tensile load, while the aluminum strands conduct current, making the cable suitable for overhead transmission and distribution lines where both strength and conductivity are required. The conductor is supplied in bare form for direct installation on insulators and support structures. Stranding patterns and conductor dimensions are produced to recognized ACSR specifications, ensuring compatibility with standard fittings and hardware. The aluminum surface provides natural oxidation resistance in most outdoor environments, and the composite construction helps limit sag over moderate to long spans.
ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
The Characteristics of ACSR:
Aluminum-Steel Composite Construction
Outer aluminum strands are layered over a galvanized steel core, combining electrical conductivity with mechanical reinforcement for overhead service.
Concentric Stranded Design
The conductor is formed from concentric layers of aluminum wires around the steel core, providing uniform current distribution and stable mechanical performance.
Bare Overhead Configuration
Supplied without insulation for direct mounting on insulators and support structures, with the aluminum surface offering natural corrosion resistance in typical outdoor conditions.
Steel Core Mechanical Reinforcement
The galvanized steel core increases tensile strength and reduces sag compared with all-aluminum conductors of similar size, supporting longer spans between poles or towers.
Broad Nominal Size Range
Available from 16mm² to 400mm², allowing selection based on current-carrying requirement, span length, and mechanical loading conditions.
Applications
Overhead Transmission Lines
Used as bare conductors on high-voltage routes where mechanical strength and low sag are required.
Medium-Voltage Distribution Feeders
Installed on pole lines serving industrial, commercial, and residential areas with moderate to heavy loading.
Long-Span River and Valley Crossings
Specified where extended spans demand the tensile capacity provided by the steel core.
Substation Jumper and Bus Connections
Applied for internal connections within substation switchyards and transformer bays.
Reconductoring and Line Upgrades
Used to replace aging conductors on existing overhead lines, improving capacity or reliability without major structural changes.
Our technical team can optimize the design and customize the production of wires according to your specific needs.

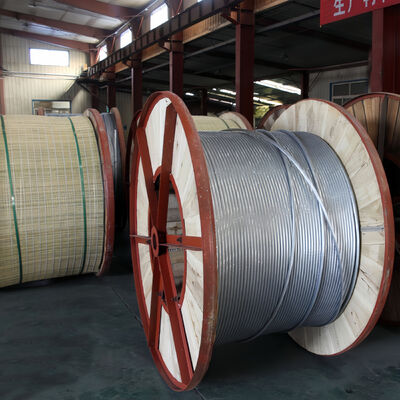

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
Pay attention to the following steps during installation:
More Products:
Customers Visit
At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
