LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACSR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New Wooden drum, reel, circle, or according to customers request |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 200 tons per day |
| Name: | Aluminium Conductor Steel Reinforced | Voltage: | Low/Medium/High Voltage |
|---|---|---|---|
| Application: | Overhead | Dimensions: | 0.5--1000mm2 |
| Service: | ODM OEM Accepted | Life Span: | 30 Years |
| Highlight: | IEC 61089 ACSR conductor cable,bare stranded aluminum steel reinforced cable,galvanized steel core overhead line cable |
||

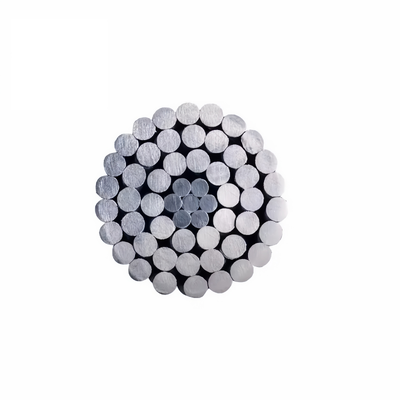

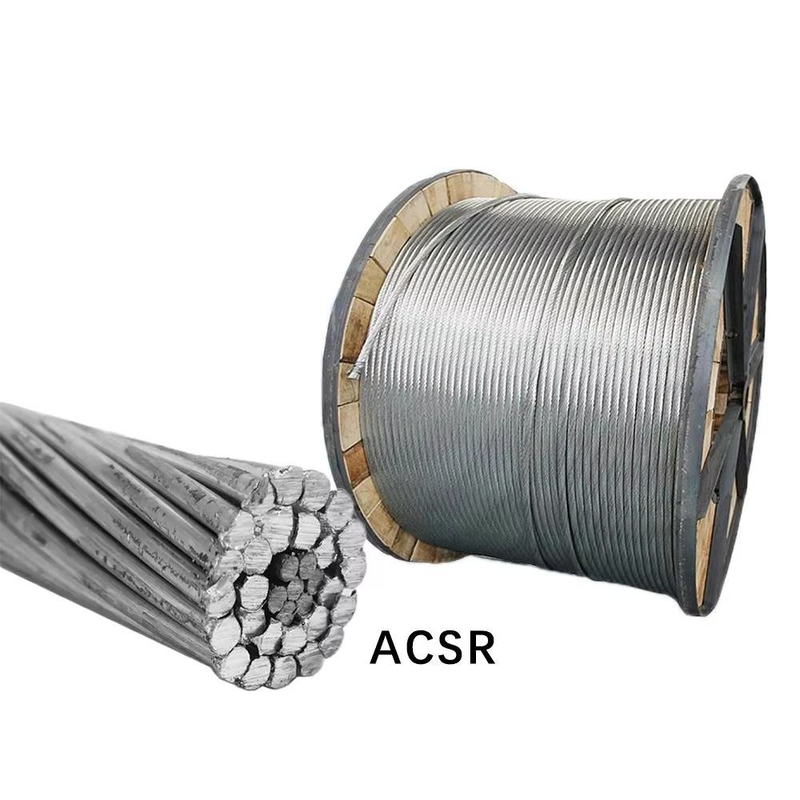

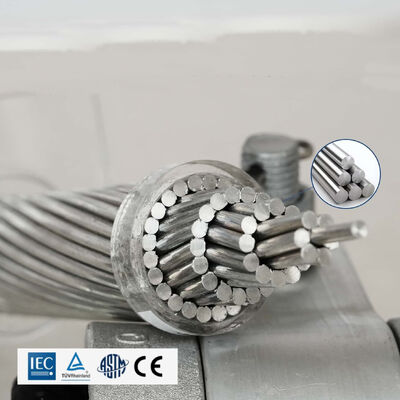

This bare stranded ACSR conductor is manufactured in accordance with IEC 61089, with a galvanized steel core surrounded by concentric layers of stranded aluminum wires. The zinc-coated steel core provides the tensile capacity needed for overhead installation, while the aluminum strands carry the current. The conductor is supplied in bare form for direct mounting on insulators and support structures, and its stranding geometry follows the designation system defined in IEC 61089. The combination of aluminum conductivity and steel reinforcement makes this conductor suitable for transmission and distribution routes where mechanical loading and electrical performance must both be addressed. The galvanized coating on the core offers protection against atmospheric corrosion during outdoor service.
ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
The Characteristics of ACSR:
IEC 61089 Designation Compliance
Conductor sizes and stranding patterns follow the IEC 61089 designation system, supporting compatibility with international overhead line design and procurement practice.
Galvanized Steel Core
The core is zinc-coated to resist atmospheric corrosion, while providing the tensile strength required for spans beyond the capability of all-aluminum conductors.
Stranded Aluminum Outer Layers
Concentric layers of aluminum wires form the conductive path, with stranding that allows the conductor to be handled, reeled, and strung using conventional overhead line equipment.
Bare Overhead Construction
The conductor is supplied without insulation, with the aluminum surface forming a natural oxide layer that resists weathering in most outdoor environments.
Balanced Mechanical and Electrical Performance
The aluminum-to-steel ratio of the conductor is selected to balance current-carrying capacity with the sag and tension behavior required for overhead spans.
Applications
High-Voltage Overhead Transmission
Used as a bare conductor on transmission routes where low sag and high tensile strength are required.
Medium-Voltage Distribution Networks
Installed on pole lines supplying industrial, commercial, and residential loads at moderate to heavy current levels.
River, Valley and Gorge Crossings
Selected for extended spans where the steel core provides the mechanical margin needed to control sag.
Substation Connections
Applied for jumper leads and bus connections within switchyards and transformer bays.
Line Reconductoring and Capacity Upgrades
Used to replace aging conductors on existing overhead lines, improving transmission capability without altering tower structures.
Our technical team can optimize the design and customize the production of wires according to your specific needs.
Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
Pay attention to the following steps during installation:
More Products:
Customers Visit
At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
