LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACSR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New Wooden drum, reel, circle, or according to customers request |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 200 tons per day |
| Name: | Aluminium Conductor Steel Reinforced | Voltage: | Low/Medium/High Voltage |
|---|---|---|---|
| Application: | Overhead | Dimensions: | 0.5--1000mm2 |
| Service: | ODM OEM Accepted | Life Span: | 30 Years |
| Highlight: | ACSR overhead conductor for power transmission,steel reinforced aluminum wire,aluminium conductor steel reinforced cable |
||

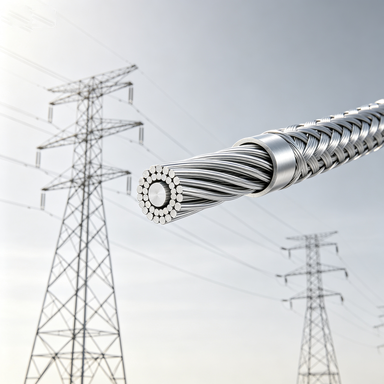

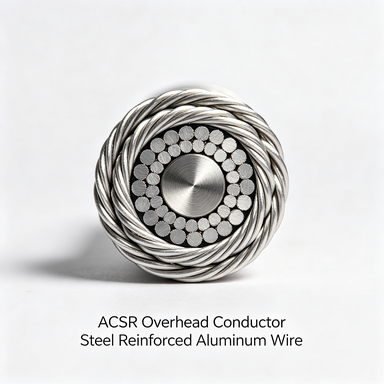

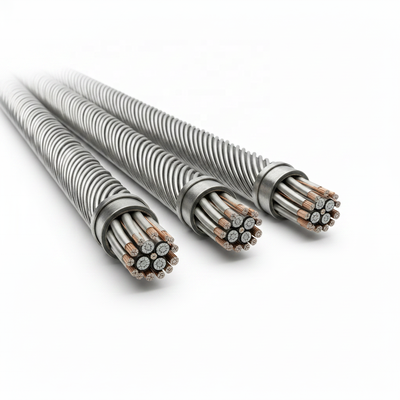

The ACSR overhead conductor consists of a galvanized steel core wrapped by concentric layers of stranded aluminum wire. The steel core carries the mechanical load, while the aluminum strands provide the conductive path, allowing the cable to serve overhead transmission and distribution routes where both tensile strength and current capacity are required. The conductor is supplied in bare form for direct installation on insulators and support structures. Its composite design helps control sag over long spans, and the galvanized core offers protection against atmospheric corrosion during outdoor service. Conductor sizes and stranding patterns are produced to applicable international standards, with documentation available for project verification.
ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
The Characteristics of ACSR:
Steel Reinforced Aluminum Construction
The conductor combines a galvanized steel core with outer aluminum strands, delivering mechanical reinforcement alongside electrical conductivity for overhead lines.
Concentric Stranded Aluminum Layers
Aluminum wires are stranded in concentric layers around the core, providing a uniform conductive path and allowing the cable to be reeled, strung, and tensioned with standard overhead line equipment.
Galvanized Steel Core
The zinc-coated core resists atmospheric corrosion while supplying the tensile strength needed for spans that exceed the capability of all-aluminum conductors.
Bare Overhead Configuration
Supplied without insulation for direct mounting on insulators and support structures, with the aluminum surface forming a natural oxide layer that resists weathering in most outdoor environments.
Balanced Mechanical and Electrical Design
The aluminum-to-steel ratio is selected to balance current-carrying capacity with sag and tension behavior, supporting reliable performance across transmission and distribution applications.
Applications
High-Voltage Transmission Lines
Used as a bare conductor on transmission routes where low sag and high tensile strength are required.
Medium-Voltage Distribution Networks
Installed on pole lines supplying industrial, commercial, and residential loads at moderate to heavy current levels.
Long-Span Crossings
Selected for river, valley, and gorge crossings where the steel core provides the mechanical margin needed to control sag.
Substation Connections
Applied for jumper leads and bus connections within switchyards and transformer bays.
Reconductoring and Capacity Upgrades
Used to replace aging conductors on existing overhead lines, improving transmission capability without altering tower structures.
Our technical team can optimize the design and customize the production of wires according to your specific needs.
Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
Pay attention to the following steps during installation:
More Products:
Customers Visit
At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
