LUOYANG SANWU CABLE GROUP CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | ACSR |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | New Wooden drum, reel, circle, or according to customers request |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T, Western Union, |
| Supply Ability: | 200 tons per day |
| Name: | Aluminium Conductor Steel Reinforced | Voltage: | Low/Medium/High Voltage |
|---|---|---|---|
| Application: | Overhead | Dimensions: | 0.5--1000mm2 |
| Service: | ODM OEM Accepted | Life Span: | 30 Years |
| Highlight: | ACSR bare overhead conductor,aluminum stranded steel reinforced cable,10kV medium voltage lines cable |
||

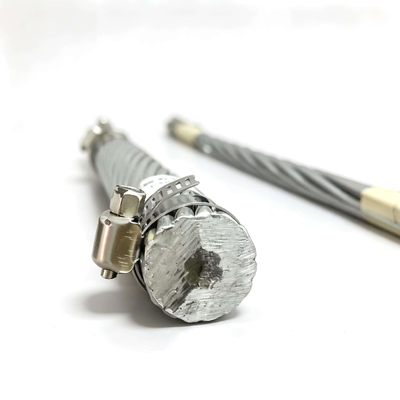

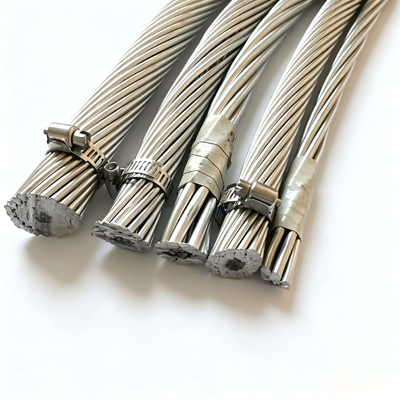

This JL/G1A ACSR conductor is a bare overhead cable formed by stranding aluminum wires in concentric layers around a galvanized steel core. The designation JL/G1A follows the Chinese standard naming convention for steel-reinforced aluminum conductors, indicating a galvanized steel core combined with electrical-grade aluminum strands. The steel core carries the tensile load, while the aluminum layers conduct current, making the conductor suitable for 10kV medium voltage overhead distribution and transmission routes. The cable is supplied uninsulated for direct mounting on insulators and support structures, and its composite construction helps control sag across moderate to long spans. Aluminum surfaces form a natural oxide layer that resists weathering in typical outdoor environments.
ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110
Specifications
| Code | Size (AWG/MCM) | Number of Strands(mm) | Weight(kg/km) | Rated Strength(kg) |
| Rose | 4 | 7*1.96 | 58.3 | 399 |
| Iris | 2 | 7*2.47 | 92.7 | 611 |
| Pansy | 1 | 7*2.78 | 117 | 740 |
| Aster | 2/0 | 7*3.5 | 186 | 1375 |
The Characteristics of ACSR:
Galvanized Steel Reinforced Core
The core is zinc-coated to resist atmospheric corrosion while providing the tensile strength required for overhead spans beyond the reach of all-aluminum conductors.
Concentric Stranded Aluminum Layers
Electrical-grade aluminum wires are stranded in concentric layers, forming a uniform conductive path and allowing the conductor to be reeled, strung, and tensioned with conventional overhead line equipment.
Bare Overhead Construction
Supplied without insulation for direct installation on insulators and support hardware, reducing material complexity compared with insulated overhead cables.
10kV Medium Voltage Suitability
The conductor is intended for 10kV class overhead distribution and sub-transmission lines, where bare conductor installation and standard clearance practice apply.
JL/G1A Standard Designation
Conductor sizing and stranding follow the JL/G1A designation system, supporting consistency in specification, procurement, and compatibility with standard fittings.
Applications
10kV Medium Voltage Distribution Feeders
Used as main overhead feeders from substations to load centres in urban, suburban, and industrial areas.
Rural Electrification Lines
Installed along agricultural and remote routes where moderate spans and mechanical reinforcement are needed.
Long-Span Overhead Crossings
Selected for river, valley, and roadway crossings where the steel core provides the margin to control sag.
Substation Jumper and Bus Connections
Applied for internal connections within switchyards and transformer bays.
Reconductoring and Capacity Upgrades
Used to replace aging conductors on existing 10kV lines, improving transmission capability without altering tower or pole structures.
Our technical team can optimize the design and customize the production of wires according to your specific needs.
Packing & Delivery:

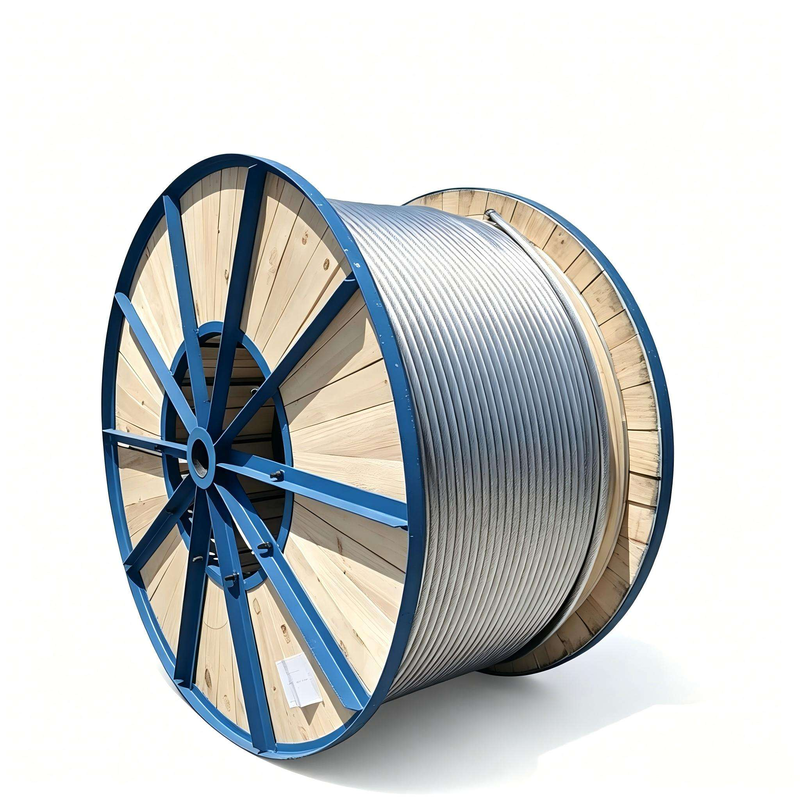

Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.
Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.
According to customers request.
Pay attention to the following steps during installation:
More Products:
Customers Visit
At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.
All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.
