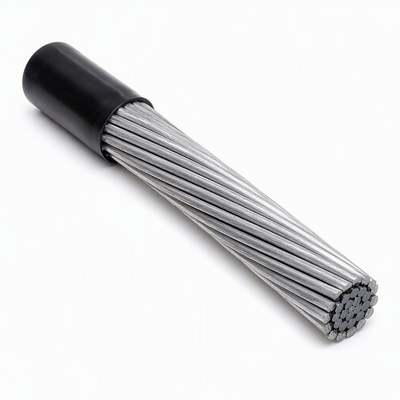

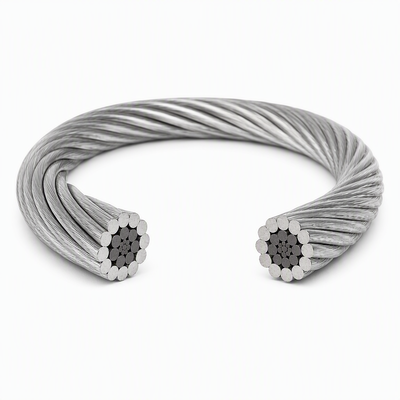

ACSR Bare Conductor 25/4 Aluminum Conductor Steel Reinforced Wire for Overhead Power Lines

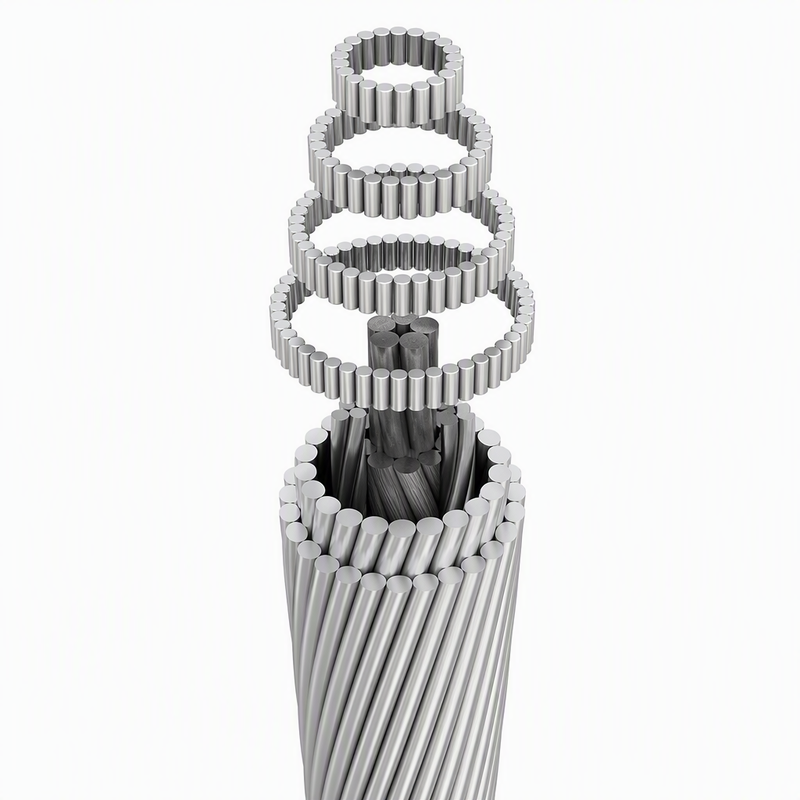

This ACSR bare conductor, designated 25/4, is manufactured with stranded aluminum wires concentrically layered over a galvanized steel core. The steel core carries the mechanical load, while the aluminum strands provide the conductive path, making the conductor suitable for overhead power transmission and distribution lines. The 25/4 designation refers to the stranding configuration of the conductor, indicating the number of aluminum and steel wires used in its construction. The cable is supplied in bare form for direct installation on insulators and support structures. Its composite design helps control sag across overhead spans, and the galvanized core offers protection against atmospheric corrosion during outdoor service.

ACSR Conductor Standards
* ASTM B-232 * BS 215
* CSAC 61089 * AS/NZS 3607
* DIN 48204 * IEC 61089
* GB/T 1179 * JIS C3110

Specifications

The Characteristics of ACSR:

1. Galvanized Steel Reinforced Core
   The core is zinc-coated to resist atmospheric corrosion while providing the tensile strength required for overhead spans beyond the capability of all-aluminum conductors.

2. Concentric Stranded Aluminum Layers
   Electrical-grade aluminum wires are stranded in concentric layers around the core, forming a uniform conductive path and allowing the conductor to be reeled, strung, and tensioned with standard overhead line equipment.

3. Bare Overhead Construction
   Supplied without insulation for direct mounting on insulators and support hardware, with the aluminum surface forming a natural oxide layer that resists weathering in most outdoor environments.

4. 25/4 Stranding Designation
   The conductor is identified by its 25/4 stranding configuration, which defines the ratio of aluminum to steel wires and determines its mechanical and electrical characteristics.

5. Balanced Mechanical and Electrical Performance
   The aluminum-to-steel ratio is selected to balance current-carrying capacity with sag and tension behavior, supporting reliable performance across transmission and distribution applications.

Applications

Our technical team can optimize the design and customize the production of wires according to your specific needs.

Packing & Delivery:
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.

Pay attention to the following steps during installation:

1. Tension control: It is recommended to control the tension at 20% -30% of the rated value to avoid excessive stretching.
2. Sag adjustment: Adjust the sag according to the ambient temperature, generally within the range of 1% -3% span.
3. Connection processing: Use specialized crimping tools, and the recommended crimping pressure is 20-30MPa.
