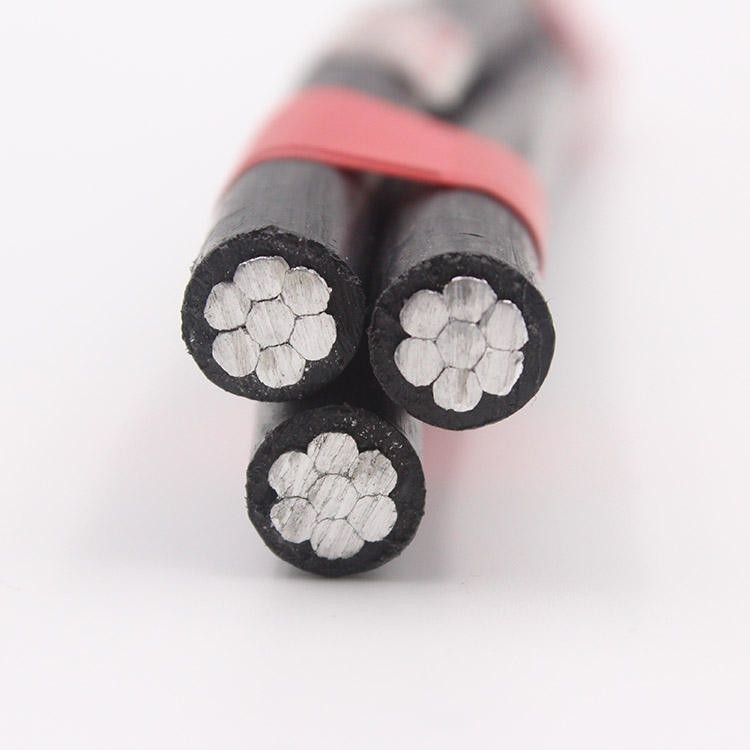

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines
Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines
Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: Low Voltage Overhead Power Lines
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.2-20 per meter
Packaging Details: wooden drums
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: Low Voltage Overhead Power Lines Insulation: XLPE
Service Life: 70 Years Warranty: 2 Year
Color: Black Sheath: PVC Sheath
Other Name: Overhead Service Drop Cable
Highlight:

Power Lines Overhead Insulated Cable

,

Low Voltage Overhead Insulated Cable

,

Triplex Overhead Insulated Cable Low Voltage

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines




Description



The ideal cable for installing or maintaining above cables is the triplex cable. They are frequently observed in your area for a single-phase power connection. As the name implies, triplex cable is made up of three separate cables that are each held in place by a sheath. Two insulated conductors and one uninsulated cable, which is regarded as the neutral cable that enables them to operate, are tightly twisted around one another. The circuit voltage is 240 volts when a circuit is connected between the insulated conductors.The circuit voltage will be 120 volts if a circuit is connected between the neutral and any of the insulated conductors. You may simply find them at any store that sells electrical supplies.They are also necessary for straightforward fixes.



Advantages

In comparison to bare overhead distribution lines, AB Cables have very high reliability during the services. As the power and neutral conductors are insulated with the best dielectric material, resulting in the following advantages:

    Less fault rate on account of good protection against line and ground fault by high winds or falling trees or birds especially in hilly areas &              forests as encountered in Rural distribution networks

   High Insulation resistance to earth in all polluted atmosphere. Negligible currents and low losses



Standard

     NFC 33209 IEC ASTM

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 0Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 1Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 2

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 3



SPEC



mm2

Conductor structure



Insulation



Material



Insulation

thickness (mm)



Approx overall

Diameter(mm)



Approx weight



(kg/km)

Phase (compacted A)





Phase (compacted Al)

Neutral (alloy)
No./mm No./mm
1*16+1*16 7/1.72 7/1.72

XLPE

Or

1.2 12.5 110.1
1*25+1*25 7/2.15 7/2.15 1.2 14.9 163.9
1*35+1*35 7/2.54 7/2.54

PVC

or

PE

1.4 17.5 229.0
1*50+1*50 7/2.92 7/2.92 1.4 20.1 300.0
1*70+1*70 19/2.15 19/2.15 1.4 23.6 423.2
1*95+1*95 19/2.54 19/2.54 1.6 27.6 585.4
2*16+1*16 7/1.72 7/1.72 1.2 14.2 175.8
2*25+1*25 7/2.15 7/2.15 1.2 16.7 258.4
2*35+1*35 7/2.54 7/2.54 1.4 19.7 361.2
2*50+1*50 7/2.92 7/2.92 1.4 22.5 472.1
2*70+1*70 19/2.15 19/2.15 1.4 26.1 658.3
2*95+1*95 19/2.54 19/2.54 1.6 30.5 908.2
3*16+1*16 7/1.72 7/1.72 1.2 16.3 241.5
3*25+1*25 7/2.15 7/2.15 1.2 19.1 353.6
3*35+1*35 7/2.54 7/2.54 1.4 22.5 493.5
3*50+1*50 7/2.92 7/2.92 1.4 25.7 644.1
3*70+1*70 19/2.15 19/2.15 1.4 29.7 895.2
3*95+1*95 19/2.54 19/2.54 1.6 34.6 1233.5




Producing Proces

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 4

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 5

Packaging & Delivery

Triplex Overhead Insulated Cable Low Voltage Overhead Power Lines 6

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
