LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | Overhead insulated cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | USD 0.2-20 per meter |
| Packaging Details: | wooden drums |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 200 tons per day |

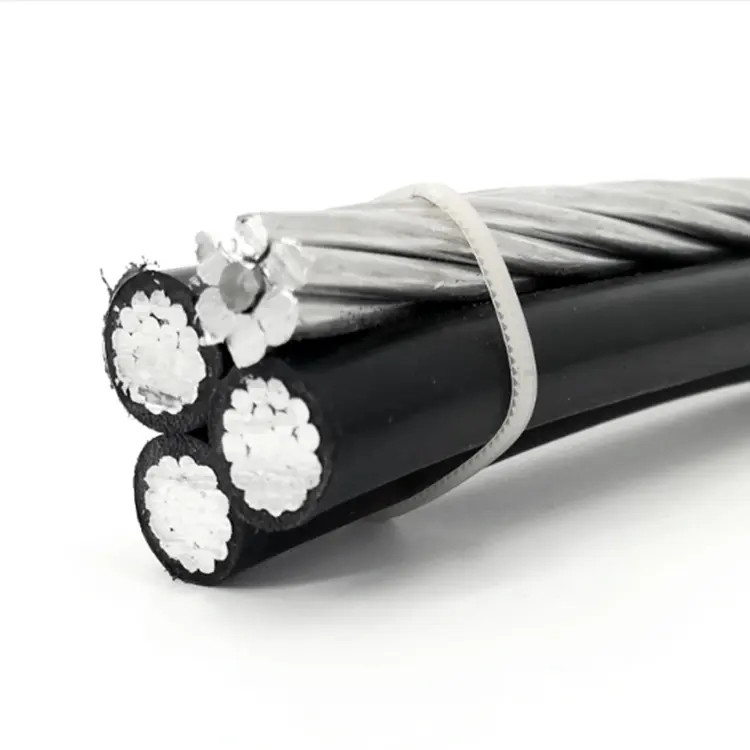

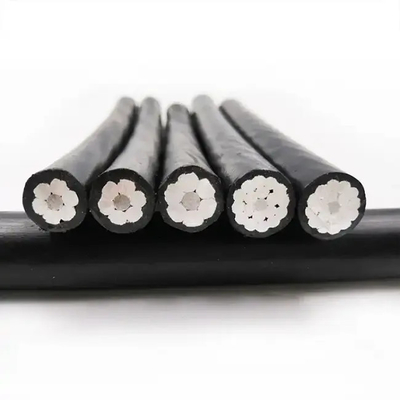

| Name: | Overhead Insulated Cable | Insulation: | XLPE |
|---|---|---|---|
| Rated Voltage: | 0.6-1kv | Size: | 3*16 3*25 |
| Core: | 1 Core | Color: | Black |
| Other Name: | Aerial Power Cable | ||
| Highlight: | IEC Overhead Cable,Aluminum Overhead Cable,XLPE Insulate Overhead Cable |
||
Our covered conductor systems prevent faults caused by wildlife or tree contact, reducing outages. The triple-layer insulation (conductor shield, XLPE, and outer sheath) ensures safety and reliability. These cables are maintenance-free and cost-effective compared to traditional bare conductors.
In comparison to bare overhead distribution lines, AB Cables have very high reliability during the services. As the power and neutral conductors are insulated with the best dielectric material, resulting in the following advantages:
|
SPEC
mm2 |
Conductor structure |
Insulation
Material |
Insulation thickness (mm) |
Approx overall Diameter(mm) |
Approx weight
(kg/km) |
||
|
Phase (compacted A)
Phase (compacted Al) |
Neutral (alloy) | ||||||
| No./mm | No./mm | ||||||
| 1*16+1*16 | 7/1.72 | 7/1.72 |
XLPE Or |
1.2 | 12.5 | 110.1 | |
| 1*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 14.9 | 163.9 | ||
| 1*35+1*35 | 7/2.54 | 7/2.54 |
PVC or PE |
1.4 | 17.5 | 229.0 | |
| 1*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 20.1 | 300.0 | ||
| 1*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 23.6 | 423.2 | ||
| 1*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 27.6 | 585.4 | ||
| 2*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 14.2 | 175.8 | ||
| 2*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 16.7 | 258.4 | ||
| 2*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 19.7 | 361.2 | ||
| 2*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 22.5 | 472.1 | ||
| 2*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 26.1 | 658.3 | ||
| 2*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 30.5 | 908.2 | ||
| 3*16+1*16 | 7/1.72 | 7/1.72 | 1.2 | 16.3 | 241.5 | ||
| 3*25+1*25 | 7/2.15 | 7/2.15 | 1.2 | 19.1 | 353.6 | ||
| 3*35+1*35 | 7/2.54 | 7/2.54 | 1.4 | 22.5 | 493.5 | ||
| 3*50+1*50 | 7/2.92 | 7/2.92 | 1.4 | 25.7 | 644.1 | ||
| 3*70+1*70 | 19/2.15 | 19/2.15 | 1.4 | 29.7 | 895.2 | ||
| 3*95+1*95 | 19/2.54 | 19/2.54 | 1.6 | 34.6 | 1233.5 | ||
Overhead insulated cables are widely used in power distribution and transmission due to their safety, durability, and cost-efficiency.
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Delivery Time
Generally it is 5-10 days if the goods are in stock,or it is 15.
Join the growing number of utilities and contractors who trust our aerial bundled cables for their most critical projects. Our reputation stems from uncompromising quality control, innovative design approaches, and exceptional customer support. Each cable undergoes rigorous testing for electrical, mechanical, and environmental performance before leaving our facility.
Our technical support team provides comprehensive assistance from system design through installation. With decades of experience in overhead power distribution solutions, we understand the real-world challenges you face and engineer our ABC products to solve them. The reliable, long-lasting performance that exceeds expectations.
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
