Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable

Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable

Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: ABC
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: standard exported wooden drum or reels
Delivery Time: 1-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Place Of Original: Henan, China Rated Voltage: 12V, 25V, 6 KV, 15KV, 450V, 20KV, 0.6KV
Insulated: XLPE PE LDPE PVC Type: Low Voltage
Packing: Treated Wooden Drum Application: Power Distribution

Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable



Description

  • Cold-temperature flexibility prevents insulation cracking during winter installations

  • Reduced conductor stranding gaps minimize oxidation hotspots

  • Self-extinguishing properties limit flame propagation vertically

  • Acid gas suppression protects sensitive electronic equipment during faults

Specification of Triplex Low Voltage Power Cable

Cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire



Conductor

Phase Conductor Bare Neutral Messenger
AAC AAC
ACSR
Alloy



Service Drop Cable Meets or Exceeds the Following Specifications:

1). Aluminum Wire,1350-H19 for Electrical Purposes;

2). Aluminum Conductors,Concentric-Lay-Stranded;

3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);

4). Concentric-Lay-Stranded 6201-T81 Conductors;

5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;



Cable's Characteristics

1). Max.admissible long time operating to conductor:

PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;

2). Installing temperature should not be below -20℃;

3). Admissible bending radius:

When overall-diameter(D)is less than 25mm,it should be not less than 4D;

When overall-diameter(D) is 25mm or more,it should be not less than 6D;



Triplex Service Drop

Code name AWG or kcmil Bare Neutral Messenger Phase Conductor Weight Allowable Ampacities(A)
ACSR Rated Strength lbs. AAC Insul.Thick.Mm
No.&Dia.Mm No.& Dia.Mm No. & Dia.Mm kg/km XLPE PE
Paludina 2*6AWG+1*6AWG 1*1.68 6*1.68 1190 1*4.11 1.14 166 85 70
Voluta 2*6AWG+1*6AWG 1*1.68 6*1.68 1190 7*1.56 1.14 170 85 70
Whelk 2*4AWG+1*4AWG 1*2.12 6*2.12 1860 1*5.19 1.14 251 115 90
Periwinkle 2*4AWG+1*4AWG 1*2.12 6*2.12 1860 7*1.96 1.14 255 115 90
Conch 2*2AWG+1*2AWG 1*2.67 6*2.67 2850 7*2.47 1.14 389 150 120
Neritina 2*1/0AWG+1*1/0AWG 1*3.37 6*3.37 4380 7*3.12 1.52 624 205 160
Cenia 2*1/0AWG+1*1/0AWG 1*3.37 6*3.37 4380 19*1.89 1.52 625 205 160



Duplex Service Drop

Code word AWG or kcmil Bare Neutral Messenger Phase Conductor Weight Allowable Ampacities(A)
ALLOY Rated Strength libs. A AC Insul.Thick.Mm
Number & Dia.Mm Number&Dia.Mm kg/km XLPE PE
Chihuahua 1*6AWG+1*30.58 7*1.68 1110 1*4.11 1.14 98 85 70
Vizsla 1*6AWG+1*30.58 7*1.68 1110 7*1.56 1.14 100 85 70
Harrier 1*4AWG+1*48.69 7*2.12 1760 1*5.19 1.14 149 115 90
Whippet 1*4AWG+1*48.69 7*2.12 1760 7*1.96 1.14 151 115 90
Schnauzer 1*2AWG+1*77.47 7*2.67 2800 7*2.47 1.14 231 150 120
Heeler 1*1/0AWG+1*123.3 7*3.37 4460 19*1.89 1.52 372 205 160



Producing Process

High-purity copper conductors undergo precision extrusion for uniform insulation, followed by rigorous dielectric testing.

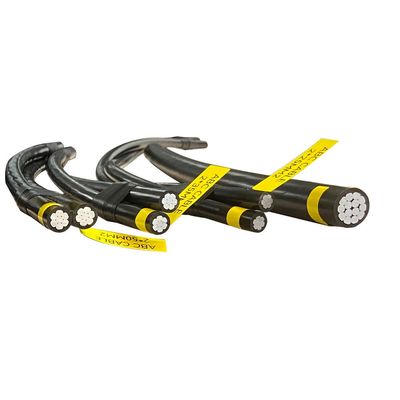

Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable 0

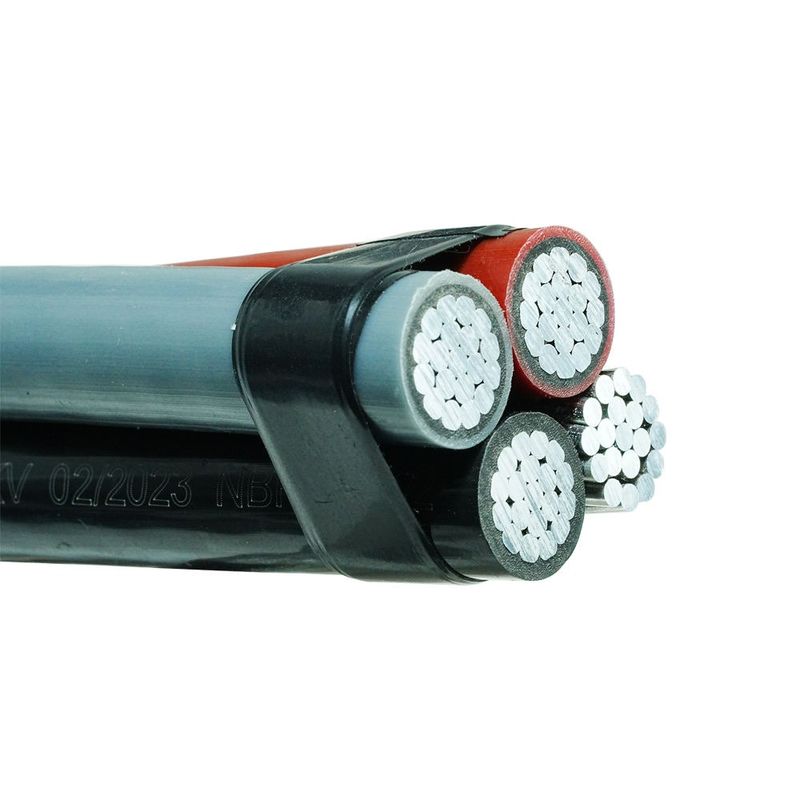

Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable 1

Applications

  • Heavy machinery power feeds in manufacturing plants with high vibration

  • Mining equipment circuits exposed to rock abrasion and compression

  • Cement plant drag chain applications requiring crush resilience

  • Petrochemical facilities where oil splash resistance is critical

Packing & Shipping

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.

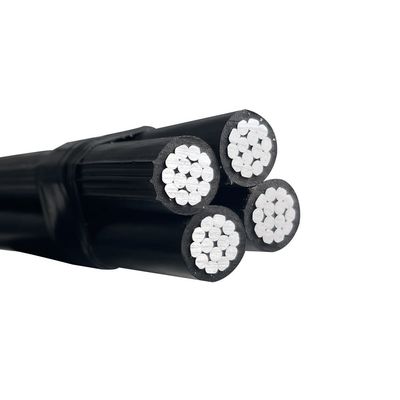

Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable 2

Why Choose Us

ISO-certified manufacturing with 25+ years of industry expertise.

Overhead LV Power Cable Aluminum Conductor XLPE PE LDPE PVC Insulated ABC Cable Duplex Triplex Quadruplex Cable 3

Request a sample today to experience superior flexibility and safety.
