LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | LV Power Cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard exported wooden drum or reels |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Place Of Original: | Henan, China | Rated Voltage: | 0.6/1kV |
|---|---|---|---|
| Insulated: | XLPE PE LDPE PVC | Type: | Low Voltage |
| Packing: | Treated Wooden Drum | Application: | Power Distribution |
Mechanical resilience engineering via interlocked steel armor over XLPE insulation. Crush resistance testing reveals 300% higher impact tolerance than unarmored equivalents. Corrosion-inhibiting compounds enable deployment in chemically aggressive environments including petrochemical plants and mining operations.
Cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Conductor:
| Phase Conductor | Bare Neutral Messenger |
| AAC | AAC |
| ACSR | |
| Alloy |
Service Drop Cable Meets or Exceeds the Following Specifications:
1). Aluminum Wire,1350-H19 for Electrical Purposes;
2). Aluminum Conductors,Concentric-Lay-Stranded;
3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);
4). Concentric-Lay-Stranded 6201-T81 Conductors;
5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;
Cable's Characteristics:
1). Max.admissible long time operating to conductor:
PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;
2). Installing temperature should not be below -20℃;
3). Admissible bending radius:
When overall-diameter(D)is less than 25mm,it should be not less than 4D;
When overall-diameter(D) is 25mm or more,it should be not less than 6D;

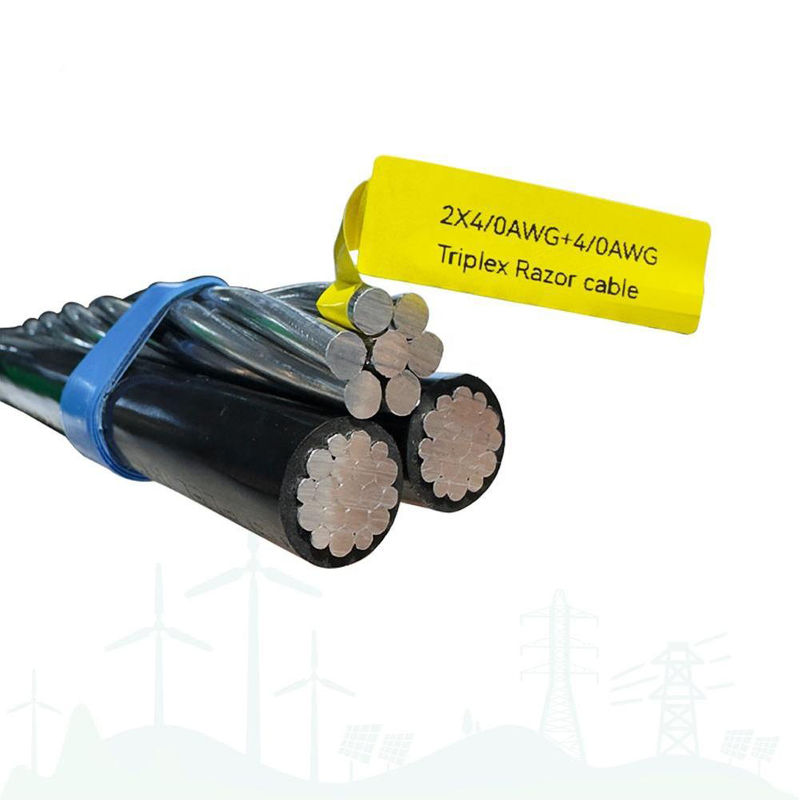

Triplex Service Drop
| Code name | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight | Allowable Ampacities(A) | ||||
| ACSR | Rated Strength lbs. | AAC | Insul.Thick.Mm | ||||||
| No.&Dia.Mm | No.& Dia.Mm | No. & Dia.Mm | kg/km | XLPE | PE | ||||
| Paludina | 2*6AWG+1*6AWG | 1*1.68 | 6*1.68 | 1190 | 1*4.11 | 1.14 | 166 | 85 | 70 |
| Voluta | 2*6AWG+1*6AWG | 1*1.68 | 6*1.68 | 1190 | 7*1.56 | 1.14 | 170 | 85 | 70 |
| Whelk | 2*4AWG+1*4AWG | 1*2.12 | 6*2.12 | 1860 | 1*5.19 | 1.14 | 251 | 115 | 90 |
| Periwinkle | 2*4AWG+1*4AWG | 1*2.12 | 6*2.12 | 1860 | 7*1.96 | 1.14 | 255 | 115 | 90 |
| Conch | 2*2AWG+1*2AWG | 1*2.67 | 6*2.67 | 2850 | 7*2.47 | 1.14 | 389 | 150 | 120 |
| Neritina | 2*1/0AWG+1*1/0AWG | 1*3.37 | 6*3.37 | 4380 | 7*3.12 | 1.52 | 624 | 205 | 160 |
| Cenia | 2*1/0AWG+1*1/0AWG | 1*3.37 | 6*3.37 | 4380 | 19*1.89 | 1.52 | 625 | 205 | 160 |
Duplex Service Drop
| Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight | Allowable Ampacities(A) | |||
| ALLOY | Rated Strength libs. | A AC | Insul.Thick.Mm | |||||
| Number & Dia.Mm | Number&Dia.Mm | kg/km | XLPE | PE | ||||
| Chihuahua | 1*6AWG+1*30.58 | 7*1.68 | 1110 | 1*4.11 | 1.14 | 98 | 85 | 70 |
| Vizsla | 1*6AWG+1*30.58 | 7*1.68 | 1110 | 7*1.56 | 1.14 | 100 | 85 | 70 |
| Harrier | 1*4AWG+1*48.69 | 7*2.12 | 1760 | 1*5.19 | 1.14 | 149 | 115 | 90 |
| Whippet | 1*4AWG+1*48.69 | 7*2.12 | 1760 | 7*1.96 | 1.14 | 151 | 115 | 90 |
| Schnauzer | 1*2AWG+1*77.47 | 7*2.67 | 2800 | 7*2.47 | 1.14 | 231 | 150 | 120 |
| Heeler | 1*1/0AWG+1*123.3 | 7*3.37 | 4460 | 19*1.89 | 1.52 | 372 | 205 | 160 |
Producing Process
Applications
Steel ladle furnace auxiliary equipment connections
Glass manufacturing annealing lehr control circuits
Commercial kitchen exhaust hood lighting systems
Engine test cell instrumentation wiring
Packing & Shipping
Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Why Choose Us
Non-sintering insulation maintains flexibility after heat exposure
Inorganic reinforcement prevents polymer chain breakdown
Non-wetting surface properties repel molten splash adhesion
Minimal pyrolysis products maintain clean environments
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
Reduce installation costs—ask about bulk project discounts.
