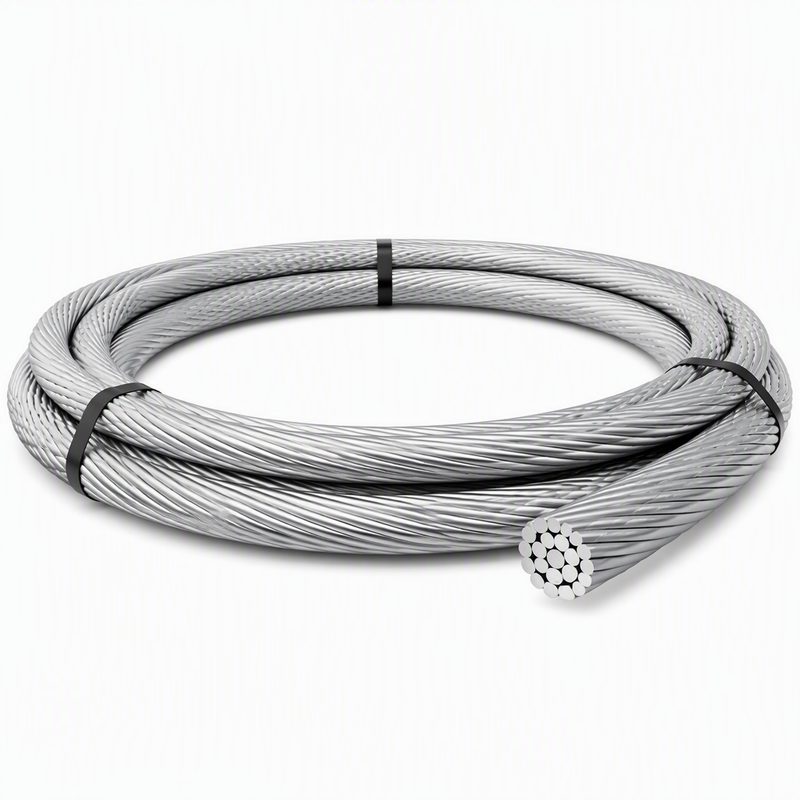

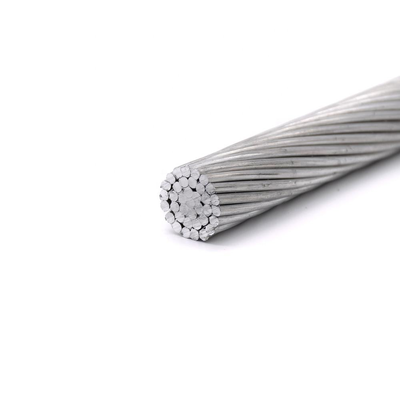

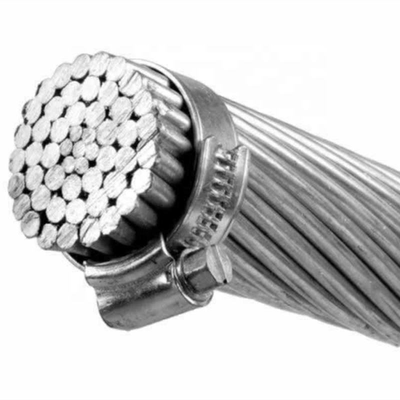

AAC All Aluminum Conductor – Multi-Size Bare Cable for Medium Voltage Overhead Power Line Construction

AAC All Aluminum Conductor Multi-Size Bare Cable for Medium Voltage Overhead Power Line Construction

This AAC (All Aluminum Conductor) is a bare stranded cable manufactured entirely from electrical-grade aluminum wires and offered in multiple nominal sizes for medium voltage overhead power line construction. Because it contains no steel core, the conductor relies on its aluminum strands for both current conduction and mechanical support. This construction simplifies jointing, avoids bimetallic corrosion at connections, and eliminates magnetic losses associated with steel-reinforced designs. The cable is supplied uninsulated for direct mounting on insulators and line hardware. Its lightweight nature and range of available sizes allow designers to match the conductor to different span and load requirements in overhead distribution networks.

Specification


Features

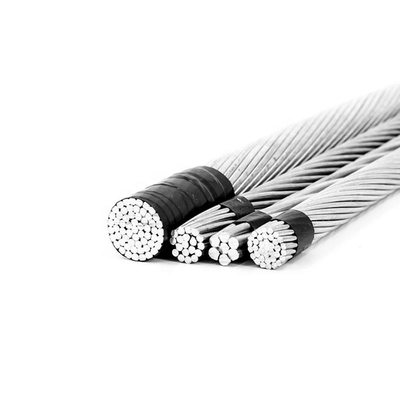

1. Multi-Size Availability
   Produced across a range of nominal cross-sections, enabling selection for varying current and span conditions in medium voltage overhead construction.

2. All-Aluminum Stranded Construction
   Made entirely from electrical-grade aluminum wires, without a steel core, which simplifies splicing and termination and removes the risk of galvanic corrosion between dissimilar metals.

3. Low Resistance Conductive Path
   The aluminum strands provide an efficient path for current flow, supporting stable electrical performance in distribution circuits.

4. Lightweight for Easier Installation
   The absence of a reinforcing core reduces conductor weight, which can ease stringing, tensioning, and handling on poles and hardware.

5. Natural Oxide Protection
   The aluminum surface forms a thin oxide layer that resists weathering in typical outdoor environments, reducing the need for additional protective coatings.

Application

1. Medium Voltage Overhead Distribution Lines
   Used as bare conductor on pole lines serving residential, commercial, and light industrial areas.

2. Rural and Remote Feeder Routes
   Selected where lightweight all-aluminum construction simplifies installation across long or difficult terrain.

3. Substation Bus and Jumper Connections
   Applied for internal connections where low resistance and flexible handling are beneficial.

4. Reconductoring and Line Extensions
   Used to replace aging conductors or extend existing overhead circuits in medium voltage networks.

5. Temporary or Emergency Overhead Circuits
   Deployed for construction power and restoration work where easy cutting, splicing, and termination are required.

Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.

More Products

Customers Visit

At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

Why Choose Us

• Standard-Aligned Production- Manufactured to recognized AAC overhead conductor specifications, with routine checks on stranding, resistance, and surface quality.
• Traceable Material Sourcing- Electrical-grade aluminum rod is sourced from qualified suppliers, with material certificates retained for each production batch.
• Technical Selection Assistance- Our engineering team supports conductor sizing, sag-tension assessment, and hardware compatibility based on your line design parameters.
• Flexible Supply and Packaging- We provide multiple nominal sizes and arrange drum lengths and packaging to suit project logistics.
• Complete Compliance Documentation- Each shipment is accompanied by test certificates, dimensional records, and material traceability documents to support project verification.
