AAC All Aluminum Conductor – Bare Overhead Electrical Power Transmission Cable for Utility Power Lines

AAC All Aluminum Conductor – Bare Overhead Electrical Power Transmission Cable for Utility Power Lines

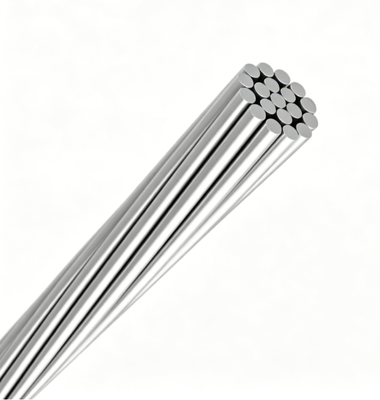

This AAC (All Aluminum Conductor) is a bare overhead cable made entirely from electrical-grade aluminum wires, stranded in concentric layers. With no steel core or reinforcing member, the conductor uses its aluminum strands for both current conduction and mechanical support. This design simplifies splicing and termination, removes the risk of bimetallic corrosion at connections, and avoids magnetic losses associated with steel-reinforced cables. The bare aluminum surface naturally forms a thin oxide film that supports outdoor durability. The conductor is supplied in multiple nominal sizes for overhead electrical power transmission and distribution projects.

Specification


Features

1. All-Aluminum Stranded Construction
The conductor is composed solely of aluminum wires, without a steel core, which reduces weight and simplifies field jointing and termination.

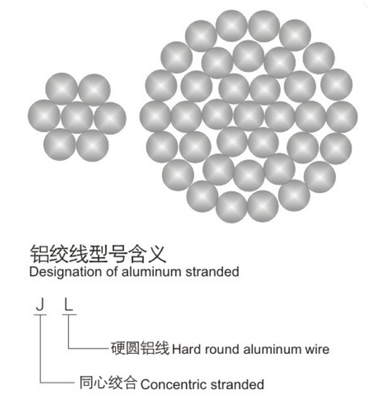

2. Concentric Lay Arrangement
Aluminum strands are laid in concentric layers, creating a uniform conductive path and predictable mechanical behavior along the cable length.

3. Low-Resistance Current Path
Electrical-grade aluminum strands provide an efficient route for current flow, supporting stable performance in overhead transmission circuits.

4. Natural Oxide Surface Protection
The bare aluminum surface develops a thin oxide layer that resists weathering in outdoor service, reducing the need for additional coatings.

5. Multiple Size Availability
Produced in a range of nominal cross-sections, allowing selection to match different overhead line designs and load requirements.

​

Application

1. Overhead Power Transmission Lines
   Used as a bare conductor on utility transmission routes where all-aluminum construction suits the span and loading conditions.

2. Medium Voltage Distribution Feeders
   Installed on pole lines serving residential, commercial, and light industrial loads.

3. Rural and Remote Electrification
   Selected for agricultural and remote routes where lightweight conductors simplify installation across difficult terrain.

4. Substation Bus and Jumper Connections
   Applied for internal connections where low resistance and easy handling are beneficial.

5. Reconductoring and Line Extensions
   Deployed to replace ageing conductors or extend existing overhead circuits in transmission and distribution networks.

​

Packing & Delivery

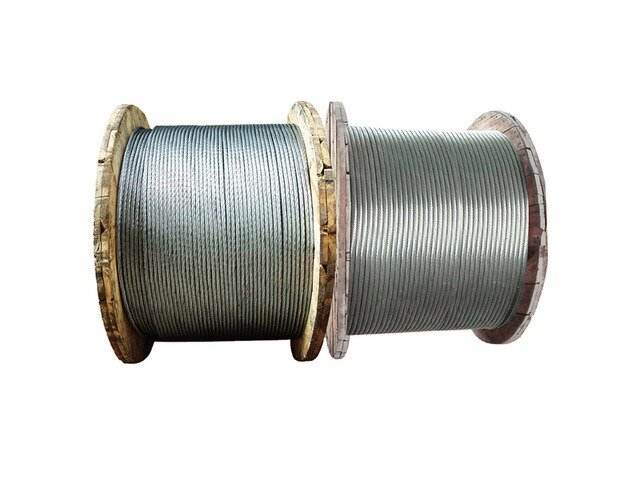

Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.

More Products

Customers Visit

At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

Why Choose Us

1. Standard-Aligned Production
   Manufacturing follows recognized AAC overhead conductor specifications, with routine checks on stranding, resistance, and surface quality.

2. Traceable Material Sourcing
   Electrical-grade aluminum rod is purchased from qualified suppliers, and material certificates are retained for each production batch.

3. Technical Selection Support
   Our engineering team assists with conductor sizing, sag-tension review, and hardware compatibility based on your line design parameters.

4. Flexible Supply and Packaging
   We offer multiple nominal sizes and arrange drum lengths and packaging to suit project logistics and site handling.

5. Complete Compliance Documentation
   Each shipment includes test certificates, dimensional records, and material traceability documents for project verification.
