All Aluminum Cable Stranded Wire AAC Low Voltage Air Insulated Overhead Power Distribution Cable 1 KV/0.6 KV 50A/65A

All Aluminum Cable Stranded Wire AAC Low Voltage Air Insulated Overhead Power Distribution Cable 1 KV/0.6 KV 50A/65A

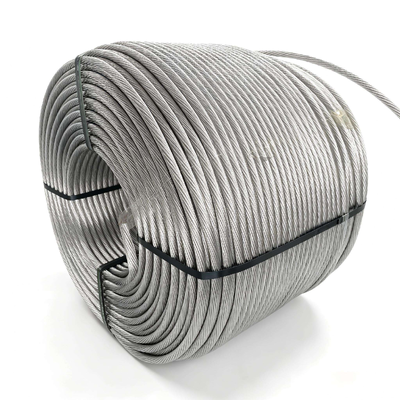

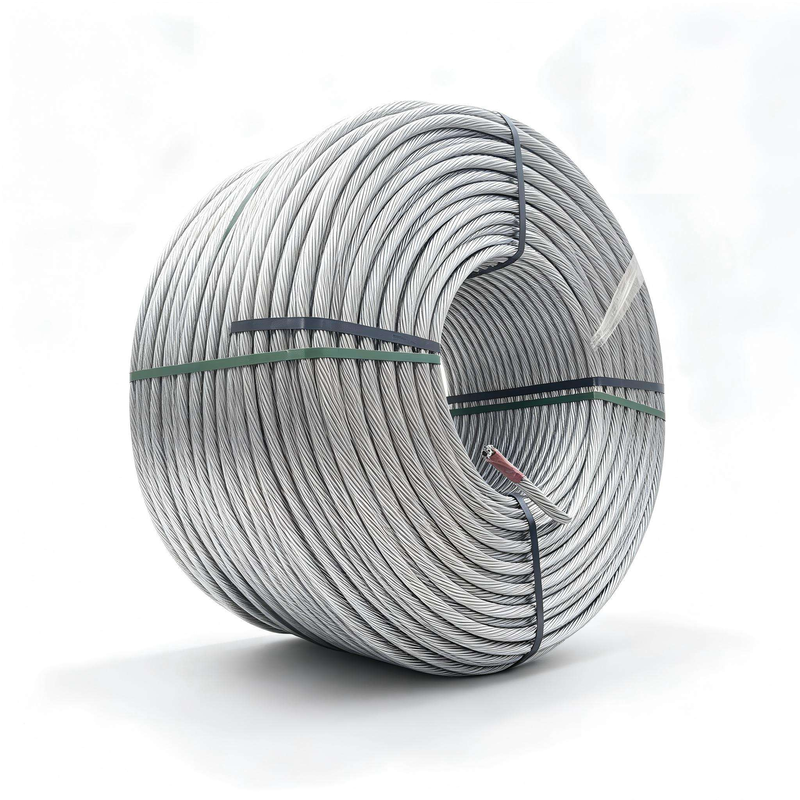

This AAC all aluminum conductor is a bare stranded cable designed for low voltage overhead power distribution at 0.6/1kV. The conductor is manufactured entirely from electrical-grade aluminum wires, stranded in concentric layers without a steel core. Air serves as the natural insulating medium between the bare conductor and surrounding structures, making this cable suitable for short-span utility distribution circuits. The all-aluminum construction simplifies jointing and termination, avoids dissimilar-metal contact at connections, and removes magnetic losses associated with steel-reinforced designs. The bare aluminum surface develops a thin oxide film for outdoor durability. This conductor is available in sizes suitable for distribution currents in the range of 50A to 65A, depending on installation conditions and span length.

Specification


Features

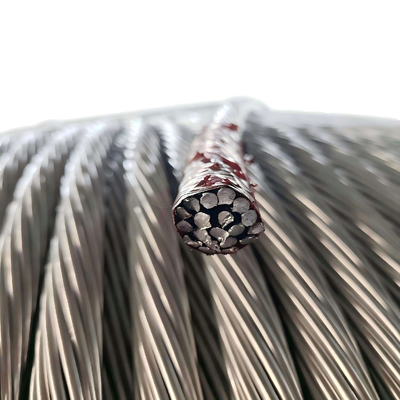

1. All-Aluminum Stranded Construction
   The conductor is made entirely from electrical-grade aluminum wires, without a steel core, which reduces weight and simplifies cutting, splicing, and termination in the field.

2. Air-Insulated Bare Design
   No insulation jacket is applied; air provides the dielectric separation between the conductor and grounded structures, reducing material cost and enabling easy visual inspection.

3. Low Voltage 0.6/1kV Suitability
   Designed for low voltage overhead distribution circuits, compatible with standard utility pole hardware, insulators, and service connections.

4. Natural Oxide Surface Protection
   The bare aluminum surface forms a thin oxide layer that resists weathering in typical outdoor environments, reducing the need for additional protective coatings.

5. Current Range for Distribution Loads
   Available in sizes suited to distribution currents in the 50A to 65A range, depending on ambient conditions, span, and installation configuration.

​

Application

1. Low Voltage Overhead Distribution Lines
   Used as a bare conductor on pole lines supplying residential and light commercial customers at 0.6/1kV.

2. Rural and Remote Feeder Circuits
   Selected for agricultural and remote routes where lightweight all-aluminum construction simplifies installation across difficult terrain.

3. Service Drop Connections
   Applied for short-span connections from distribution poles to building entry points.

4. Street Lighting Feeders
   Used to supply power to lamp posts and small outdoor lighting circuits along public roads.

5. Temporary or Emergency Overhead Lines
   Deployed for construction power and restoration work where easy handling and quick termination are required.

​

Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.

More Products

Customers Visit

At our factory, we take pride in fostering strong relationships with our international clients. Foreign customers visited our facility to gain firsthand experience of our production processes and quality standards. During their visit, they were impressed by our state-of-the-art manufacturing capabilities, commitment to quality, and the dedication of our skilled workforce.

All wires and cables are produced in strict accordance with EC, SAA CCC, ISO, ASTM, DIN, VED, JIS and other standard. As one manufacturer, here we can also provide customized services for various special types of cables according to customer needs.
We always adheres to the enterprise spirit of "quality wins customers, reputation creates benefits", and sincerely welcomes friends from all over the world to visit our company and cooperate.

Why Choose Us

1. Standard-Aligned Production
Manufacturing follows recognized AAC overhead conductor specifications, with routine checks on stranding, resistance, and surface quality.

2. Traceable Material Sourcing
Electrical-grade aluminum rod is purchased from qualified suppliers, and material certificates are retained for each production batch.

3. Technical Selection Support
Our engineering team assists with conductor sizing, sag-tension review, and hardware compatibility based on your distribution line design parameters.

4. Flexible Supply and Packaging
We offer multiple nominal sizes and arrange drum lengths and packaging to suit project logistics and site handling.

5. Complete Compliance Documentation
Each shipment includes test certificates, dimensional records, and material traceability documents for project verification.
