High Voltage ALL Aluminum Stranded Conductors 25mm2 50mm2 95mm2 120mm2 AAC Bare Overhead Construction Application

High Voltage ALL Aluminum Stranded Conductors 25mm2 50mm2 95mm2 120mm2 AAC Bare Overhead Construction Application

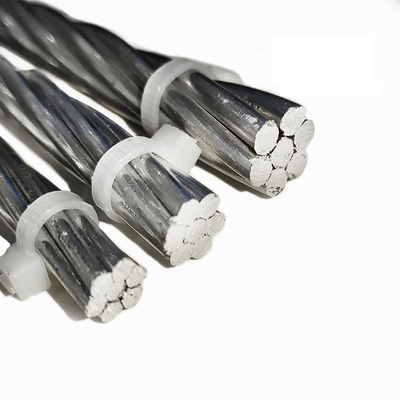

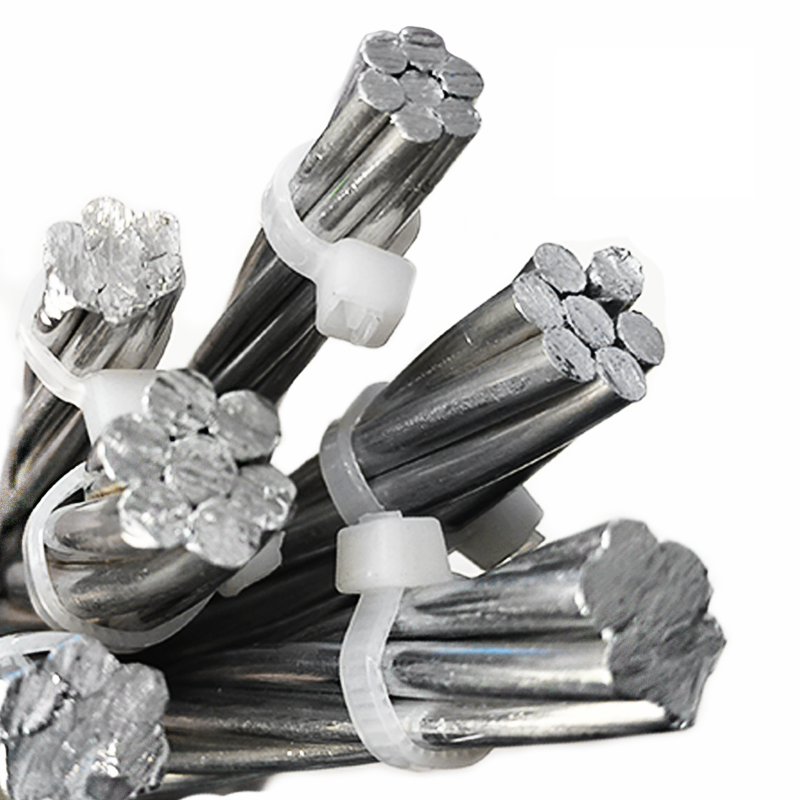

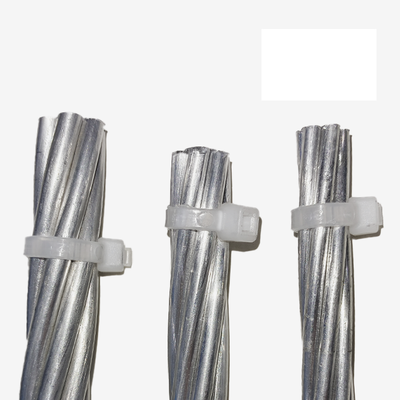

This AAC all aluminum conductor is a bare stranded cable made entirely from electrical-grade aluminum wires arranged in concentric layers. It is offered in nominal sizes including 25mm², 50mm², 95mm², and 120mm², making it suitable for high voltage overhead construction applications. Because no steel core is used, the conductor relies on its aluminum strands for both current conduction and mechanical support. This design reduces weight, simplifies splicing and termination, and eliminates magnetic losses associated with steel-reinforced cables. The bare aluminum surface forms a natural oxide film that resists weathering, while the absence of dissimilar metals at connections helps avoid galvanic corrosion.

Specification


Features

1. Multiple Nominal Sizes
Available in many sizes, giving designers flexibility to match different overhead line configurations and load requirements.

2. All-Aluminum Stranded Construction
The conductor contains no steel core, which reduces weight and simplifies cutting, splicing, and termination in the field.

3. Concentric Lay Arrangement
Aluminum wires are stranded in concentric layers, creating a uniform current path and predictable mechanical behavior along the cable length.

4. Bare Overhead Design
Air provides the insulating medium between the conductor and grounded structures, and the absence of a jacket allows easy visual inspection.

5. Natural Oxide Protection
The bare aluminum surface develops a thin oxide layer that resists weathering in outdoor service, reducing the need for added coatings.

​

Application

1. High Voltage Overhead Transmission Lines
   Used as a bare conductor on utility routes where all-aluminum construction suits the span and loading conditions.

2. Medium Voltage Distribution Feeders
   Installed on pole lines serving residential, commercial, and light industrial loads.

3. Rural and Remote Electrification
   Selected for agricultural and remote routes where lightweight conductors simplify installation across difficult terrain.

4. Substation Bus and Jumper Connections
   Applied for internal links where low resistance and easy handling are beneficial.

5. Reconductoring and Line Extensions
   Deployed to replace aging conductors or extend existing overhead circuits in transmission and distribution networks.

​

Packing & Delivery
Wooden drums with dimater 1.1m, 1.2m, 1.6m, 1.8m and 2.2m etc.

Aluminium conductors are commonly wound onto wooden or steel reels, which provide protection during transport and handling.

According to customers request.
