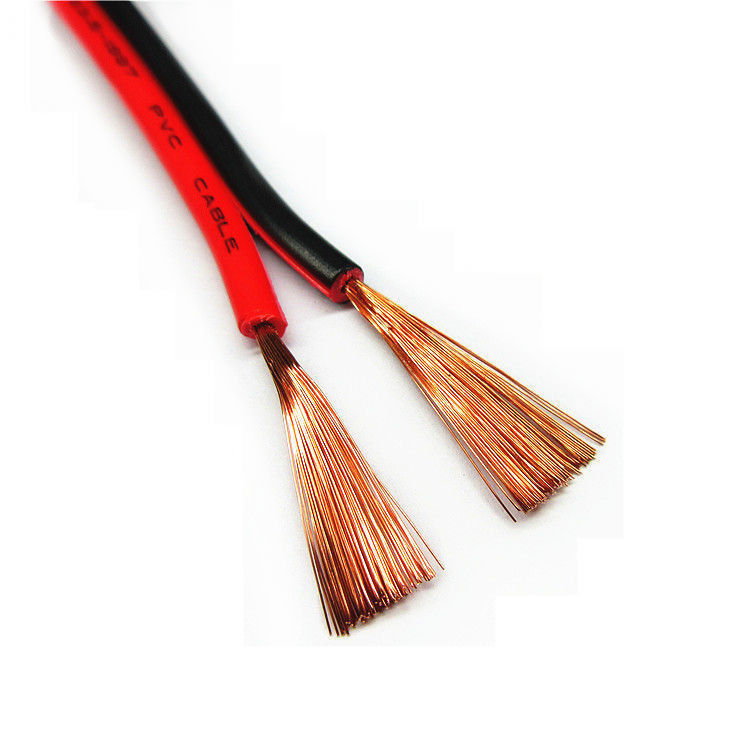

PVC Cover Solid Strand TW THW LV Power Cable

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	THW-002

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	USD0.16-125 per meter
Packaging Details:	100m one roll with plastic bag or as clients' requirement
Delivery Time:	1-15days
Payment Terms:	D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Insulation Material:	PVC	Type:	Low Voltage Power Cable
Application:	Power Distribution	Conductor Material:	Annealed Copper
Packing:	100m One Roll	Production Capacity:	3000km Per Month
High Light:	THW LV Power Cable , TW LV Power Cable , THW lv abc cable

600V Pvc Cover Solid /Strand Electrical TW/THW Low Voltage Power Cable
Application and Standard:
(1)Type TW and THW wire may be used for general purpose wiring for power and lighting, for insulation in air, conduit, duct or other recognized raceways, in wet or dry locations. Maximum voltage rating:600 V
(2)ASTM B3, B8.
UL 83 - Thermoplastic-Insulated Wires and Cables.
UL1581 - Electrical Wires, Cables and Flexible Cords.

THW wire Cable Structure:
1. Conductor:Bare annealed copper conductor, solid or stranded.
2. Insulation:moisture-resistant, polyvinyl chloride (PVC) insulation
3. Red,Black, White,Green,Blue,Yellow,Orange Or customize as per the customer's request

Working Condition THW wire:
1. For installation in conduits and other raceways
2. Oil and grease resistant insulation
3. Abrasion and crush resistant
4. THW insulation is flame retardant PVC and meets the UL VW-1 flame test
5. Maximum continuous conductor temperature: 75°C Dry, 75°C Wet

Specification for THW wire :

MAXIMUM CONDUCTOR TEMPERATURE
type	oil	wet	dry
TW	60ºC	60ºC	60ºC
THW	75ºC	75ºC	75ºC
MTW*	60ºC	60ºC	90ºC

Core Nos.: 1core, 2core, 3core, 4core,5core
Nominal Section Area:0.5mm2,0.75mm2,1.0mm2,1.5mm2, 2.5mm2, 4.0mm2, 6.0mm2........240mm2(More size and specification can be customized)

AWG/MCM	mm2	Conductor	Conductor			Insulation					Total Weight
		Type	Single Wire		OD.	PVC					kg/km
			No.	Dia.		Thick	mm	Thick	min	OD.
			No.	Dia.		mils	mm	Thick	min	OD.
18	0.82	solid	1	1.02	1.02	30	0.76	0.89	0.7	2.54	14.82
16	1.31	solid	1	1.29	1.29	30	0.76	0.89	0.7	2.81	20.27
14	2.09	solid	1	1.63	1.63	30	0.76	0.89	0.7	3.15	28.6
12	3.33	solid	1	2.06	2.06	30	0.76	0.89	0.7	3.58	41.48
10	5.27	solid	1	2.59	2.59	30	0.76	0.89	0.7	4.11	60.93
8	8.35	solid	1	3.26	3.26	45	1.14	1.22	1	5.54	98.99
6	13.33	solid	1	4.12	4.12	60	1.52	1.67	1.4	7.16	162.23
4	21.16	solid	1	5.19	5.19	60	1.52	1.67	1.4	8.23	240.34
18	0.82	B	7	0.386	1.158	30	0.76	0.89	0.7	2.678	15.65
16	1.31	B	7	0.488	1.464	30	0.76	0.89	0.7	2.984	21.43
14	2.08	B	7	0.615	1.845	30	0.76	0.89	0.7	3.365	30.1
12	3.3	B	7	0.775	2.325	30	0.76	0.89	0.7	3.845	43.38
10	5.26	B	7	0.978	2.934	30	0.76	0.89	0.7	4.454	64.02
8	8.32	B	7	1.23	3.69	45	1.14	1.22	1	5.97	103.92
6	13.21	B	7	1.55	4.65	60	1.52	1.67	1.4	7.69	169.62
4	21.12	B	7	1.96	5.88	60	1.52	1.67	1.4	8.92	252.44
2	33.54	B	7	2.47	7.41	60	1.52	1.67	1.4	10.45	379.53
1	42.62	B	19	1.69	8.18	80	2.03	2.11	1.8	12.24	480.75
1/0	53.3	B	19	1.89	9.19	80	2.03	2.11	1.8	13.25	586.71
2/0	67.7	B	19	2.13	10.34	80	2.03	2.11	1.8	14.4	727.52
3/0	85.24	B	19	2.39	11.61	80	2.03	2.11	1.8	15.67	897.84
4/0	107.18	B	19	2.68	13	80	1.52	1.67	1.4	16.44	1097.15
250	126.94	B	37	2.09	14.2	95	2.41	2.56	2.2	19.02	1340.08
300	152.39	B	37	2.29	15.54	95	2.41	2.56	2.2	20.36	1586.07
350	177.29	B	37	2.47	16.79	95	2.41	2.56	2.2	21.61	1825.98
400	202.53	B	37	2.64	17.96	95	2.41	2.56	2.2	22.78	2068.12
500	252.89	B	37	2.95	20.04	95	2.41	2.56	2.2	24.86	2548.31
600	304.24	B	61	2.52	22	110	2.79	2.89	2.5	27.58	3084.92
750	380.99	B	61	2.82	24.64	110	2.79	2.89	2.5	30.22	3816.9
1000	506.04	B	61	3.25	28.4	110	2.79	2.89	2.5	33.98	5002.6
