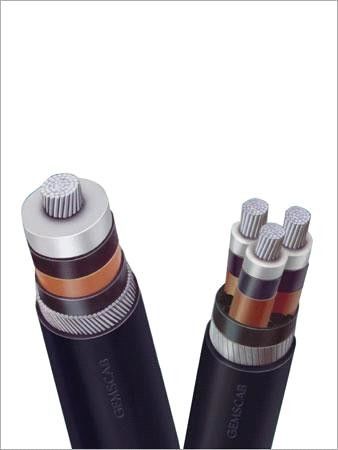

Underground XLPE LV Power Cable Aluminum 1350-H19 Conductor

Underground XLPE LV Power Cable Aluminum 1350-H19 Conductor

  • Underground XLPE LV Power Cable Aluminum 1350-H19 Conductor
Underground XLPE LV Power Cable Aluminum 1350-H19 Conductor
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: LV Power Cable
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: Negotiable
Packaging Details: Wooden drum 1100*400*700*800mm
Delivery Time: 1-15days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Conductor: 1350-H19 Insulation: XLPE
Name: LV Power Cable Application: Electric Lines
Payment Terms:: FOB , CFR , CIF Standard: ASTM , BS , IEC

Underground XLPE LV Power Cable Aluminum 1350-H19 Conductor



Designed for secondary distribution and underground service at 600 volts or less.

  • Complete Cable:
    • Aluminum conductor insulated with Extruded Cross-Linked Polyethylene (XLPE)
    • Manufactured and tested in accordance with ANSI/ICEA Standard S-105-692
    • When specified, cable is produced in accordance with UL 854 and listed as a Type USE-2 cable
  • Conductors:
    • Class B compressed aluminum 1350-H19 meeting the requirements of ASTM B231 or B786
  • Insulation:
    • Insulation is Extruded Black Cross-Linked Polyethylene (XLPE)

Aluminum Single Conductor Underground Power Cable Features and Benefits:

  • Suitable for direct burial or installations in ducts
  • Resistant to abrasion, sunlight, and impact
  • For NEC-complying applications, the maximum conductor operating temp is 90°C in wet or dry locations
  • Also suitable for non-code-complying temperature of 90°C in wet or dry locations n accordance with ICEA specifications

Aluminum Single Conductor Underground Power Cable Applications:

  • Intended for use in underground systems operated at 600 volts or less.

Aluminum Single Conductor Underground Power Cable Options:

  • Aluminum 1350-H16 conductor
  • Copper conductors
  • Sizes 250 - 500 kcmil available with UL-allowed thin wall (0.080") insulation
  • CDC Combined Duct & Cable
  • Reeless Package
  • Alloy 8000 Aluminum Conductor
  • Type RHH/RHW-2 rating to UL 44
  • Type USE-2 per UL 44

(1).Description

Cu Core AL Core Description

VV

VH-VV

VLV

NH-VLV

Cu(Al)Core PVC Insulated PVC Sheathed Power Cable

Cu(Al)Core PVC Insulated PVC Sheathed Fire Resistant Cable

VY

NH-VY

VLY

NH-VLY

Cu(Al)Core PVC Insulated PE Sheathed Power Cable

Cu(Al)Core PVC Insulated PE Sheathed Fire Resistant Cable

VV22

NH-VV22

VLV22

NH-VLV22

Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Power Cable

Cu(Al)Core PVC Insulated Steel Tape Armored PVC Sheathed Fire Resistant Cable

VV23

NH-VV23

VLV23

NH-VLV23

Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Power Cable

Cu(Al)Core PVC Insulated Steel Tape Armored PE Sheathed Fire Resistant Cable

VV32

NH-VV32

VLV32

NH-VLV32

Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Power Cable

Cu(Al)Core PVC Insulated Fire Steel Wire Armored PVC Sheathed Fire Resistant Cable

VV33

NH-VV33

VLV33

NH-VLV33

Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Power Cable

Cu(Al)Core PVC Insulated Fire Steel Wire Armored PE Sheathed Fire Resistant Cable



Cu Core AL Core Description

VV42

VH-VV42

VLV42

NH-VLV42

Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Power Cable

Cu(Al)Core PVC Insulated Thick Steel Wire Armored PVC Sheathed Fire Resistant Cable

VV43

VH-VV43

VLV43

NH-VLV43

Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Power Cable

Cu(Al)Core PVC Insulated Thick Steel Wire Armored PE Sheathed Fire Resistant Cable



Underground XLPE LV Power Cable Aluminum 1350-H19 Conductor 0
