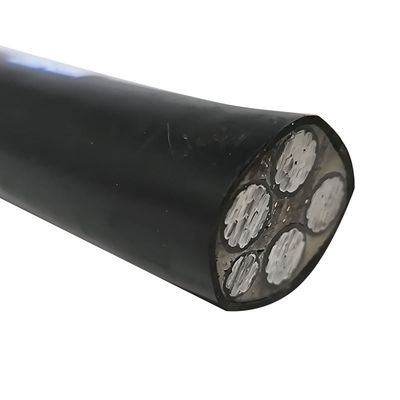

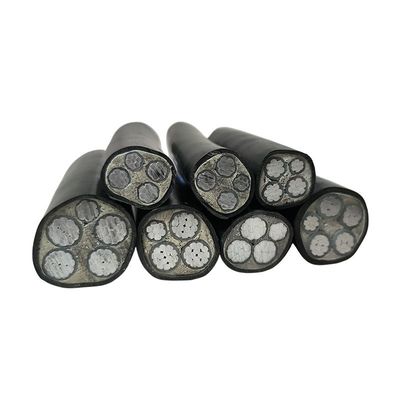

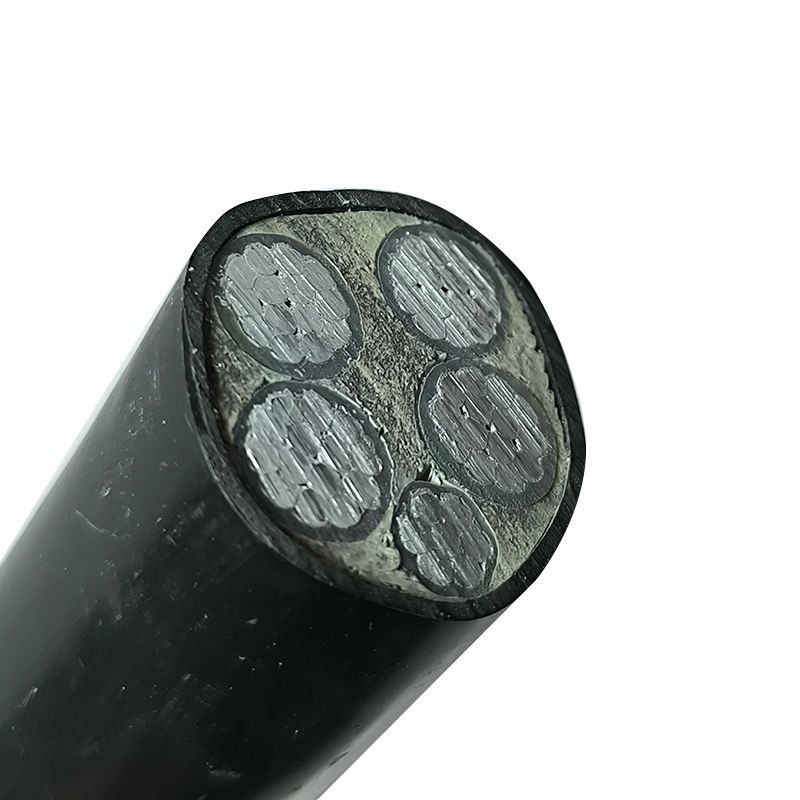

XLPE Insulated LV Power Cable Aluminum Conductor 0.6/1KV For Building Wiring

XLPE Insulated LV Power Cable Aluminum Conductor 0.6/1KV For Building Wiring

Conductor

Service Drop Cable Meets or Exceeds the Following Specifications

1). Aluminum Wire,1350-H19 for Electrical Purposes;

2). Aluminum Conductors,Concentric-Lay-Stranded;

3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);

4). Concentric-Lay-Stranded 6201-T81 Conductors;

5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;

Cable's Characteristics

1). Max.admissible long time operating to conductor:

PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;

2). Installing temperature should not be below -20℃;

3). Admissible bending radius:

When overall-diameter(D)is less than 25mm,it should be not less than 4D;

When overall-diameter(D) is 25mm or more,it should be not less than 6D;

Triplex Service Drop

Duplex Service Drop

Producing Process

High-purity copper conductors undergo precision extrusion for uniform insulation, followed by rigorous dielectric testing.

Applications

• Inter-row connections in utility-scale solar farms

• Floating photovoltaic installations on water reservoirs

• Building-integrated photovoltaics (BIPV) with direct sunlight exposure

• Tracking system loop circuits requiring constant flex endurance

Packing & Shipping

Packaging Details
Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.

Delivery Time

Generally it is 5-10 days if the goods are in stock,or it is 15.
