LUOYANG SANWU CABLE CO.,LTD.
Professional Cable and Conductor Manufacturer

|
| Place of Origin: | Henan |
| Brand Name: | Sanwu |
| Certification: | ISO CCC |
| Model Number: | LV Power Cable |
| Minimum Order Quantity: | 1000M |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard exported wooden drum or reels |
| Delivery Time: | 1-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 200 tons per day |
| Place Of Original: | Henan, China | Rated Voltage: | 0.6/1kV |
|---|---|---|---|
| Insulated: | XLPE PE LDPE PVC | Type: | Low Voltage |
| Packing: | Treated Wooden Drum | Application: | Power Distribution |
These cables power civilization’s critical systems – from hospitals to factories – using layered material science for hazard resistance. Thermoplastic or thermoset insulations guard against moisture, heat, and mechanical stress. Advantages include minimal maintenance requirements, adaptability for retrofitting existing networks, and sustainable construction meeting RoHS directives.
Cable meets or exceeds the following ASTM specifications:
· B-230 Aluminum Wire, 1350-H19 for Electrical Purposes.
· B-231 Aluminum Conductors, Concentric-Lay-Stranded.
· B-232 Aluminum Conductors, Concentric-Lay-Stranded, Coated Steel Reinforced (ACSR).
· B-399 Concentric-Lay-Stranded 6201-T81 Aluminum Alloy Conductors.
· B-901 Compressed Round Stranded Aluminum Conductors Using Single Input Wire
Conductor:
| Phase Conductor | Bare Neutral Messenger |
| AAC | AAC |
| ACSR | |
| Alloy |
Service Drop Cable Meets or Exceeds the Following Specifications:
1). Aluminum Wire,1350-H19 for Electrical Purposes;
2). Aluminum Conductors,Concentric-Lay-Stranded;
3). Aluminum Conductor,Concentric-Lay-Stranded,Coated Steel Reinforced(ACSR);
4). Concentric-Lay-Stranded 6201-T81 Conductors;
5). Service drop cable meets or exceeds all applicable requirements of ANSI/ICEA S-76-474;
Cable's Characteristics:
1). Max.admissible long time operating to conductor:
PVC or PE insulated should not exceed 70℃,XLPE insulated should not exceed 90℃;
2). Installing temperature should not be below -20℃;
3). Admissible bending radius:
When overall-diameter(D)is less than 25mm,it should be not less than 4D;
When overall-diameter(D) is 25mm or more,it should be not less than 6D;
Triplex Service Drop
| Code name | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight | Allowable Ampacities(A) | ||||
| ACSR | Rated Strength lbs. | AAC | Insul.Thick.Mm | ||||||
| No.&Dia.Mm | No.& Dia.Mm | No. & Dia.Mm | kg/km | XLPE | PE | ||||
| Paludina | 2*6AWG+1*6AWG | 1*1.68 | 6*1.68 | 1190 | 1*4.11 | 1.14 | 166 | 85 | 70 |
| Voluta | 2*6AWG+1*6AWG | 1*1.68 | 6*1.68 | 1190 | 7*1.56 | 1.14 | 170 | 85 | 70 |
| Whelk | 2*4AWG+1*4AWG | 1*2.12 | 6*2.12 | 1860 | 1*5.19 | 1.14 | 251 | 115 | 90 |
| Periwinkle | 2*4AWG+1*4AWG | 1*2.12 | 6*2.12 | 1860 | 7*1.96 | 1.14 | 255 | 115 | 90 |
| Conch | 2*2AWG+1*2AWG | 1*2.67 | 6*2.67 | 2850 | 7*2.47 | 1.14 | 389 | 150 | 120 |
| Neritina | 2*1/0AWG+1*1/0AWG | 1*3.37 | 6*3.37 | 4380 | 7*3.12 | 1.52 | 624 | 205 | 160 |
| Cenia | 2*1/0AWG+1*1/0AWG | 1*3.37 | 6*3.37 | 4380 | 19*1.89 | 1.52 | 625 | 205 | 160 |
Duplex Service Drop
| Code word | AWG or kcmil | Bare Neutral Messenger | Phase Conductor | Weight | Allowable Ampacities(A) | |||
| ALLOY | Rated Strength libs. | A AC | Insul.Thick.Mm | |||||
| Number & Dia.Mm | Number&Dia.Mm | kg/km | XLPE | PE | ||||
| Chihuahua | 1*6AWG+1*30.58 | 7*1.68 | 1110 | 1*4.11 | 1.14 | 98 | 85 | 70 |
| Vizsla | 1*6AWG+1*30.58 | 7*1.68 | 1110 | 7*1.56 | 1.14 | 100 | 85 | 70 |
| Harrier | 1*4AWG+1*48.69 | 7*2.12 | 1760 | 1*5.19 | 1.14 | 149 | 115 | 90 |
| Whippet | 1*4AWG+1*48.69 | 7*2.12 | 1760 | 7*1.96 | 1.14 | 151 | 115 | 90 |
| Schnauzer | 1*2AWG+1*77.47 | 7*2.67 | 2800 | 7*2.47 | 1.14 | 231 | 150 | 120 |
| Heeler | 1*1/0AWG+1*123.3 | 7*3.37 | 4460 | 19*1.89 | 1.52 | 372 | 205 | 160 |
Producing Process
Applications
Dynamic positioning thruster connections on vessels
Offshore wind turbine transition piece power distribution
Floating production storage offloading (FPSO) deck lighting
Desalination plant seawater intake pump circuits
Packing & Shipping
Packaging Details

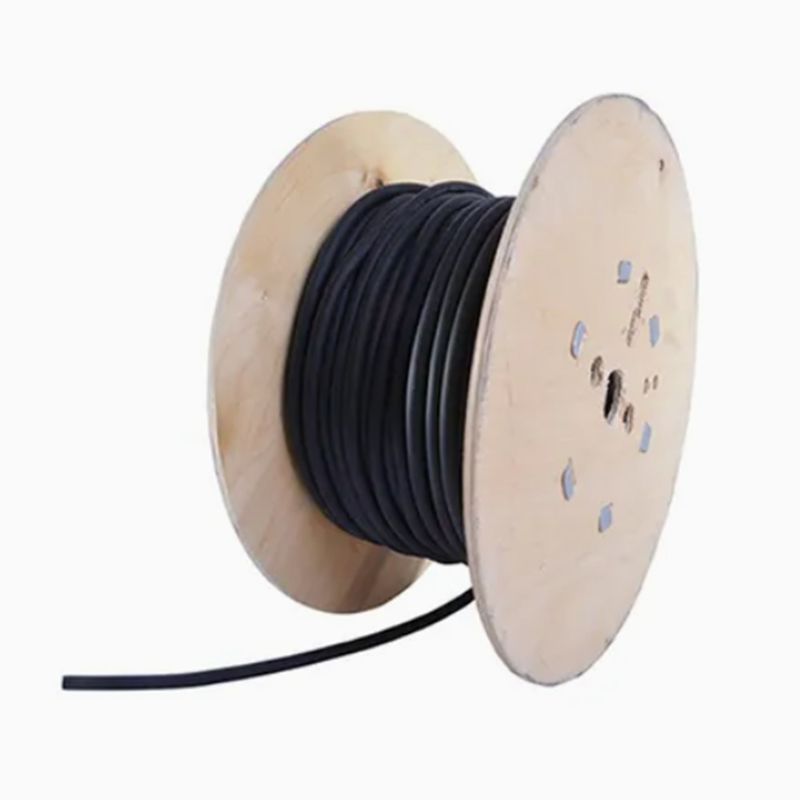

Wooden package optional:
Size: 0.5*0.5*0.5m
0.6*0.6*0.6m; 0.7*0.7*0.7m
1.1*1.1*0.8m; 2.2*2.2*1.8m
Or suitable meters according to your needs.
Why Choose Us
Floatation capability, kink resistance, and non-absorbent design.
FAQ
Q: Are you trading company or manufacturer ?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment.L/C is also available.
Reduce installation costs—ask about bulk project discounts.
