Cable Manufacturer High Quality Overhead Cable Xlpe Insulated Aluminum Stranded Cable for Power Transmission

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	xlpe insulated cables

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	USD 0.2-20 per meter
Packaging Details:	wooden drums
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	XLPE Shielded Cable	Insulation:	XLPE
Rated Voltage:	0.6-1kv	Standard:	IEC 60502-1
Sheath:	PVC	Package:	Wooden Drum
Conductor Type:	Stranded	Application:	Power Distribution, Construction, Underground, Etc.
Highlight:	XLPE insulated aluminum stranded cable , overhead power transmission cable , high quality XLPE cable

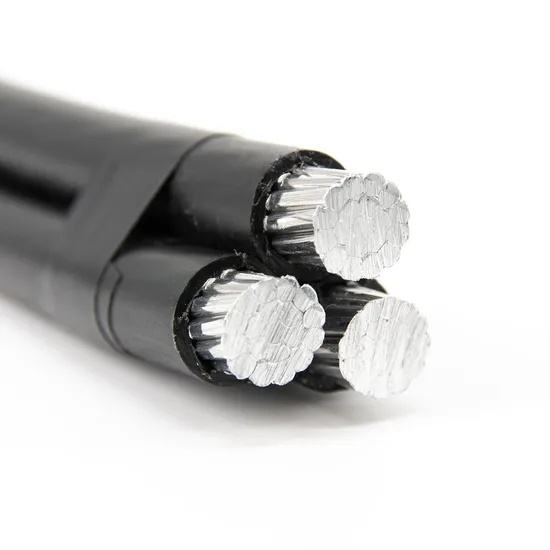

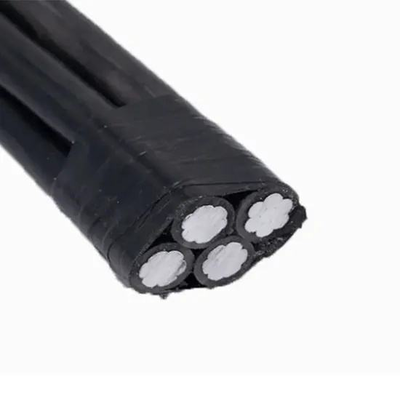

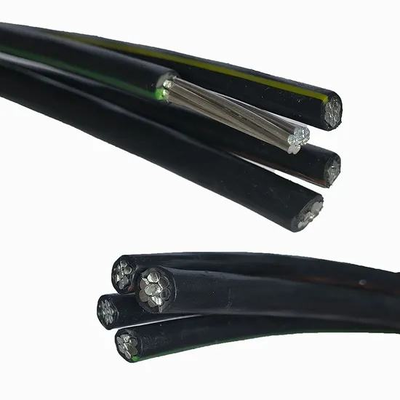

High Quality Overhead Cable - XLPE Insulated Aluminum Stranded Cable

We supply high-quality overhead power transmission cables featuring stranded aluminum conductors insulated with cross-linked polyethylene (XLPE). The conductor is formed from multiple aluminum wires stranded in concentric layers, providing both flexibility and mechanical strength for overhead installation. The XLPE insulation is applied through a continuous vulcanization process, resulting in a thermosetting layer that maintains its electrical and mechanical properties across a wide range of operating temperatures.

This cable is designed for fixed overhead deployment on utility poles or towers, serving as a reliable transmission medium from substations to distribution points. Its insulated construction reduces electrical clearance constraints and minimizes fault incidence caused by environmental contact, making it a preferred choice for both new line installations and reconductoring projects.

Product Specifications

Standard: IEC 60502-1

Specification (mm²)	Conductor Structure	Insulation Material	Insulation Thickness (mm)	Approx Overall Diameter (mm)	Approx Weight (kg/km)
1×16+1×16	7/1.72	XLPE or PVC/PE	1.2	12.5	110.1
1×25+1×25	7/2.15	XLPE or PVC/PE	1.2	14.9	163.9
1×35+1×35	7/2.54	XLPE or PVC/PE	1.4	17.5	229.0
1×50+1×50	7/2.92	XLPE or PVC/PE	1.4	20.1	300.0
1×70+1×70	19/2.15	XLPE or PVC/PE	1.4	23.6	423.2
1×95+1×95	19/2.54	XLPE or PVC/PE	1.6	27.6	585.4
2×16+1×16	7/1.72	XLPE or PVC/PE	1.2	14.2	175.8
2×25+1×25	7/2.15	XLPE or PVC/PE	1.2	16.7	258.4
2×35+1×35	7/2.54	XLPE or PVC/PE	1.4	19.7	361.2
2×50+1×50	7/2.92	XLPE or PVC/PE	1.4	22.5	472.1
2×70+1×70	19/2.15	XLPE or PVC/PE	1.4	26.1	658.3
2×95+1×95	19/2.54	XLPE or PVC/PE	1.6	30.5	908.2
3×16+1×16	7/1.72	XLPE or PVC/PE	1.2	16.3	241.5
3×25+1×25	7/2.15	XLPE or PVC/PE	1.2	19.1	353.6
3×35+1×35	7/2.54	XLPE or PVC/PE	1.4	22.5	493.5
3×50+1×50	7/2.92	XLPE or PVC/PE	1.4	25.7	644.1
3×70+1×70	19/2.15	XLPE or PVC/PE	1.4	29.7	895.2
3×95+1×95	19/2.54	XLPE or PVC/PE	1.6	34.6	1233.5

Manufacturing Process

Applications

Overhead Transmission Feeders - Primary conductors for medium-voltage power lines connecting generating stations to regional substations
Urban Distribution Networks - Deployed along city streets and residential areas where reduced clearances and improved safety justify insulated conductors
Rural Electrification Backbones - Installed on pole lines crossing agricultural land and forested terrain to reduce outage risks
Industrial Facility Supply - Overhead incoming feeders for factories, mines, and processing plants requiring reliable power delivery
Reconductoring and Line Upgrades - Replacing aging bare conductors or old insulated cables to improve system reliability

Packaging & Delivery

Packaging Details

Wooden package options available in various sizes: 0.5×0.5×0.5m, 0.6×0.6×0.6m, 0.7×0.7×0.7m, 1.1×1.1×0.8m, 2.2×2.2×1.8m, or customized dimensions according to your requirements.

Delivery Time

Standard delivery is 5-10 days for in-stock items, or 15 days for custom orders.

Why Choose Our Overhead Cables

Quality-Focused Manufacturing - Consistent production processes with in-process inspections covering conductor stranding, insulation application, and finished cable testing
Material Traceability - All raw materials sourced from qualified suppliers with documented certificates and full batch traceability
Technical Support for Installation - Engineering guidance on cable handling, stringing tension, and fitting selection for optimal performance
Responsive Customization - Accommodate requirements for conductor cross-sections, insulation thickness, and packaging configurations

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer.

How long is your delivery time?

Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but the customer pays for freight costs.

What are your payment terms?

Payment ≤1000USD: 100% in advance. Payment ≥1000USD: 30% T/T in advance, balance before shipment. L/C also available.
