ABC Cable XLPE PVC PE Insulated Aerial Bundled Cable For Power Transmission

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	xlpe insulated cables

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	USD 0.2-20 per meter
Packaging Details:	wooden drums
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	XLPE Shielded Cable	Insulation:	XLPE
Rated Voltage:	0.6-1kv	Standard:	IEC 60502-1
Sheath:	PVC	Package:	Wooden Drum
Conductor Type:	Stranded	Application:	Power Distribution, Construction, Underground, Etc.
Highlight:	XLPE insulated aerial bundled cable , PVC PE insulated power transmission cable , ABC cable for power transmission

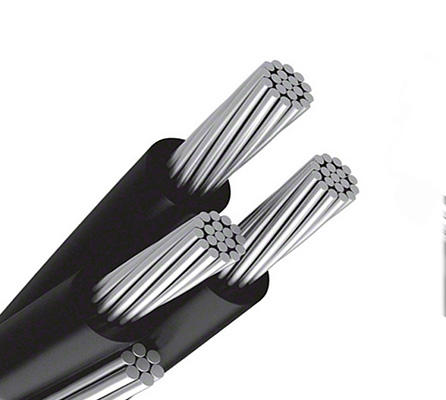

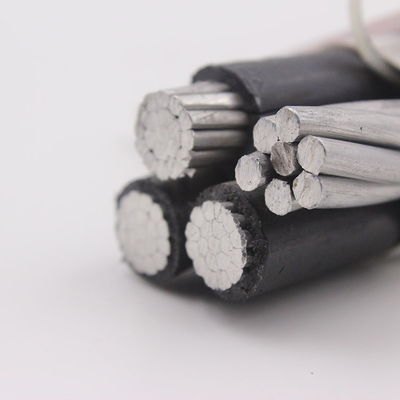

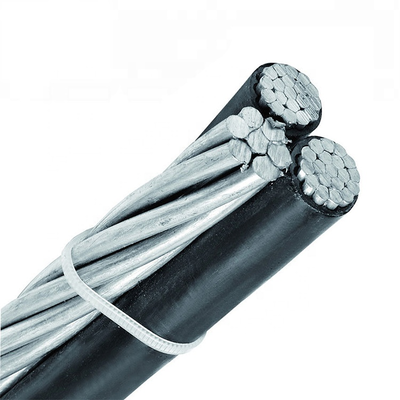

ABC Cable XLPE PVC PE Insulated Aerial Bundled Cable

This Aerial Bundled Cable (ABC) is engineered for overhead power transmission, featuring aluminium or copper conductors insulated with cross-linked polyethylene (XLPE), polyvinyl chloride (PVC), or polyethylene (PE) depending on application requirements. The cable consists of multiple insulated phase conductors twisted together with a neutral messenger, forming a compact, self-supporting bundle that eliminates the need for separate spacer wires.

The insulation system provides thermal stability, dielectric strength, and resistance to environmental factors such as UV radiation, moisture, and temperature cycling. Designed for fixed overhead installation on utility poles, this ABC cable delivers reliable power transmission across medium-voltage distribution networks, reducing fault incidence and maintenance frequency compared to bare conductor systems.

Technical Specifications

Standard: IEC 60502-1

SPEC mm²	Conductor Structure	Insulation Material	Insulation Thickness (mm)	Approx Overall Diameter (mm)	Approx Weight (kg/km)
116+116	7/1.72	XLPE or PVC/PE	1.2	12.5	110.1
125+125	7/2.15	XLPE or PVC/PE	1.2	14.9	163.9
135+135	7/2.54	PVC or PE	1.4	17.5	229.0
150+150	7/2.92	PVC or PE	1.4	20.1	300.0
170+170	19/2.15	PVC or PE	1.4	23.6	423.2
195+195	19/2.54	PVC or PE	1.6	27.6	585.4
216+116	7/1.72	XLPE or PVC/PE	1.2	14.2	175.8
225+125	7/2.15	XLPE or PVC/PE	1.2	16.7	258.4
235+135	7/2.54	PVC or PE	1.4	19.7	361.2
250+150	7/2.92	PVC or PE	1.4	22.5	472.1
270+170	19/2.15	PVC or PE	1.4	26.1	658.3
295+195	19/2.54	PVC or PE	1.6	30.5	908.2
316+116	7/1.72	XLPE or PVC/PE	1.2	16.3	241.5
325+125	7/2.15	XLPE or PVC/PE	1.2	19.1	353.6
335+135	7/2.54	PVC or PE	1.4	22.5	493.5
350+150	7/2.92	PVC or PE	1.4	25.7	644.1
370+170	19/2.15	PVC or PE	1.4	29.7	895.2
395+195	19/2.54	PVC or PE	1.6	34.6	1233.5

Manufacturing Process

Applications

Primary and Secondary Distribution Networks - Deployed as overhead feeders from substations to load centres in urban, suburban, and rural areas
Industrial and Commercial Complexes - Used for overhead power supply within factory premises and business parks
Rural Electrification Backbones - Installed across agricultural land and forested regions
Line Reconstruction Projects - Replacing aged bare conductors in existing networks
Temporary Power Supply Installations - Applied in construction sites and emergency restoration scenarios

Packaging & Delivery

Packaging Details

Wooden package options available in various sizes: 0.5×0.5×0.5m, 0.6×0.6×0.6m, 0.7×0.7×0.7m, 1.1×1.1×0.8m, 2.2×2.2×1.8m, or custom sizes according to your requirements.

Delivery Time

Generally 5-10 days if goods are in stock, or 15-20 days for out-of-stock items depending on quantity.

Why Choose Our ABC Cables

Material Versatility - XLPE, PVC, and PE insulation options for specific voltage and environmental conditions
Manufacturing Consistency - Continuous monitoring systems ensure uniform insulation thickness and quality
Technical Advisory Support - Engineering assistance for conductor sizing and installation compatibility
Customised Packaging and Marking - Accommodate requirements for drum lengths and core identification

Frequently Asked Questions

Are you a trading company or manufacturer?

We are a manufacturer.

How long is your delivery time?

Generally 5-10 days if goods are in stock, or 15-20 days if goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we offer samples free of charge but customers pay the freight cost.

What are your payment terms?

Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment. L/C also available.
