0.6/1kv Overhead Aluminium Conductor XLPE Insulated Electric Cables Quadruplex Duplex Triplex Service Drop Electrical Wire ABC Cable

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	xlpe insulated cables

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	USD 0.2-20 per meter
Packaging Details:	wooden drums
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	XLPE Shielded Cable	Insulation:	XLPE
Rated Voltage:	0.6-1kv	Standard:	IEC 60502-1
Sheath:	PVC	Package:	Wooden Drum
Conductor Type:	Stranded	Application:	Power Distribution, Construction, Underground, Etc.
Highlight:	0.6/1kv overhead aluminium conductor cable , XLPE insulated ABC electrical wire , quadruplex duplex triplex service drop cable

0.6/1kV Overhead Aluminium Conductor XLPE Insulated Electric Cables

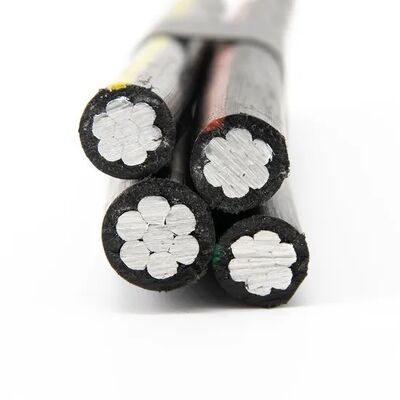

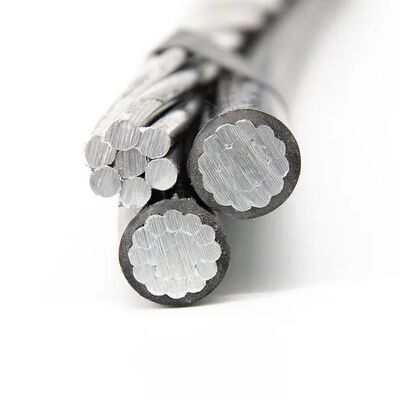

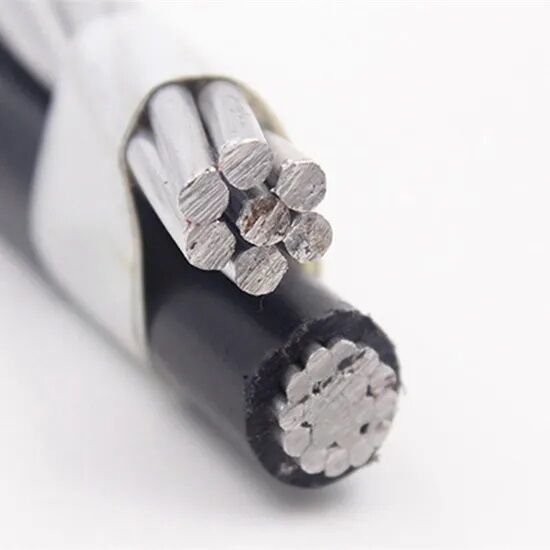

This overhead service drop cable is manufactured as an Aerial Bundled Cable (ABC) with aluminium conductors insulated with cross-linked polyethylene (XLPE), rated for low-voltage distribution at 0.6/1kV. The cable is available in duplex, triplex, or quadruplex configurations, allowing matching to single-phase, two-phase, or three-phase service requirements.

Key Features

Individual XLPE insulation providing thermal stability and resistance to moisture and UV exposure
Compact twisted bundle design for direct pole-to-building installation
Eliminates need for separate neutral messengers in many configurations
Improved safety and reliability compared to bare open-wire drops
Suitable for areas with vegetation or limited clearance

Technical Standards

IEC 60502-1

Specifications

SPEC mm²	Conductor Structure	Insulation Material	Insulation Thickness (mm)	Approx Overall Diameter (mm)	Approx Weight (kg/km)
116+116	7/1.72	XLPE or PVC/PE	1.2	12.5	110.1
125+125	7/2.15	XLPE or PVC/PE	1.2	14.9	163.9
135+135	7/2.54	XLPE or PVC/PE	1.4	17.5	229.0
150+150	7/2.92	XLPE or PVC/PE	1.4	20.1	300.0
170+170	19/2.15	XLPE or PVC/PE	1.4	23.6	423.2
195+195	19/2.54	XLPE or PVC/PE	1.6	27.6	585.4
216+116	7/1.72	XLPE or PVC/PE	1.2	14.2	175.8
225+125	7/2.15	XLPE or PVC/PE	1.2	16.7	258.4
235+135	7/2.54	XLPE or PVC/PE	1.4	19.7	361.2
250+150	7/2.92	XLPE or PVC/PE	1.4	22.5	472.1
270+170	19/2.15	XLPE or PVC/PE	1.4	26.1	658.3
295+195	19/2.54	XLPE or PVC/PE	1.6	30.5	908.2
316+116	7/1.72	XLPE or PVC/PE	1.2	16.3	241.5
325+125	7/2.15	XLPE or PVC/PE	1.2	19.1	353.6
335+135	7/2.54	XLPE or PVC/PE	1.4	22.5	493.5
350+150	7/2.92	XLPE or PVC/PE	1.4	25.7	644.1
370+170	19/2.15	XLPE or PVC/PE	1.4	29.7	895.2
395+195	19/2.54	XLPE or PVC/PE	1.6	34.6	1233.5

Production Process

Applications

Residential Service Drops - Connecting utility poles to individual homes for single-phase or split-phase power distribution
Rural Farmstead Electrification - Extending overhead lines to outbuildings, irrigation pumps, and livestock facilities
Temporary Event Power - Deploying overhead drops for outdoor festivals, construction sites, and emergency relief camps
Urban Street Lighting Feeders - Supplying power to lamp posts and traffic signals in congested corridors
Small Commercial Load Connections - Providing three-phase service to shops, workshops, and office units

Packaging & Delivery

Packaging Details: Wooden package optional in various sizes: 0.5×0.5×0.5m, 0.6×0.6×0.6m, 0.7×0.7×0.7m, 1.1×1.1×0.8m, 2.2×2.2×1.8m, or custom sizes according to your requirements.

Delivery Time: Generally 5-10 days if goods are in stock, or 15-20 days for out-of-stock items depending on quantity.

Why Choose Us

Configuration Flexibility - Duplex, triplex, and quadruplex versions available in various conductor cross-sections
Standard Compliance - Manufactured to recognized overhead cable specifications with routine testing
Installation Support - Technical data provided for safe and efficient field installation
Responsive Customization - Accommodate specific conductor sizes, color coding, and drum lengths

Frequently Asked Questions

Are you a trading company or manufacturer?

We are manufacturer.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

What is your terms of payment?

Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment. L/C is also available.
