Aluminium Triplex Wire XLPE Insulated Overhead ABC Cable Three 3 Phase Cable

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	xlpe insulated cables

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	USD 0.2-20 per meter
Packaging Details:	wooden drums
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	XLPE Shielded Cable	Insulation:	XLPE
Rated Voltage:	0.6-1kv	Standard:	IEC 60502-1
Sheath:	PVC	Package:	Wooden Drum
Conductor Type:	Stranded	Application:	Power Distribution, Construction, Underground, Etc.
Highlight:	Aluminium Triplex XLPE insulated cable , Three phase overhead ABC cable , XLPE insulated three phase wire

Product Overview

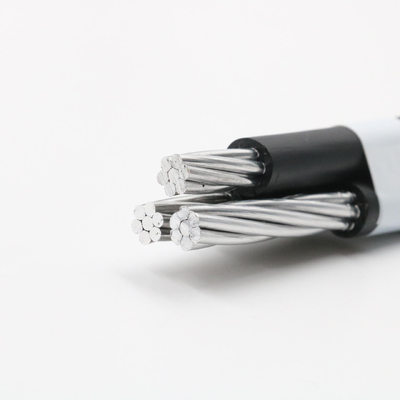

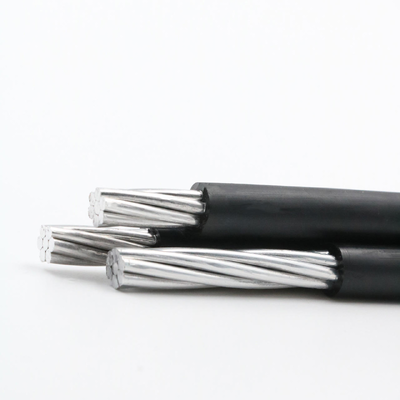

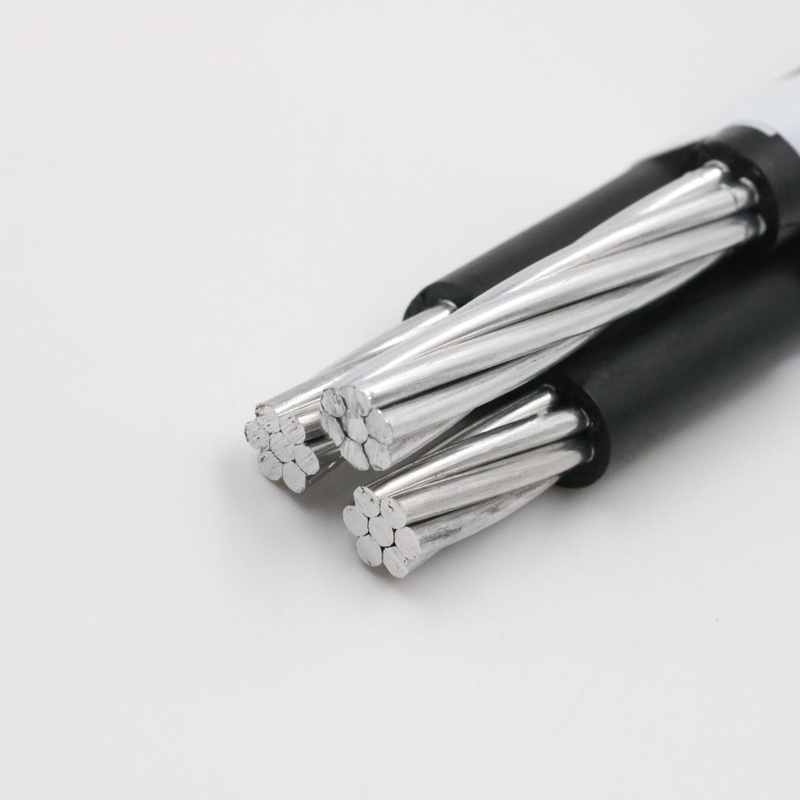

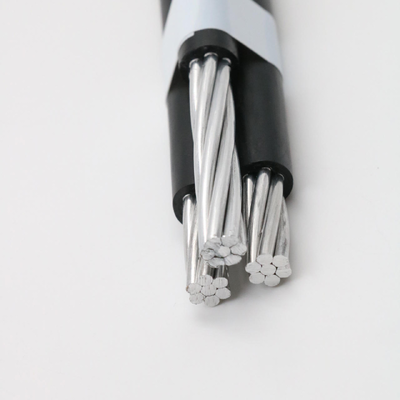

This triplex overhead ABC cable consists of three individually XLPE-insulated aluminium conductors stranded together in a compact bundle, designed specifically for three-phase aerial power distribution. The conductors are manufactured from high-purity aluminium with a stranded construction that provides both electrical conductivity and mechanical flexibility for overhead stringing. Each conductor is covered with a cross-linked polyethylene insulation layer that offers thermal resistance and dielectric strength, enabling reliable performance under varying load conditions.

Technical Specifications

Standard: IEC 60502-1

SPEC mm²	Conductor Structure	Insulation Material	Insulation Thickness (mm)	Approx Overall Diameter (mm)	Approx Weight (kg/km)
116+116	7/1.72	XLPE Or	1.2	12.5	110.1
125+125	7/2.15	XLPE Or	1.2	14.9	163.9
135+135	7/2.54	PVC or PE	1.4	17.5	229.0
150+150	7/2.92	PVC or PE	1.4	20.1	300.0
170+170	19/2.15	PVC or PE	1.4	23.6	423.2
195+195	19/2.54	PVC or PE	1.6	27.6	585.4
216+116	7/1.72	XLPE Or	1.2	14.2	175.8
225+125	7/2.15	XLPE Or	1.2	16.7	258.4
235+135	7/2.54	PVC or PE	1.4	19.7	361.2
250+150	7/2.92	PVC or PE	1.4	22.5	472.1
270+170	19/2.15	PVC or PE	1.4	26.1	658.3
295+195	19/2.54	PVC or PE	1.6	30.5	908.2
316+116	7/1.72	XLPE Or	1.2	16.3	241.5
325+125	7/2.15	XLPE Or	1.2	19.1	353.6
335+135	7/2.54	PVC or PE	1.4	22.5	493.5
350+150	7/2.92	PVC or PE	1.4	25.7	644.1
370+170	19/2.15	PVC or PE	1.4	29.7	895.2
395+195	19/2.54	PVC or PE	1.6	34.6	1233.5

Manufacturing Process

Applications

Three-Phase Rural Distribution - Serving as the main overhead feeder for agricultural areas, where the bundled configuration reduces fault risks from tree contact and animal interference.
Urban Secondary Networks - Deployed in city streets and residential neighbourhoods where limited right-of-way makes compact cable designs advantageous.
Industrial Park Loops - Used for overhead power supply to factories and warehouses, with the triplex design supporting balanced three-phase loads.
Temporary Construction Power - Easily installed and relocated on construction sites, providing three-phase electricity for heavy equipment and lighting.
Renewable Energy Connections - Applied as overhead links between small wind or solar installations and the local grid, leveraging the cable's durability for outdoor exposure.

Packaging & Delivery

Packaging Details

Wooden package optional. Available sizes: 0.5×0.5×0.5m, 0.6×0.6×0.6m, 0.7×0.7×0.7m, 1.1×1.1×0.8m, 2.2×2.2×1.8m, or custom dimensions according to your requirements.

Delivery Time

Standard delivery is 5-10 days for in-stock items, or 15 days for custom orders.

Quality Assurance

Manufacturing Consistency - Our production processes are controlled to maintain uniform insulation thickness and conductor stranding, supported by routine in-house testing.
Material Quality Assurance - We source aluminium wire and XLPE compound from certified suppliers, with material test reports available for traceability.
Engineering Support - Our technical team assists with conductor sizing, sag calculations, and hardware selection based on your specific installation conditions.
Customised Configurations - We can accommodate variations in conductor cross-section, insulation colour, and packaging to meet project-specific requirements.

Frequently Asked Questions

Are you a trading company or manufacturer?

We are manufacturer.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock, or 15-20 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

What is your terms of payment?

Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment. L/C is also available.
