Home ProductsXLPE Insulated Cable

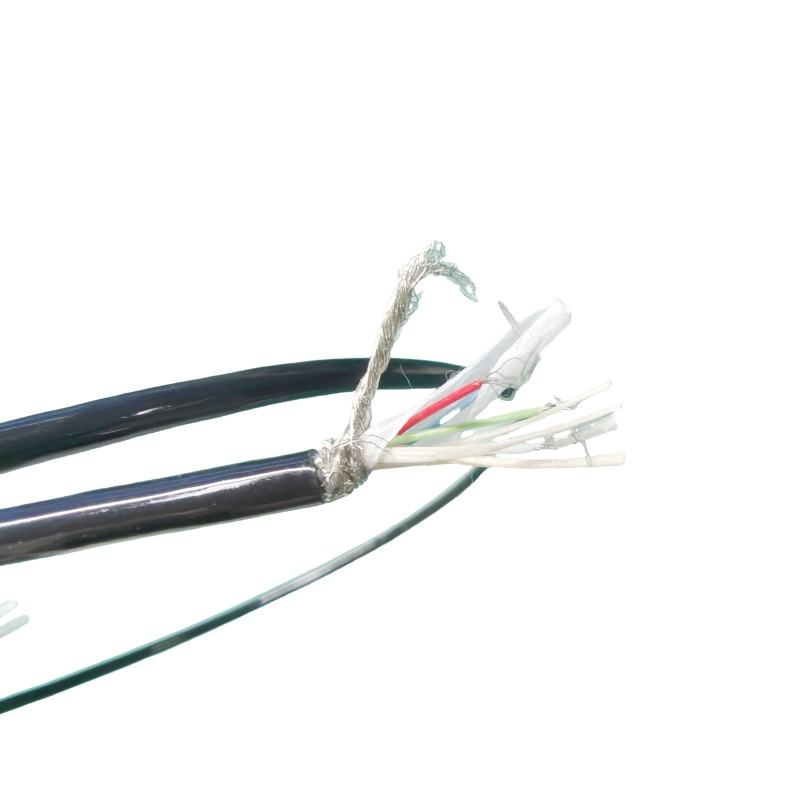

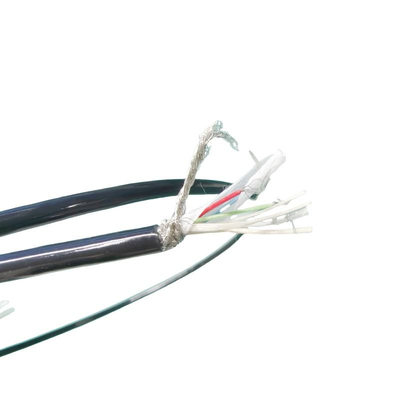

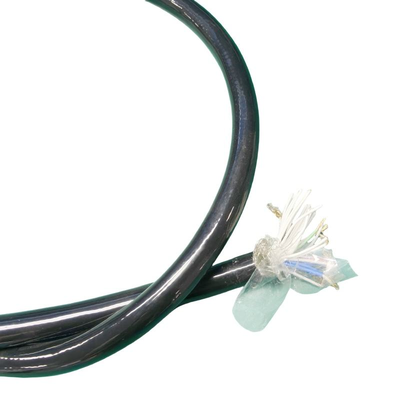

XLPE Insulated Polyethylene Copper Cable XLPE Wires for Electrical Power Low Temperature Resistance Stranded Shipping Equipment

XLPE Insulated Polyethylene Copper Cable XLPE Wires for Electrical Power Low Temperature Resistance Stranded Shipping Equipment

XLPE Insulated Polyethylene Copper Cable XLPE Wires for Electrical Power Low Temperature Resistance Stranded Shipping Equipment
XLPE Insulated Polyethylene Copper Cable XLPE Wires for Electrical Power Low Temperature Resistance Stranded Shipping Equipment
XLPE Insulated Polyethylene Copper Cable XLPE Wires for Electrical Power Low Temperature Resistance Stranded Shipping Equipment
Product Details:
Place of Origin: Henan
Brand Name: Sanwu
Certification: ISO CCC
Model Number: xlpe insulated cables
Payment & Shipping Terms:
Minimum Order Quantity: 1000M
Price: USD 0.2-20 per meter
Packaging Details: wooden drums
Delivery Time: 1-15days
Payment Terms: L/C, T/T
Supply Ability: 200 tons per day
Contact Now
Detailed Product Description
Name: XLPE Shielded Cable Insulation: XLPE
Rated Voltage: 0.6-1kv Standard: IEC 60502-1
Sheath: PVC Package: Wooden Drum
Conductor Type: Stranded Application: Power Distribution, Construction, Underground, Etc.
Highlight:

XLPE insulated copper cable

,

low temperature resistance XLPE wires

,

stranded copper cable for shipping equipment

XLPE Insulated Copper Cable for Marine Power Distribution
This XLPE insulated copper cable is engineered for electrical power distribution in marine and shipping applications where low temperature performance and mechanical durability are critical. The stranded high-purity copper conductor provides excellent electrical conductivity and flexibility for routing in confined shipboard spaces. The cross-linked polyethylene (XLPE) insulation maintains dielectric and mechanical properties under cold ambient conditions encountered in marine environments.
Key Features
  • Low temperature resistance for marine environments
  • Stranded copper conductor for flexibility
  • XLPE insulation maintains properties in cold conditions
  • Protective outer sheath resists moisture, salt spray, and abrasion
  • Designed for fixed installation on vessels and offshore platforms
Technical Standards
IEC 60502-1
Specification Table
SPEC mm² Conductor Structure Insulation Material Insulation Thickness (mm) Approx Overall Diameter (mm) Approx Weight (kg/km)
1*16+1*167/1.72XLPE Or1.212.5110.1
1*25+1*257/2.151.214.9163.9
1*35+1*357/2.54PVC or PE1.417.5229.0
1*50+1*507/2.921.420.1300.0
1*70+1*7019/2.151.423.6423.2
1*95+1*9519/2.541.627.6585.4
2*16+1*167/1.721.214.2175.8
2*25+1*257/2.151.216.7258.4
2*35+1*357/2.541.419.7361.2
2*50+1*507/2.921.422.5472.1
2*70+1*7019/2.151.426.1658.3
2*95+1*9519/2.541.630.5908.2
3*16+1*167/1.721.216.3241.5
3*25+1*257/2.151.219.1353.6
3*35+1*357/2.541.422.5493.5
3*50+1*507/2.921.425.7644.1
3*70+1*7019/2.151.429.7895.2
3*95+1*9519/2.541.634.61233.5
XLPE insulated copper cable product display
Manufacturing Process
Cable manufacturing process step 1 Cable manufacturing process step 2
Applications
  • Shipboard Power Distribution - Supplying electrical energy to auxiliary equipment including deck cranes, mooring winches, and ventilation fans
  • Offshore Platform Auxiliary Systems - Power connections for lighting, pumping, and control systems on offshore structures
  • Port and Harbour Facilities - Fixed installations on docks and container terminals exposed to salt water
  • Cold Climate Vessel Operations - Polar and sub-polar regions requiring flexible, crack-resistant insulation
  • Engine Room and Deck Equipment - Power supply to motors, compressors, and heating systems with vibration resistance
Marine cable application diagram
Packaging & Delivery
Packaging Details
Wooden package optional sizes: 0.5×0.5×0.5m, 0.6×0.6×0.6m, 0.7×0.7×0.7m, 1.1×1.1×0.8m, 2.2×2.2×1.8m, or customized sizes according to your requirements.
Delivery Time
5-10 days for in-stock items, 15 days for custom orders.

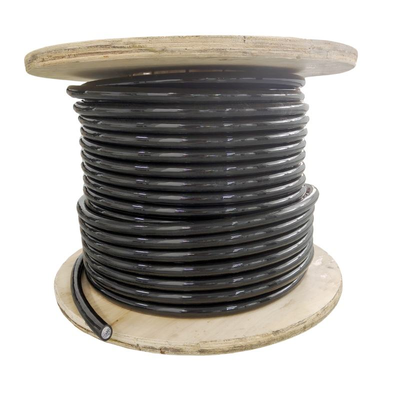

Cable packaging and shipping
Why Choose Our XLPE Cables
  • Marine-Focused Design - Specifically engineered for shipping and offshore applications with low temperature performance
  • Material Integrity - High-quality copper and XLPE compounds from certified suppliers with full traceability
  • Manufacturing Quality Control - Comprehensive electrical and mechanical testing with inspection reports
  • Technical Support - Engineering guidance for cable selection, installation, and environmental suitability
Frequently Asked Questions
Are you a trading company or manufacturer?
We are manufacturer.
How long is your delivery time?
Generally 5-10 days if goods are in stock, or 15-20 days if not in stock, depending on quantity.
Do you provide samples? Is it free or extra?
Yes, we offer samples free of charge but the customer pays the freight cost.
What are your payment terms?
Payment ≤ 1000USD: 100% in advance. Payment ≥ 1000USD: 30% T/T in advance, balance before shipment. L/C also available.
