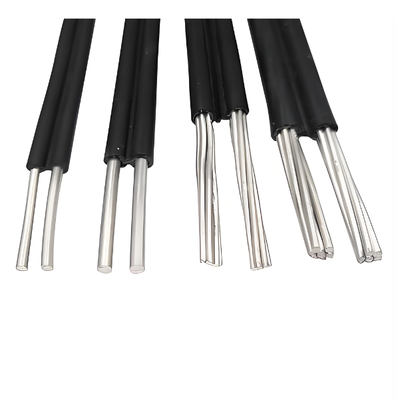

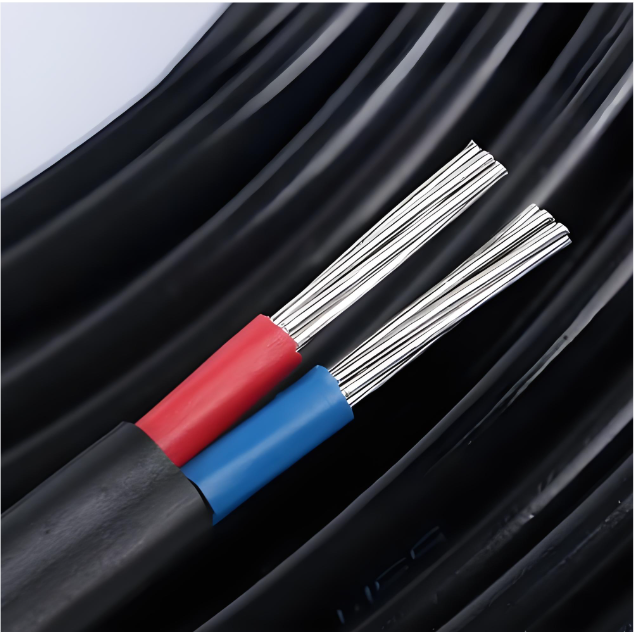

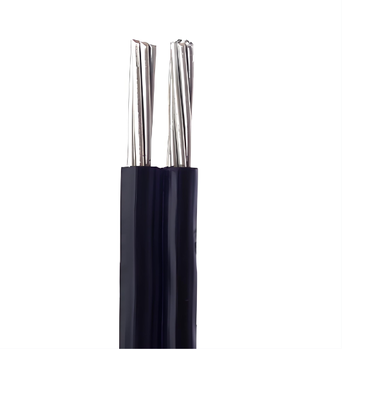

Name: Two-core Copper XLPE Insulated Low Voltage Cable IP67 Rated 0.6/1kV for Overhead and Buried Underground Use
Brand: Luoyang Sanwu Cable Co., Ltd.,
SKU: xlpe insulated cables
Price: 9.20 USD
Availability: InStock

Home Products XLPE Insulated Cable

Two-core Copper XLPE Insulated Low Voltage Cable IP67 Rated 0.6/1kV for Overhead and Buried Underground Use

Product Details:

Place of Origin:	Henan
Brand Name:	Sanwu
Certification:	ISO CCC
Model Number:	xlpe insulated cables

Payment & Shipping Terms:

Minimum Order Quantity:	1000M
Price:	USD 0.2-20 per meter
Packaging Details:	wooden drums
Delivery Time:	1-15days
Payment Terms:	L/C, T/T
Supply Ability:	200 tons per day

Contact Now

Detailed Product Description

Name:	XLPE Shielded Cable	Insulation:	XLPE
Rated Voltage:	0.6-1kv	Standard:	IEC 60502-1
Sheath:	PVC	Package:	Wooden Drum
Conductor Type:	Stranded	Application:	Power Distribution, Construction, Underground, Etc.
Highlight:	Two-core copper XLPE insulated cable , Low voltage cable IP67 rated , XLPE cable for underground use

Product Overview

This two-core low voltage cable features stranded copper conductors insulated with cross-linked polyethylene (XLPE) and is rated at 0.6/1kV for both overhead and direct-buried underground installations. The cable is constructed with a watertight outer sheath that provides IP67 ingress protection, ensuring reliable operation in wet or temporarily submerged conditions.

Technical Specifications

Standard Compliance

IEC 60502-1

Cable Specifications

SPEC mm²	Conductor Structure	Insulation Material	Insulation Thickness (mm)	Approx Overall Diameter (mm)	Approx Weight (kg/km)
116+116	7/1.72	XLPE Or	1.2	12.5	110.1
125+125	7/2.15	XLPE Or	1.2	14.9	163.9
135+135	7/2.54	PVC or PE	1.4	17.5	229.0
150+150	7/2.92	PVC or PE	1.4	20.1	300.0
170+170	19/2.15	PVC or PE	1.4	23.6	423.2
195+195	19/2.54	PVC or PE	1.6	27.6	585.4
216+116	7/1.72	XLPE Or	1.2	14.2	175.8
225+125	7/2.15	XLPE Or	1.2	16.7	258.4
235+135	7/2.54	PVC or PE	1.4	19.7	361.2
250+150	7/2.92	PVC or PE	1.4	22.5	472.1
270+170	19/2.15	PVC or PE	1.4	26.1	658.3
295+195	19/2.54	PVC or PE	1.6	30.5	908.2
316+116	7/1.72	XLPE Or	1.2	16.3	241.5
325+125	7/2.15	XLPE Or	1.2	19.1	353.6
335+135	7/2.54	PVC or PE	1.4	22.5	493.5
350+150	7/2.92	PVC or PE	1.4	25.7	644.1
370+170	19/2.15	PVC or PE	1.4	29.7	895.2
395+195	19/2.54	PVC or PE	1.6	34.6	1233.5

Manufacturing Process

Applications

Low-Voltage Distribution Feeders - Supplying power from pole-mounted transformers to residential properties or small commercial units, using overhead or underground routing as site conditions dictate.
Outdoor Lighting Circuits - Providing power to street lights, park illumination, and security lighting, where the cable may be exposed to weather or buried alongside pathways.
Industrial Plant Auxiliary Supplies - Feeding control panels, pumps, and ventilation equipment in factory yards, where cables may cross both overhead gantries and underground service ducts.
Temporary Construction Installations - Deploying portable overhead lines or trench-laid cables on building sites, with IP67 rating ensuring continued operation during rain and ground water exposure.
Renewable Energy System Connections - Linking small-scale solar arrays or wind turbines to inverters and grid interfaces, with the cable routed overhead or buried for aesthetic and safety reasons.

Packaging & Delivery

Packaging Details

Wooden package optional. Available sizes: 0.5*0.5*0.5m, 0.6*0.6*0.6m, 0.7*0.7*0.7m, 1.1*1.1*0.8m, 2.2*2.2*1.8m, or suitable meters according to your needs.

Delivery Time

Generally 5-10 days if goods are in stock, or 15 days for custom orders.

Why Choose Us

Strict Quality Assurance - Our production processes are subject to continuous monitoring, with routine electrical and mechanical tests performed to verify cable integrity and standard compliance.
Material Sourcing Transparency - Copper rod and XLPE compound are procured from accredited suppliers, with material certificates maintained for full traceability.
Application Guidance - We provide detailed installation recommendations, including minimum bending radii, pulling tension limits, and suitable accessories for overhead and underground use.
Flexible Configuration - We offer customised lengths, sheath colours, and packaging options to match project-specific requirements and simplify on-site handling.

Frequently Asked Questions

Are you trading company or manufacturer?

We are manufacturer.

How long is your delivery time?

Generally it is 5-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock, depending on quantity.

Do you provide samples? Is it free or extra?

Yes, we could offer the sample for free charge but do not pay the cost of freight.

What is your terms of payment?

Payment <= 1000USD, 100% in advance. Payment >= 1000USD, 30% T/T in advance, balance before shipment. L/C is also available.
